Spare parts > Castelgarden > Front mowers > X1 X1 (2009) > Engine
Back to

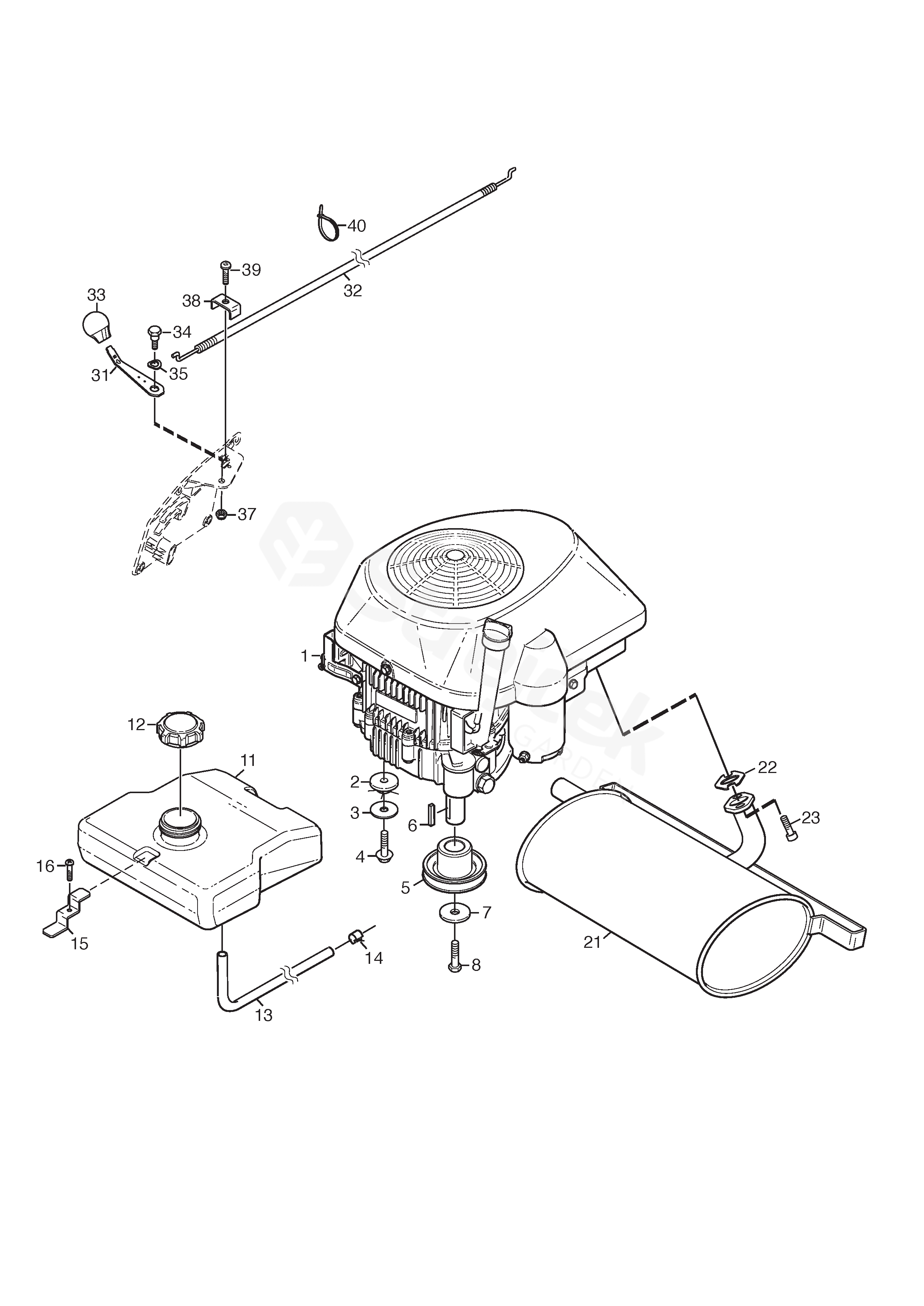

Engine
X1 X1 (2009)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For X1 (2009)
1 Engine Wm 12,5 Hp
ST. WM12 		1134-9504-01
2 Bushing 1134-6582-01
3 Washer 9699-0105-02
4 Screw 9955-3738-16
5 Belt pulley assy 1134-7855-01
6 Key 9600-0251-01
7 Washer 1134-5017-01
8 Screw 9987-5332-16
11 Fuel Tank 1134-6568-01
12 Fuel Tank Cap 1134-5532-01
13 Fuel Tube
L = 460 mm 		1134-2975-05
14 Hose clamp 9578-0023-02
15 Bracket 1134-7048-01
16 Screw 9838-8822-19
21 Muffler Assy 1134-6719-01
22 Gasket 1134-0433-00
23 Screw 1134-4930-01
24 Screw 9945-0816-16
31 Throttle Cable 1134-7122-01
32 Throttle Cable 1134-1597-14
33 Knob 1134-7284-01
34 Screw 1134-0240-00
35 Washer 9694-0001-00
37 Nut 9747-0831-02
38 Wire Clamp 9500-9991-00
39 Screw 9838-9516-12
40 Cable Holder 9579-0003-00
