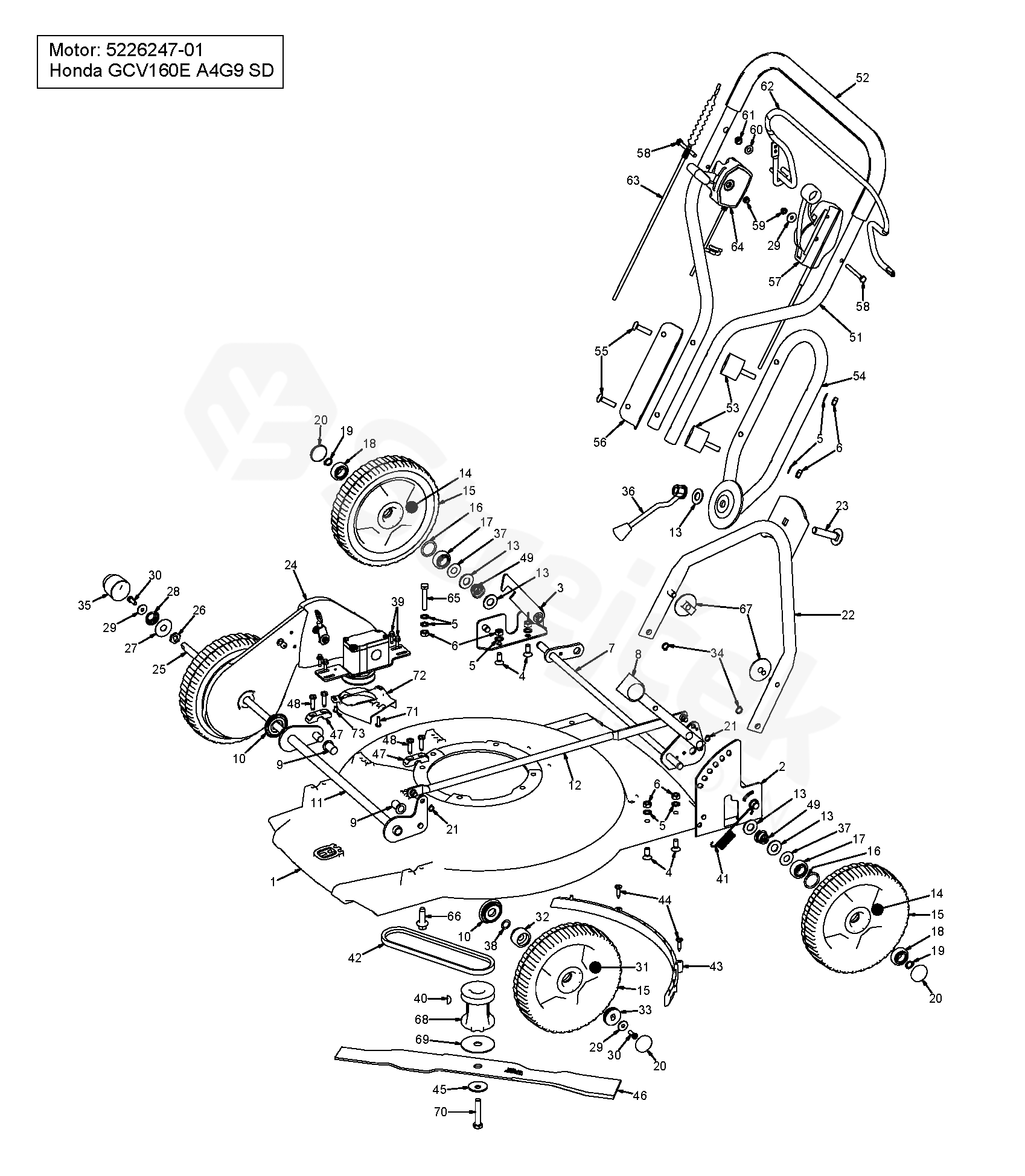

Spare parts - Partlist - WB53 SE WB53 SE, 966978201, 2009-02 - FRAME & ENGINE

Everything for your machines

WB53 SE WB53 SE, 966978201, 2009-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For WB53 SE, 966978201, 2009-02

1	CHASSIS	522432301
2	INDEX PLATE ASSY	503249002
3	DRŽÁK RUKOJETI KOMPL.	503265802
4	SCREW SLCSFM	504457001
5	WASHER	504458001
6	NUT	504457201
7	REAR AXLE ASSY	503258101
8	KNOB	504464701
9	CASING	502898102
10	BUSHING	504463601
11	FRONT AXLE	503269201
12	ROD ASSY	503249402
13	PODLOŽKA	504457301
14	KOLO KOMPL.	503275402
15	PNEUMATIKA	510109601
16	ROZPĚRNÝ KROUŽEK	504461801
17	BALL BEARING	503242901
18	BALL BEARING	502882701
19	CIRCLIP	504458301
20	HUB CAP	503275101
21	CLAMP RING SGA	504458101
22	HANDLE	503283701
23	BOLT	504456601
24	GEARBOX ASSY	503329802
25	DRIVE SHAFT ASSY	503271801
26	DRIVER	504461301
27	PODLOŽKA	504460901
28	PRUŽINA	503332301
29	PODLOŽKA	504459901
30	SCREW IHSCM	504456701
31	WHEEL ASSY	503275502
32	BUSHING	503276401
33	BUSHING	503276201
34	CLAMP RING SGA	504458201
35	HUB CAP	504465101
36	LEVER ASSY	503298301
37	PODLOŽKA	504457601
38	PODLOŽKA	504459801
39	SCREW	504467601
40	WOODRUF KEY	504460501
41	PRUŽINA	503257601
42	BELT	502945401
43	MULCH WALL	503243101
44	SCREW ITXPANT	504456501
45	PRUŽINA	503332501
46	MOWER BLADE	502881401
47	BRACKET	504463802
48	SCREW ITXPANM	504457101
49	PRUŽINA	503333001
50	HANDLE ASSY	503316302
51	HANDLE ASSY	502906402
52	GRIP	523052801
53	ANTI-VIBRATION MOUNT	503312501
54	HANDLE ASSY	502903502
55	SCREW CRPANM	504461501
56	DESKA	503311702
57	DRIVE CONTROL	503309801
58	BOLT	502882301
59	LOCKING NUT GALVANIZED	504456101
60	WASHER	504459201
61	BUSHING	503320901
62	BAIL ARM ASSY	503311102
63	CABLE	503311201
64	THROTTLE CONTROL	503313001
65	BOLT	504466201
66	SCREW	502882901
67	ADJUSTMENT WHEEL	504464502
68	BLADE SUPPORT ASSY	503259201
69	PODLOŽKA	503259401
70	BOLT	504466601
71	SCREW	522635701
72	BELT GUARD	522546301
73	SCREW ITXPANM	522635601
