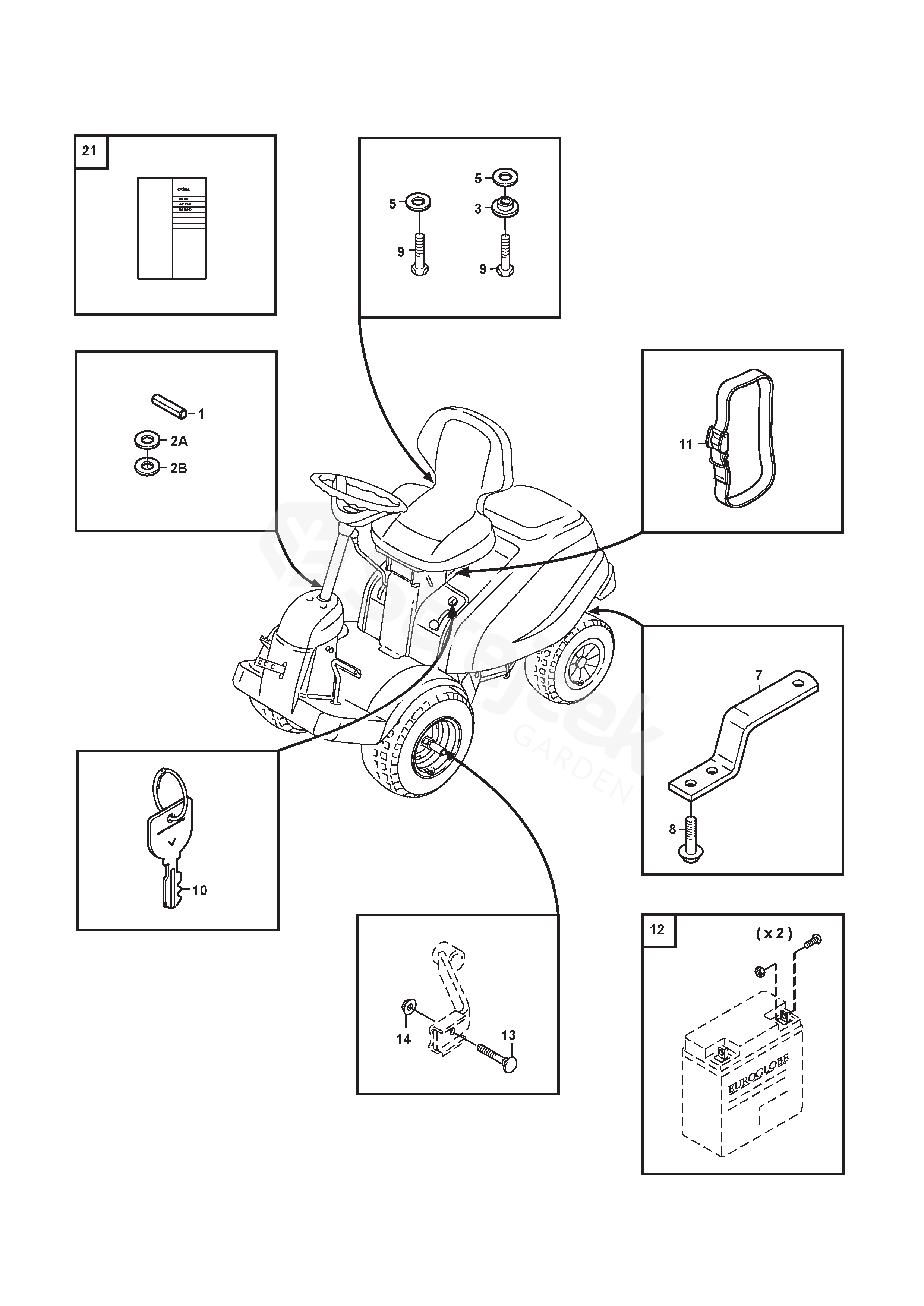

XM 140 HD XM 140 HD (2007) [13-2782-37]
>
Assembly parts
Back to
XM 140 HD
XM 140 HD (2007) [13-2782-37]
Assembly parts
XM 140 HD
XM 140 HD (2007) [13-2782-37]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XM 140 HD (2007) [13-2782-37]
1
Locating Pin
9595-0262-00
2
Washer
0.5 mm
9699-0103-02
3
Flange Washer
1134-4185-01
5
Washer
9699-0056-02
7
Tow Bar
1134-4627-01
8
Screw
9959-0820-16
9
Screw
9997-0820-16
10
Ignition Key
1134-6125-01
11
Battery Strap
1134-5245-01
12
Screw
1134-6113-01
13
Screw
9898-1035-16
14
Nut
9739-1031-22
21
Owner’s Manual
8211-0081-70
