Castelgarden
>
Lawn Tractor
>
TC 6/63 TC 6/63 (2004)
>
Steering
Back to
TC 6/63
TC 6/63 (2004)
Steering
TC 6/63
TC 6/63 (2004)

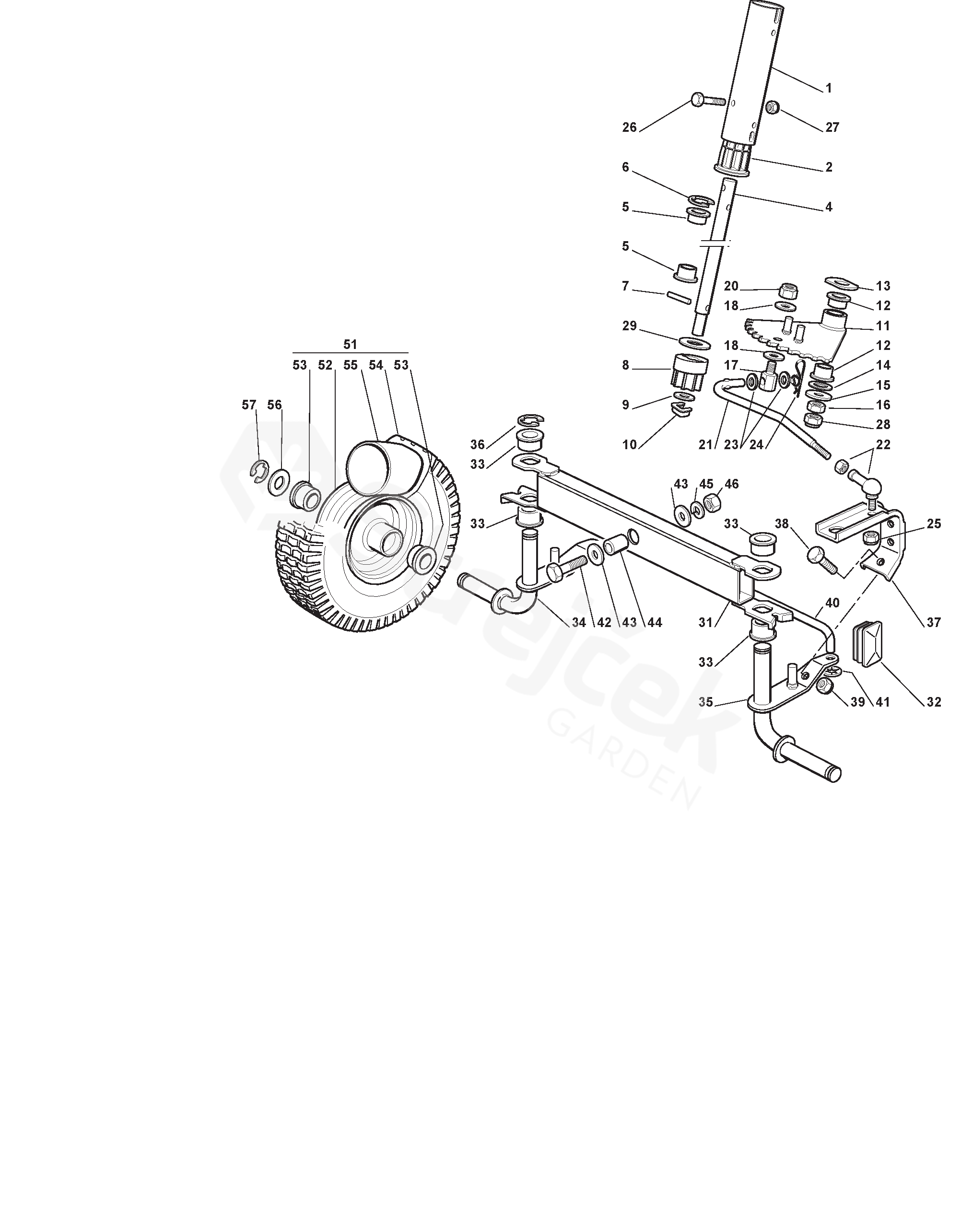

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TC 6/63 (2004)
1
Columm Extension
127340305/1
2
Bushing
127047005/1
4
Steering Column
127520052/0
6
Benzing Ring
112001010/0
7
Dowel pin
112622650/0
8
Pinion
127570050/0
9
Washer
112521370/0
10
Plate
112436030/0
11
Ring Gear
384735553/1
12
Bushing
127047004/0
13
Washer
327670054/0
14
Antifriction Washer
322672152/0
15
Washer
112523065/0
16
Nut
112293200/0
17
Pin
125510056/0
18
Washer
325670008/1
20
Nut
112156602/0
21
Steering Control Rod
127034066/1
22
Joint
122746601/0
24
Cotter Pin
124487998/0
25
Nut
112155000/0
26
Screw
112689515/0
27
Nut
112154510/0
31
Front Wheel Axle
384034059/0
32
Cap
118737852/0
34
Right Stub Axle
384230405/0
35
Left Stub Axle
384230407/0
36
Ring (Benzing)
112000970/0
37
Tie Rod
327787041/0
38
Screw
112793102/0
40
Tie Rod
127840051/0
41
Crown Fastener
112604899/0
42
Screw
112692695/0
43
Washer
112523100/0
44
Spacer
125160016/0
45
Grower
112587100/0
46
Nut
112295300/0
51
Front Wheel
184680056/1
52
Front Rim Ass.Y
184044002/0
53
Bushing
127045070/0
54
Tyre 4.10/3.50-4 KINGS
127590058/0
55
Inner Tube
127590056/0
56
Washer
112521390/0
