Castelgarden
>
Lawn Tractor
>
PGX 140 HD PGX 140 HD (2013)
>

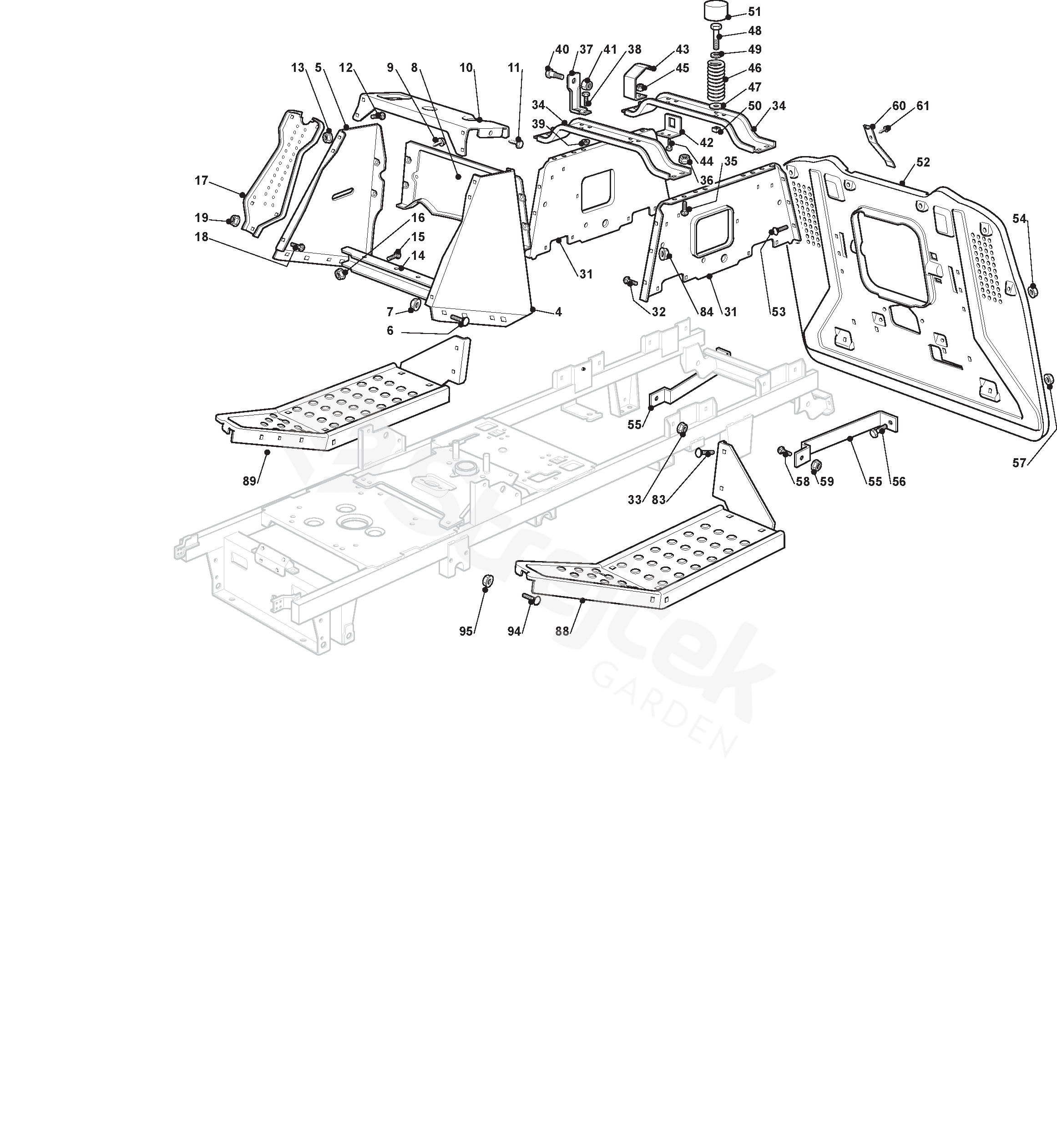

Chassis Low End
Back to
PGX 140 HD
PGX 140 HD (2013)
Chassis Low End
PGX 140 HD
PGX 140 HD (2013)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PGX 140 HD (2013)
4
Left Dashboard Support
325785243/1
5
Right Dashboard Support
325785245/0
6
Screw
112818690/0
7
Nut
112293201/0
8
Rear Dashboard Support
From 01-September-2013
382785151/1
9
Screw
112735110/0
10
Central Dashboard Support
325785255/0
11
Screw
112735110/0
12
Screw
112815200/0
13
Nut
112292102/0
14
Support
325785241/0
15
Screw
112815200/0
16
Nut
112292102/0
17
Front Dashboard Support
382785153/1
18
Screw
112815200/0
19
Nut
112292102/0
31
Seat Support
325785249/0
32
Screw
112815200/0
33
Nut
112292102/0
34
Seat Support
325785257/1
35
Screw
112818690/0
36
Nut
112293201/0
37
Bracket
325755039/0
38
Screw
112792611/0
39
Nut
112293201/0
40
Fulcrum Pin
122524970/2
41
Nut
112155010/0
42
Bracket
325755043/0
43
Spring
325430253/0
44
Screw
112789000/0
45
Nut
112154330/0
46
Spring
125430257/1
47
Washer
112523070/0
48
Screw
112760515/0
49
Washer
122671653/0
50
Nut
112360425/0
51
Cap
325122000/2
52
Plate
382547041/1
53
Screw
112792611/0
54
Nut
112293201/0
55
Plate Stiffening
325650119/0
56
Screw
112792611/0
57
Nut
112293201/0
58
Screw
To 01-September-2013
112792611/0
59
Nut
112293201/0
60
Spring
To 01-September-2012
127430554/0
61
Screw
112735110/0
83
Screw
112792611/0
84
Nut
112293201/0
88
Left Footboard Support
382510079/0
89
Right Footboard Support
382510077/0
94
Screw
112815200/0
95
Nut
112292102/0
