Spare parts > Castelgarden > Lawn Tractor > PGX 160 HD PGX 160 HD (2020) > Electrical Parts
Back to
Electrical Parts

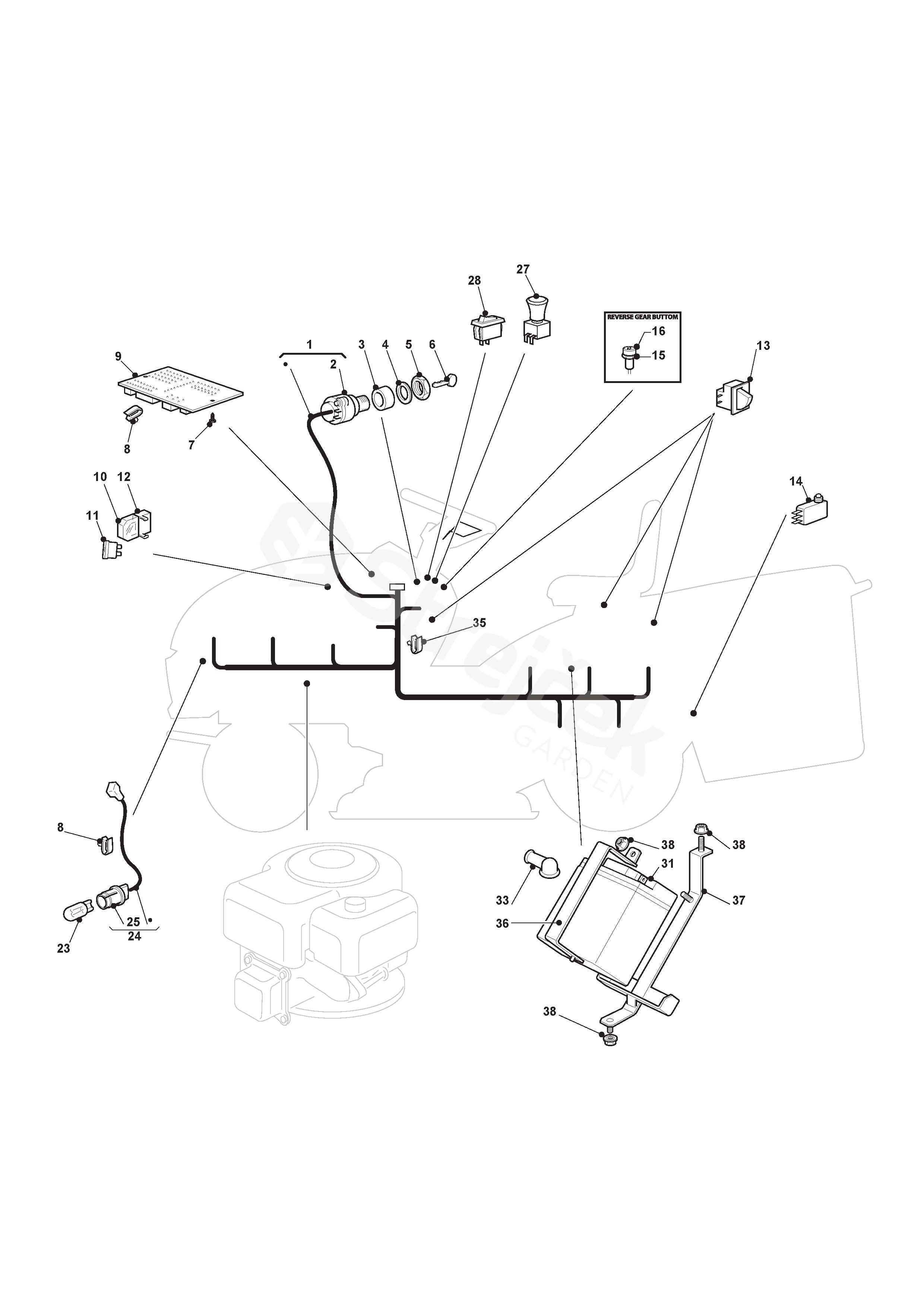

PGX 160 HD PGX 160 HD (2020)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PGX 160 HD (2020)
1 Cables Ass.Y - ISO 182040201/0
2 Starting Switch 118450072/0
3 Spacer 118550136/0
4 Washer 118550135/0
5 Ring Nut 118400862/0
6 Starting Key 118210022/0
7 Screw 112727810/0
9 Electronic Card (1 Led) 125722443/0
10 Cover 133215000/0
11 Fuse 25 A 133340036/0
12 Fuse carrier 133500007/0
13 Microswitch 119410622/1
14 Microswitch 119410605/1
15 Screwed Ring 325256250/0
16 Push Button Reverse Gear 325605003/0
23 Lamp Holder 133500030/0
24 Headlight Cable 182040073/0
27 Clutch Switch 118450074/0
28 Headlight Switch 118450084/0
31 Battery 118120007/0
33 Protection 118564861/2
35 Fairlead 133320506/0
36 Clamp 327772099/1
37 Battery Support 382785191/0
38 Nut 112155000/0
