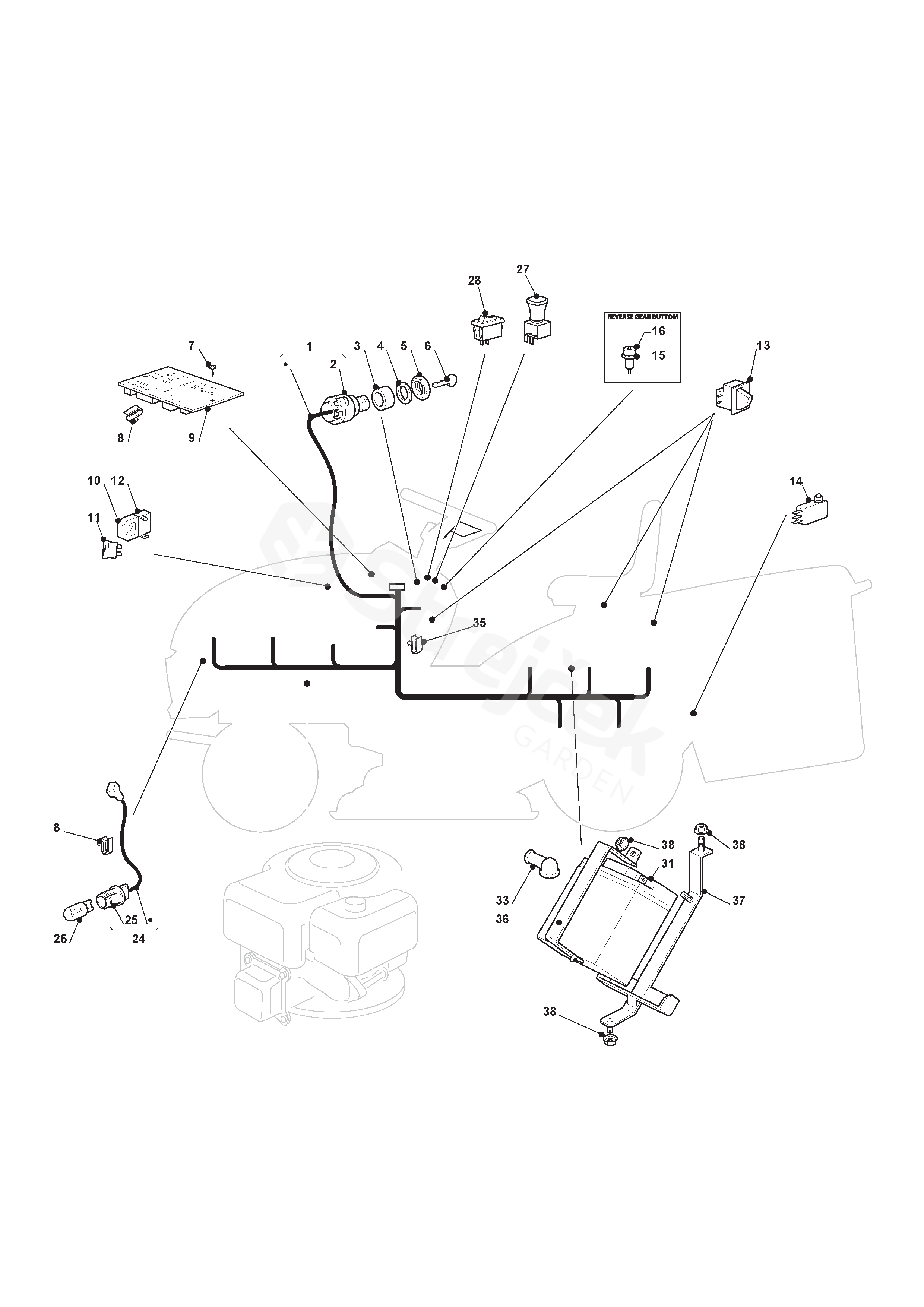

Spare parts > Castelgarden > Lawn Tractor > XG 175 HD XG 175 HD (2013) > Electrical Parts
Back to
Electrical Parts
XG 175 HD XG 175 HD (2013)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For XG 175 HD (2013)
1 Cables Ass.Y 182040154/0
2 Starting Switch 118450072/0
3 Spacer 118550136/0
4 Washer 118550135/0
5 Ring Nut 118400862/0
6 Starting Key 118210022/0
7 Screw 112727810/0
9 Electronic Card (6 Led) 125722442/0
10 Cover 133215000/0
11 Fuse 10 A 133340040/0
12 Fuse carrier 133500007/0
13 Microswitch 119410606/0
14 Microswitch 119410605/1
15 Screwed Ring 325256250/0
16 Push Button Reverse Gear 325605003/0
24 Headlight Cable
for Lamp Version 		182040073/0
25 Lamp Holder 133500030/0
26 Lamp For Lights 118459100/0
27 Clutch Switch
Red 		118450073/0
28 Headlight Switch 118450060/1
31 Battery 118120002/1
33 Protection 118564861/1
35 Fairlead 133320506/0
36 Clamp 327772099/1
37 Battery Support 382785191/0
38 Nut 112155000/0
