Spare parts
Everything for your machines
Spare parts
>
Castelgarden
>
Lawn Tractor
>
XJ 140 HD XJ 140 HD (2006) [299961376/06]
>
Body
Back to
XJ 140 HD
XJ 140 HD (2006) [299961376/06]
Body
XJ 140 HD
XJ 140 HD (2006) [299961376/06]

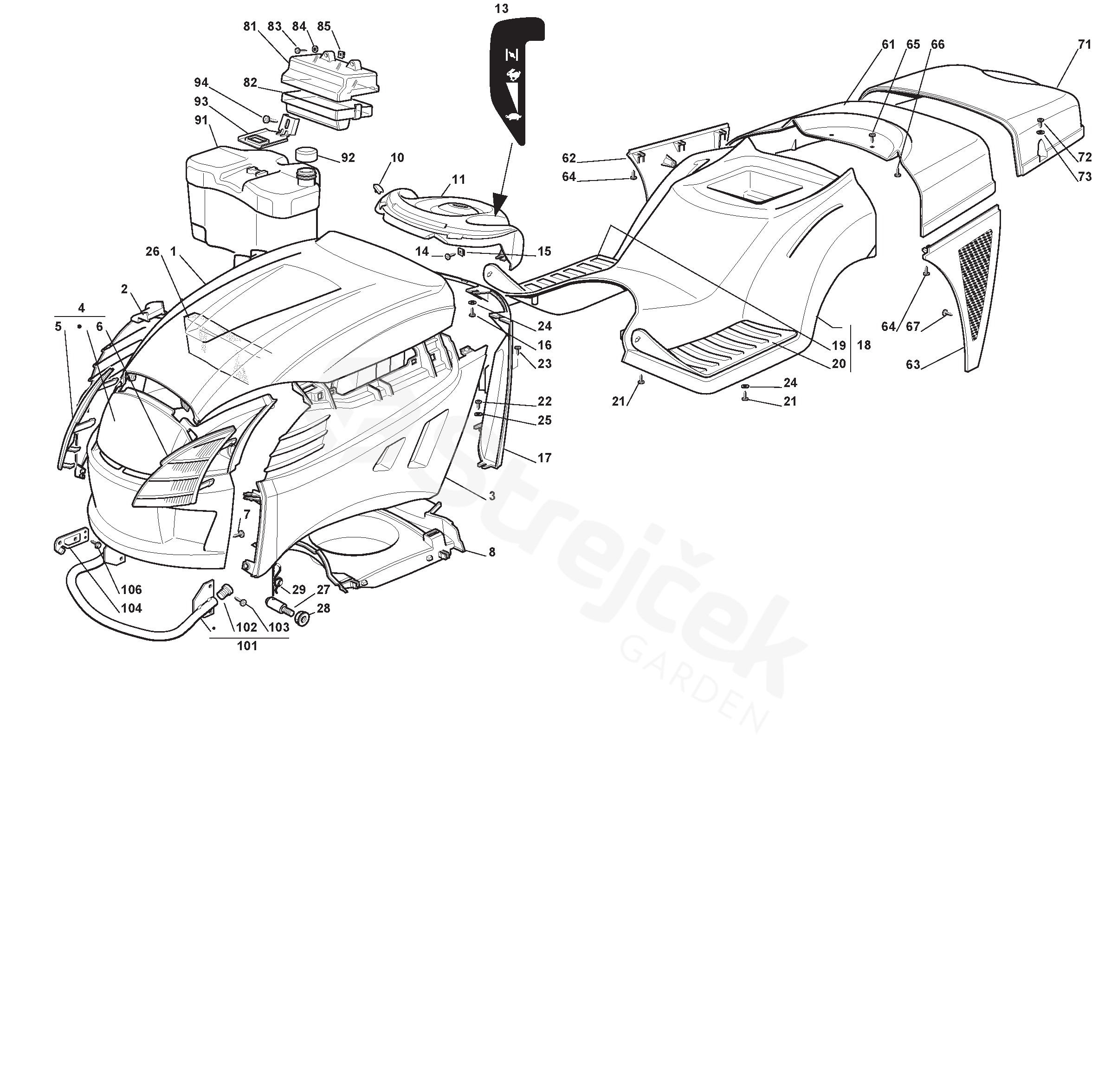

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XJ 140 HD (2006) [299961376/06]
1
Red Upper Bonnet
325076858/0
2
Hood, Right
325207120/0
3
Hood, Left
325207121/0
4
Hood, Front
382394607/0
5
Right Light Grill
325410874/0
6
Left Light Plastic Cover
325410875/0
7
Screw
112735405/0
8
Conveyor
325108025/0
10
Grommet
125260000/0
11
Dashboard
125120179/0
13
Throttle Label
114357209/1
14
Screw
112735110/0
15
Plate
112437502/0
16
Screw
112735402/0
17
Black Dashboard Support
325785053/1
18
Red Hy.Tcj Complete Footb. Cov
382110007/3
19
Right Foortboard Cover Junior
125110264/1
20
Left Footboard Cover
125110263/1
21
Screw
112735410/0
23
Screw
112728680/0
24
Washer
112523040/0
25
Washer
112523050/0
27
Pin
125510068/0
28
Nut
112293201/0
29
Cotter Pin
124487998/0
61
Red Fix Grassc. Cover Tcj
325110179/1
62
Right Grassc. Side Protect. Junior Grey
325600061/0
63
Left Guard, Black
325600065/0
71
Red Mobile Grassc. Cover Tcj
325110178/2
72
Screw
112729601/0
73
Washer
112521331/0
81
Upper Guard
125600020/0
82
Lower Guard
125600021/1
83
Screw
112728460/0
84
Washer
112521320/0
91
Fuel Tank
125735116/2
92
Cap
125795000/0
93
Support
325774258/0
101
Muffler Protection
382869019/0
102
Cap
118737857/0
103
Screw
112734995/0
104
Plate
325547109/1
106
Screw
112731580/0
