Spare parts > Castelgarden > Lawn Tractor > TC 15 5/102 TC 15 5/102 (2001) > Body
Back to

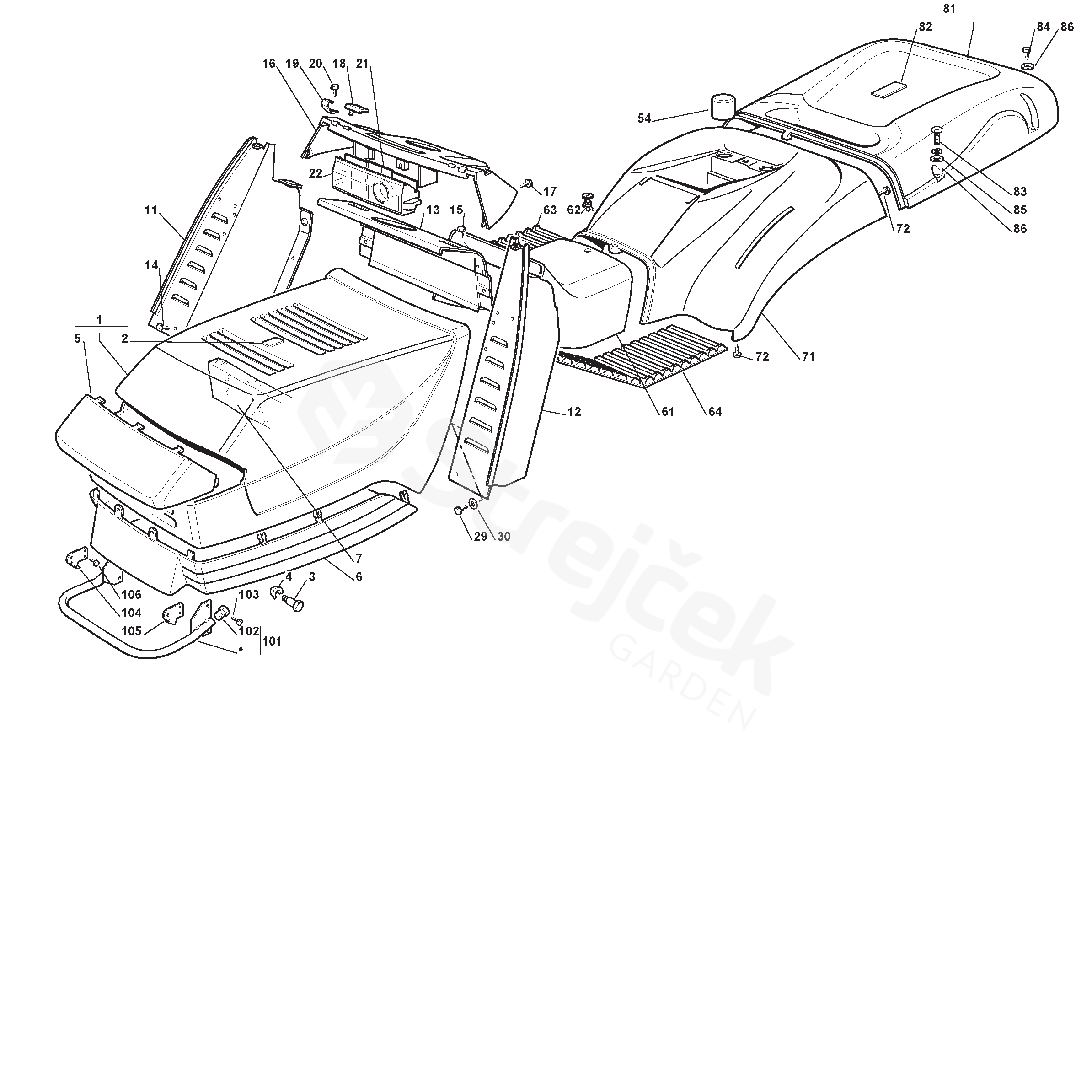

Body
TC 15 5/102 TC 15 5/102 (2001)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TC 15 5/102 (2001)
1 Upper Engine Hood Red 382076802/2
2 Plate Red 125547016/1
3 Pin 125510023/1
4 Plate 112436050/0
5 Headlight Ass.Y 125410858/0
6 Lower Engine Hood 125076802/0
7 Intake Separator 125730000/0
11 Right Dashboard Support 382785022/8
12 Left Dashboard Support 382785021/8
13 Central Dashboard Support 382785137/0
14 Screw 112735110/0
16 Black Dashboard 125120152/1
17 Screw 112728440/0
18 Grommet 125260000/0
19 Coupling Spring 125430215/0
21 Electronic Card Protection 125600007/0
22 Protection 125600051/0
29 Screw 112731350/0
30 Washer 112521330/0
54 Cap 325122000/2
61 Red Central Cover (Mecc) 125110136/0
62 Stake 125580020/0
63 Right Footboard Cover 125110270/0
64 Left Footboard Cover 125110260/2
71 Red Wheels Cover 325109702/1
72 Screw 112735402/0
81 Red Grass-catcher Cover 182110207/0
83 Screw 112674701/0
84 Screw 112729601/0
85 Grower 112582101/0
86 Washer 112521331/0
101 Muffler Tube Guard 382869006/1
102 Push rod 118566110/0
103 Screw 112734995/0
104 Plate 325547089/0
105 Plate 325547091/0
106 Screw 112731580/0
