Castelgarden
>
Lawn Tractor
>
XHT 220 4WD XHT 220 4WD (2011)
>
Electrical Parts
Back to
XHT 220 4WD
XHT 220 4WD (2011)

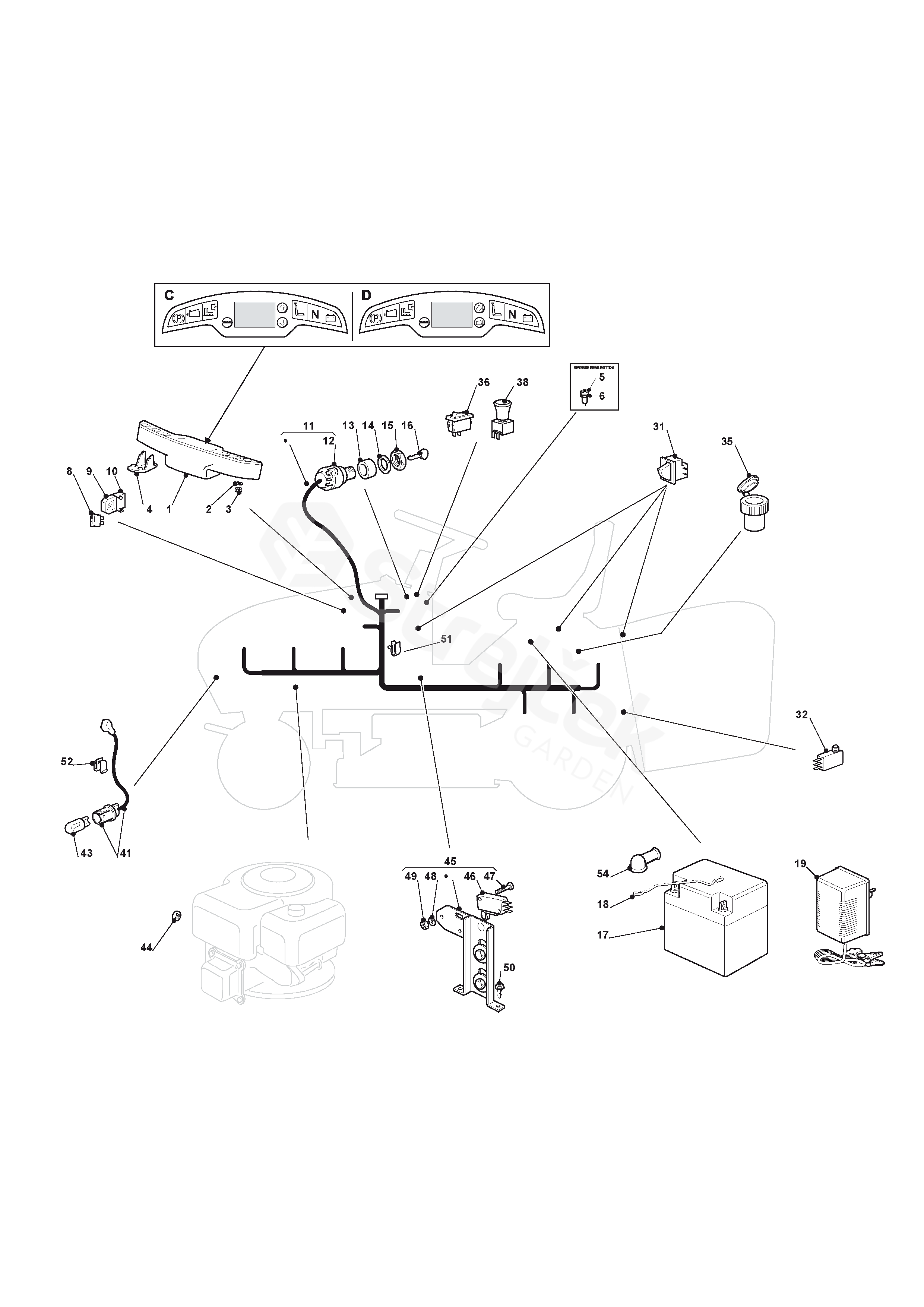

Electrical Parts
XHT 220 4WD
XHT 220 4WD (2011)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XHT 220 4WD (2011)
1
Card + guard (C)
382722423/1
2
Washer
112521320/0
3
Nut
112154330/0
4
Buzzer Sound Amplifier
325031501/0
5
Push Button Reverse Gear
325605003/0
6
Screwed Ring
325256250/0
8
Fuse 15 A
133340035/0
9
Cover
133215000/0
10
Fuse carrier
133500007/0
12
Starting Switch
118450072/0
13
Spacer
118550136/0
14
Washer
118550135/0
15
Ring Nut
118400862/0
16
Starting Key
118210022/0
17
Battery
118120057/0
18
Spring
125430230/0
31
Microswitch
119410622/1
32
Microswitch
119410605/1
35
Cigarette Lighter Socket
118450200/0
36
Headlight Switch
118450084/0
38
Clutch Switch
118450074/0
41
Headlight Cable
For Lamp Version
182040073/0
43
Lamp For Lights
NOT for models with LED Light
118459100/0
44
Nut
112361005/0
45
Switch Ass.Y
382394853/0
46
Microswitch
119410609/1
47
Screw
112735602/0
48
Grower
112581100/0
49
Nut
112290791/0
50
Screw
112735110/0
51
Fairlead
133320506/0
52
Fairlead
133320504/0
54
Protection
118564864/1
