Spare parts > Castelgarden > Lawn Tractor > XHT 220 4WD XHT 220 4WD (2012) [2T1425273/12] > Blades Engagement
Back to

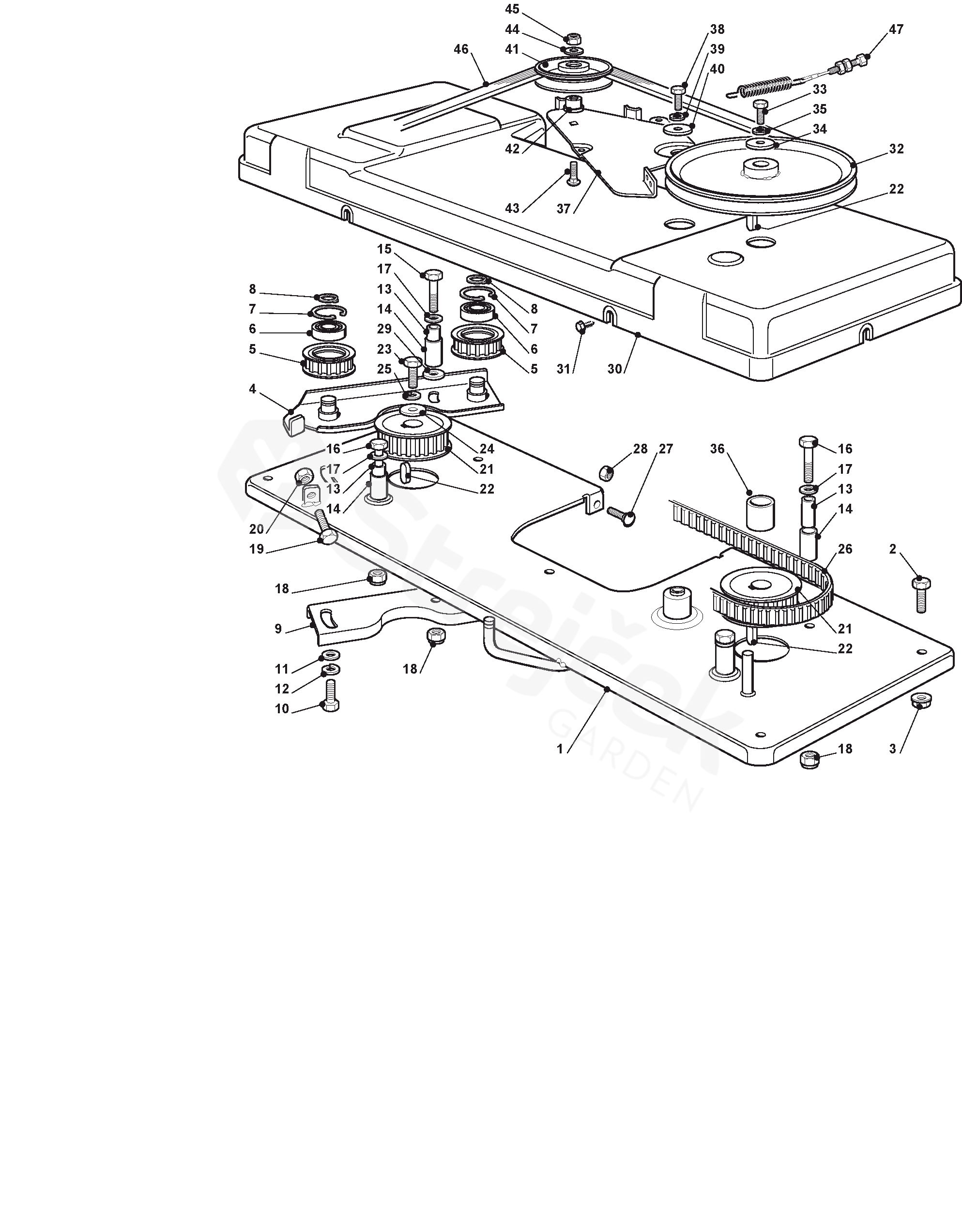

Blades Engagement
XHT 220 4WD XHT 220 4WD (2012) [2T1425273/12]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For XHT 220 4WD (2012) [2T1425273/12]
1 Transmission Plate
Without electromagnetic clutch 		382547003/2
2 Screw 112792611/0
3 Nut 112293201/0
4 Support 382785084/2
5 Toothed Pulley 125601559/1
6 Bearing 119216033/1
7 Seeger 112610800/0
8 Seeger 112609200/0
9 Pulley Stiffening 325650037/1
10 Screw 112793102/0
11 Washer 112521350/0
12 Grower 112583500/0
13 Spacer 125160003/1
14 Bushing 125038000/0
15 Screw 112691700/0
16 Screw 112691200/0
18 Nut 112155000/0
19 Screw 112793900/0
20 Nut 112293200/0
21 Pulley 125601560/0
22 Feather 112139480/0
24 Washer 125670007/0
26 Belt 135065605/0
27 Screw 112815200/0
28 Nut 112292102/0
29 Washer 112523060/0
30 Case 325060128/0
31 Screw 112735110/0
32 Pulley 125601550/0
36 Spacer 125160002/1
37 Brake Lever 325318115/2
40 Washer 112523070/0
41 Pulley 325601599/0
42 Spacer 125160079/0
43 Screw 112818900/0
46 Belt 135062811/0
47 Engagging Cable 182004608/0
