Spare parts > Castelgarden > Lawn Tractor > CG 12,5/98 CG 12,5/98 (2008) [299958263/HAN] > Guards And Conveyor
Back to

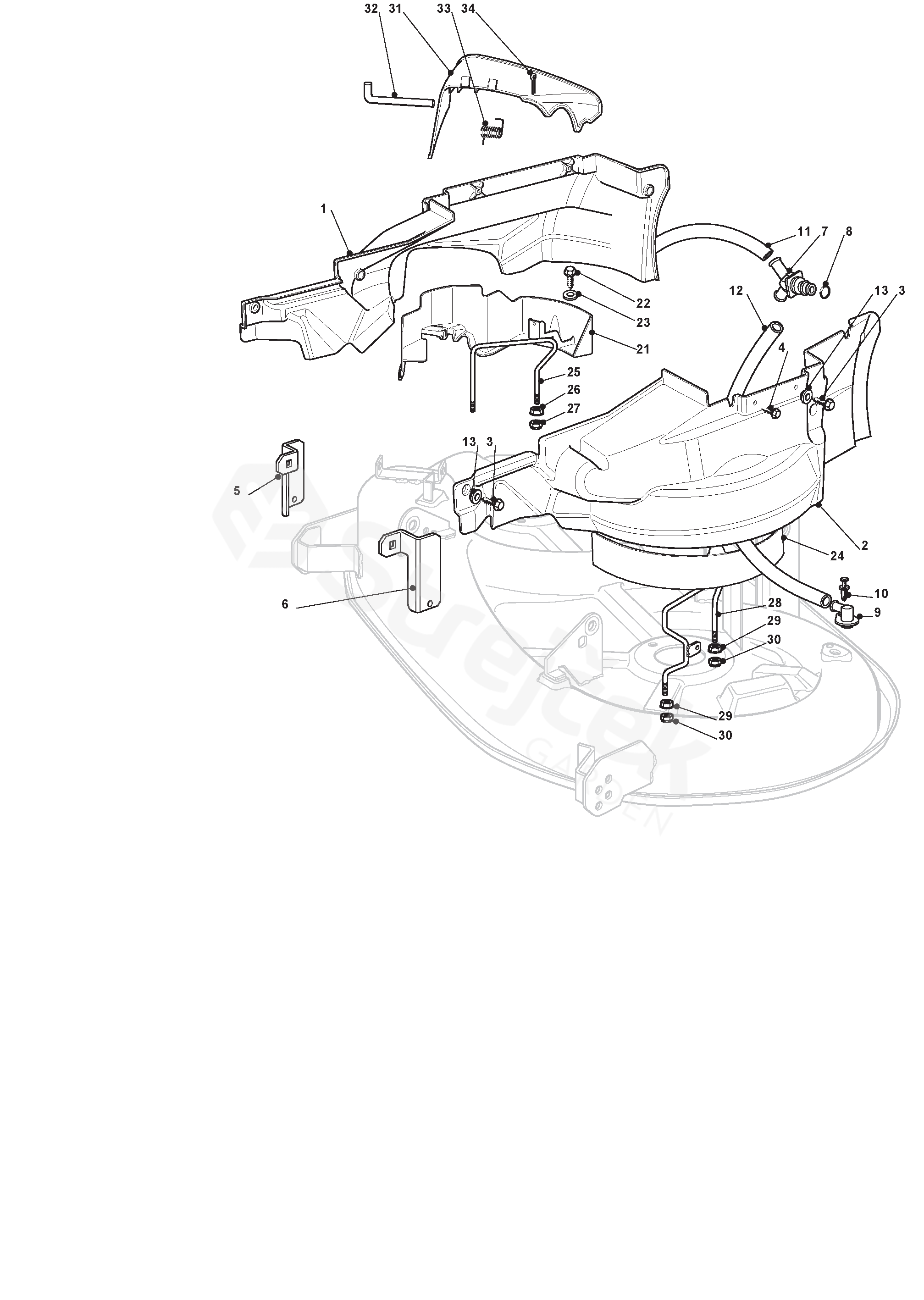

Guards And Conveyor
CG 12,5/98 CG 12,5/98 (2008) [299958263/HAN]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CG 12,5/98 (2008) [299958263/HAN]
1 Right Belt Protection Carter 325060129/0
2 Left Belt Protection 325060130/0
3 Screw 112735122/0
4 Screw 112728535/0
5 Bracket 325774381/0
6 Bracket 325774383/0
7 Water Hose Connection 325033066/0
8 Or Ring 119035000/0
9 Water Hose Connection 325033065/0
10 Rivet 112500030/0
11 Washing Tube 325869069/0
12 Washing Tube 325869068/0
13 Spacer 325160039/0
21 Right Belt Protection Carter 325060131/0
22 Screw
From 01-September-2003 		112729601/1
23 Washer 112521330/0
24 Left Belt Protection 325060132/0
25 Belt Guide 125270313/0
26 Nut 112293201/0
27 Nut 112155000/0
28 Belt Guide 125270327/0
29 Nut 112293201/0
30 Nut 112155000/0
31 Exit Protection 325600081/0
32 Fulcrum Pin 125510073/0
33 Spring
From 01-September-2008 		125430242/1
34 Cotter Pin 112141418/0
