Castelgarden
>
Trimmer/Brushcutter
>

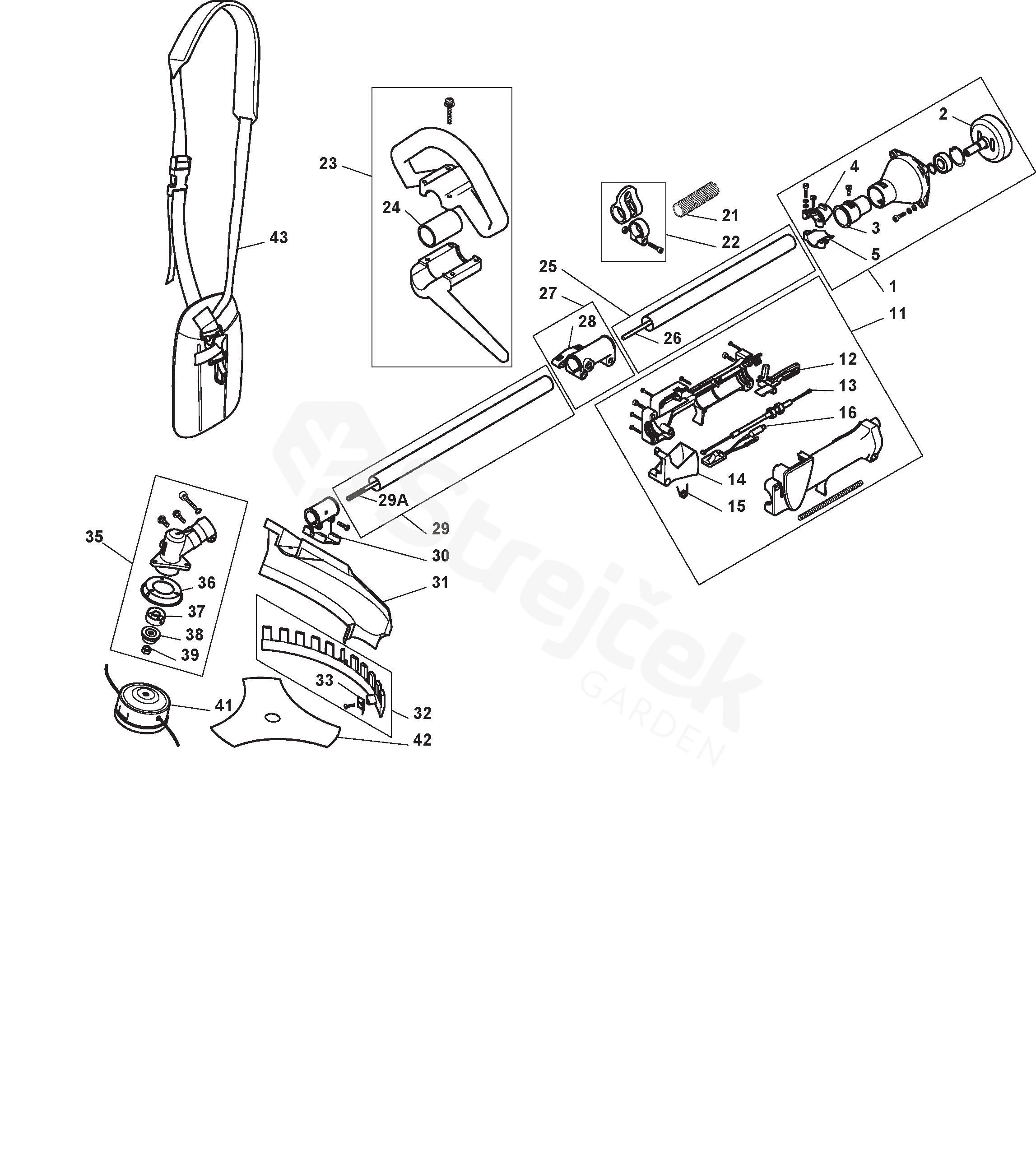

XB 26 J XB 26 J (2010) [280720103/10]
>
Handle-transmission
Back to
XB 26 J
XB 26 J (2010) [280720103/10]
Handle-transmission
XB 26 J
XB 26 J (2010) [280720103/10]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XB 26 J (2010) [280720103/10]
1
Support Transmission Assy
183785003/0
2
Clutch Drum Assy
123050011/0
3
Grommet
123275036/0
4
Support
123720005/0
5
Support
123720004/0
11
Handle Assy
183300027/0
12
Safety Lever
123315104/0
13
Throttle Cable
123066026/0
14
Throttle Lever
123315105/0
15
Spring
123430612/0
16
Switch
183303002/0
21
Spacer
123170004/0
22
Harness Support
183780002/0
23
Front Handle
183300025/0
24
Grommet
123655005/0
25
Assy Transmission Tube
183869072/0
26
Trasmission Shaft
123020035/0
27
Connecting Head Assy
183260002/0
28
Knob
123593510/0
29
Assy Transmission Tube
183869074/0
30
Support
123784012/0
31
Safety Cover
123465007/0
32
Guard
183600055/0
33
Line Cutter Blade
123311013/0
35
Gear case assy
183820507/0
36
Guard
123670002/0
37
Upper Ring Nut
123250002/0
38
Lower Ring Nut
123250003/0
39
Nut
123120015/0
41
2 Hedges Nylon Head
123155009/0
42
3 Teeth Disc
123155010/0
43
Harness
123046005/0
