TELLUS 40 BS TELLUS 40 BS (2007)
>
Transmission
Back to
TELLUS 40 BS
TELLUS 40 BS (2007)
Transmission
TELLUS 40 BS
TELLUS 40 BS (2007)

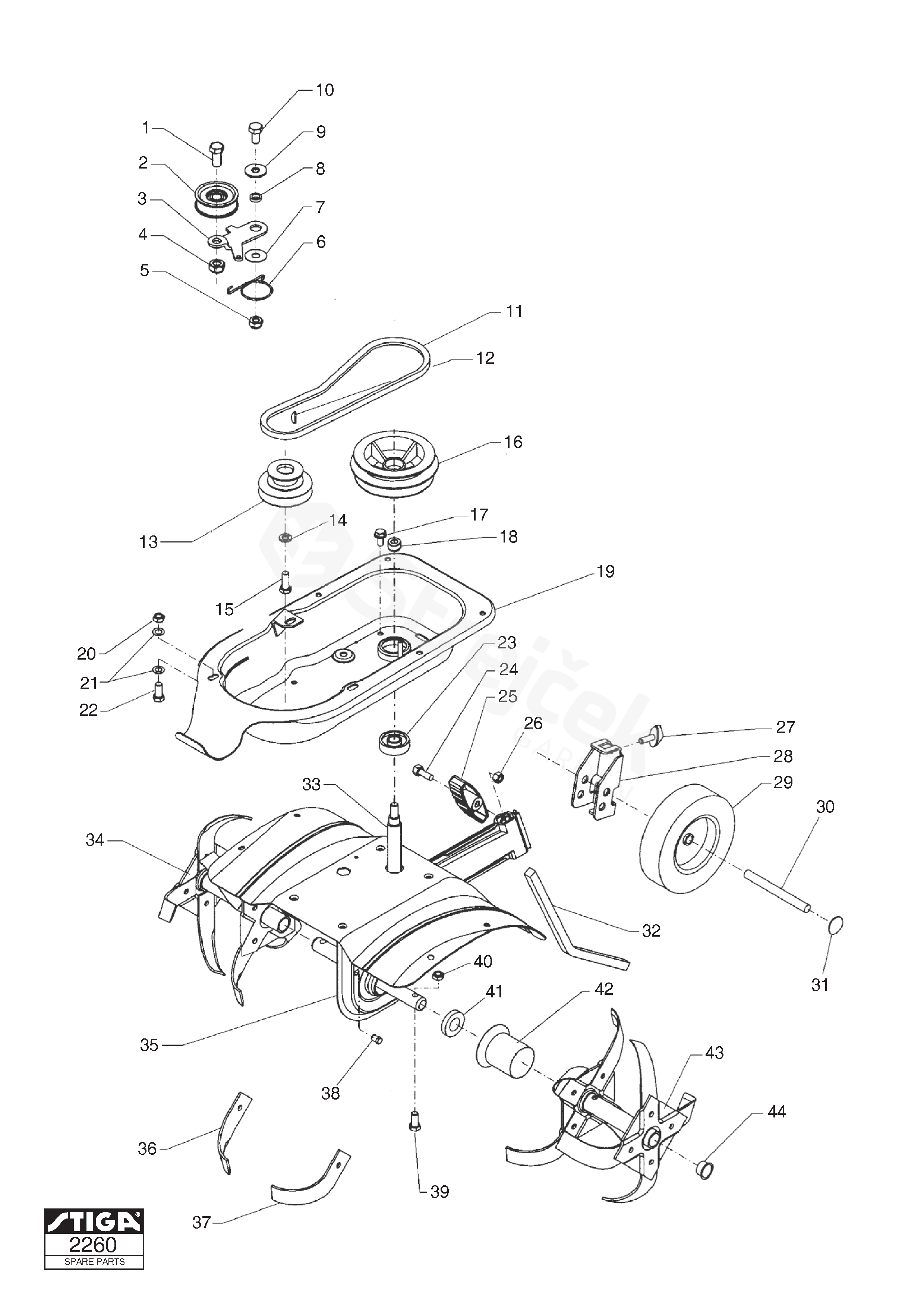

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TELLUS 40 BS (2007)
1
Screw
1483-2076-01
2
Pulley
1483-2004-01
3
Lever
1483-2032-01
4
Nut
9747-1231-02
5
Lock Nut
9747-1031-02
6
Spring
1483-2033-01
7
Spacer
1483-2020-01
8
Bushing
1483-2001-01
9
Washer
9699-0105-02
10
Screw
9997-1020-16
11
Belt
1483-2034-01
12
Key
112139100/0
13
Pulley
1483-2065-01
14
Washer
9699-0035-02
15
Screw
9987-5225-16
16
Pulley
1483-2028-01
17
Screw
9959-0816-16
18
Spacer
1483-2027-01
19
Transm.Housing-Yellow
1483-2038-01
20
Nut
9747-0831-02
21
Washer
9699-0028-02
22
Screw
9997-0835-12
23
Ball Bearing
1483-2071-01
24
Screw
9997-0820-16
25
Knob
1483-2045-01
26
Nut
9747-0831-02
27
Screw
1483-2077-01
28
Support
1483-2056-01
29
Wheel
Ø 150 mm
1483-2058-01
30
Axle, Wheels
1483-2057-01
31
Fastener
1483-2074-01
32
Lever
1483-2063-01
33
Screw
1483-2011-01
34
Right Tine Assy
1483-2055-01
35
Transm.Housing-Yellow
1483-2037-01
36
Left Tine
1483-2014-01
37
Right Tine
1483-2013-01
38
Cap
1483-2075-01
39
Screw
9997-0835-12
40
Nut
9747-0831-02
41
Oil seal
1483-2069-01
42
Dust Cover
1483-2012-01
43
Left Tine Assy
1483-2054-01
44
Cap
1483-2015-01
