Spare parts - Partlist - TELLUS 50 R BS TELLUS 50 R BS (2007) - Handle

Everything for your machines

TELLUS 50 R BS TELLUS 50 R BS (2007)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TELLUS 50 R BS (2007)

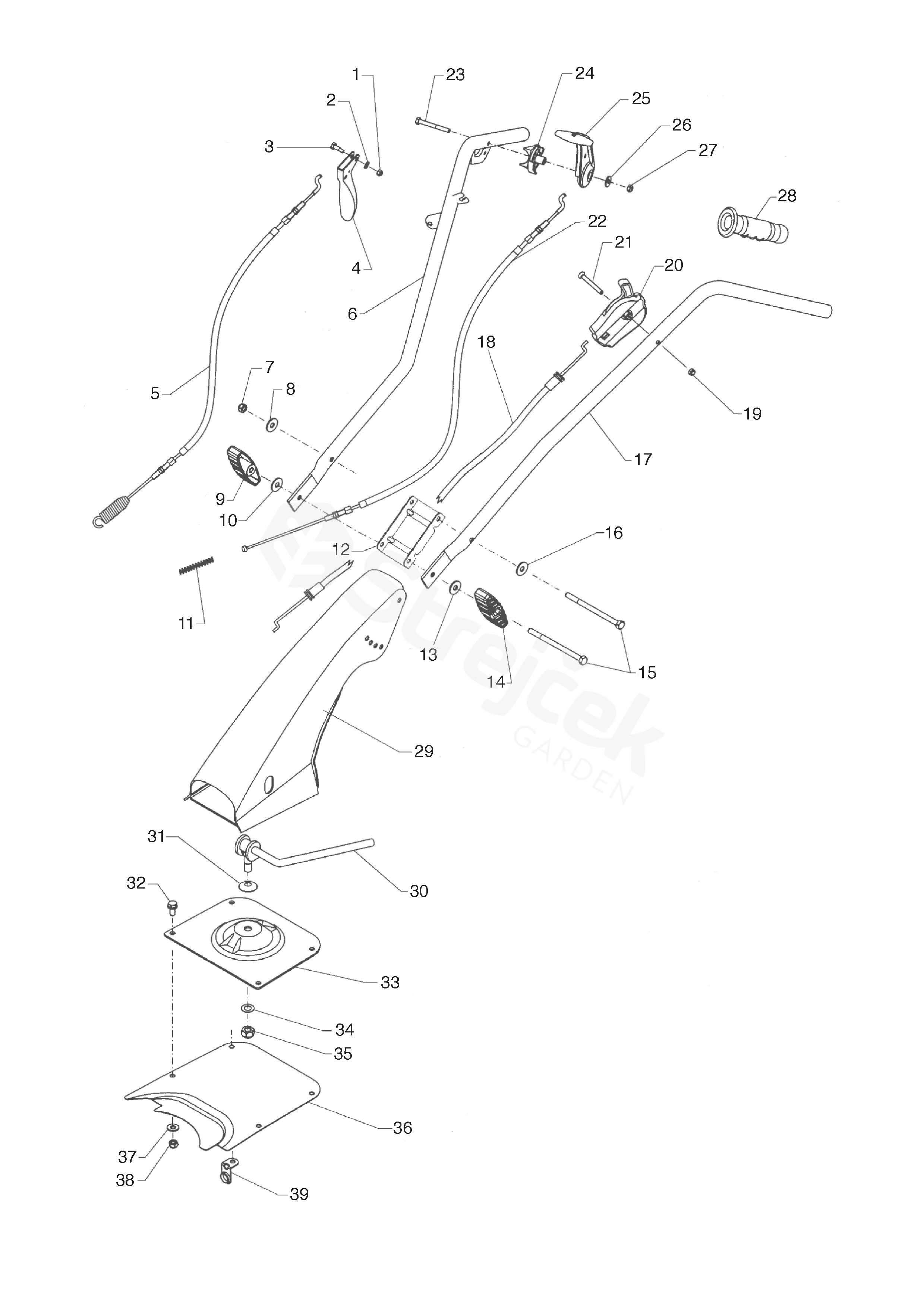

1	Nut	9747-0531-02
2	Washer	9699-0025-02
3	Screw	1483-2005-01
4	Handle	1483-2008-01
5	Clutch Cable	1483-2053-01
6	Handle Tube-Rh	1483-2049-01
7	Nut	9747-0831-02
8	Washer	9699-0122-02
9	Knob	1483-2006-01
10	Washer	9699-0056-02
11	Spring	1483-2019-01
12	Stiffening	1483-2046-01
13	Washer	9699-0056-02
14	Knob	1483-2045-01
15	Screw	9997-0812-02
16	Washer	9699-0122-02
17	Handle Tube-Lh	1483-2050-01
18	Throttle Cable	1483-2007-01
19	Lock Nut	9747-0631-02
20	Accelerator	1483-2016-01
21	Screw	9948-0650-16
22	Cable	1483-2051-01
23	Screw	9948-0655-16
24	Support	1483-2018-01
25	Lever	1483-2017-01
26	Flat washer	9699-0100-02
27	Lock Nut	9747-0631-02
28	Handgrip	1483-2009-01
29	Support Yellow	1483-2042-01
30	Lever	1483-2044-01
31	Washer	1483-2073-01
32	Screw	9959-0820-16
33	Plate Yellow	1483-2043-01
34	Washer	9699-0121-02
35	Nut	9747-1231-02
36	Plate Yellow	1483-2029-01
37	Washer	9699-0028-02
38	Nut	9747-0831-02
39	Support	1483-2021-01
99	Accessory Bag Märkta S/marked S	1483-2067-01
