Spare parts - Partlist - TELLUS 95 B TELLUS 95 B (2010) - Chassis

Everything for your machines

TELLUS 95 B TELLUS 95 B (2010)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TELLUS 95 B (2010)

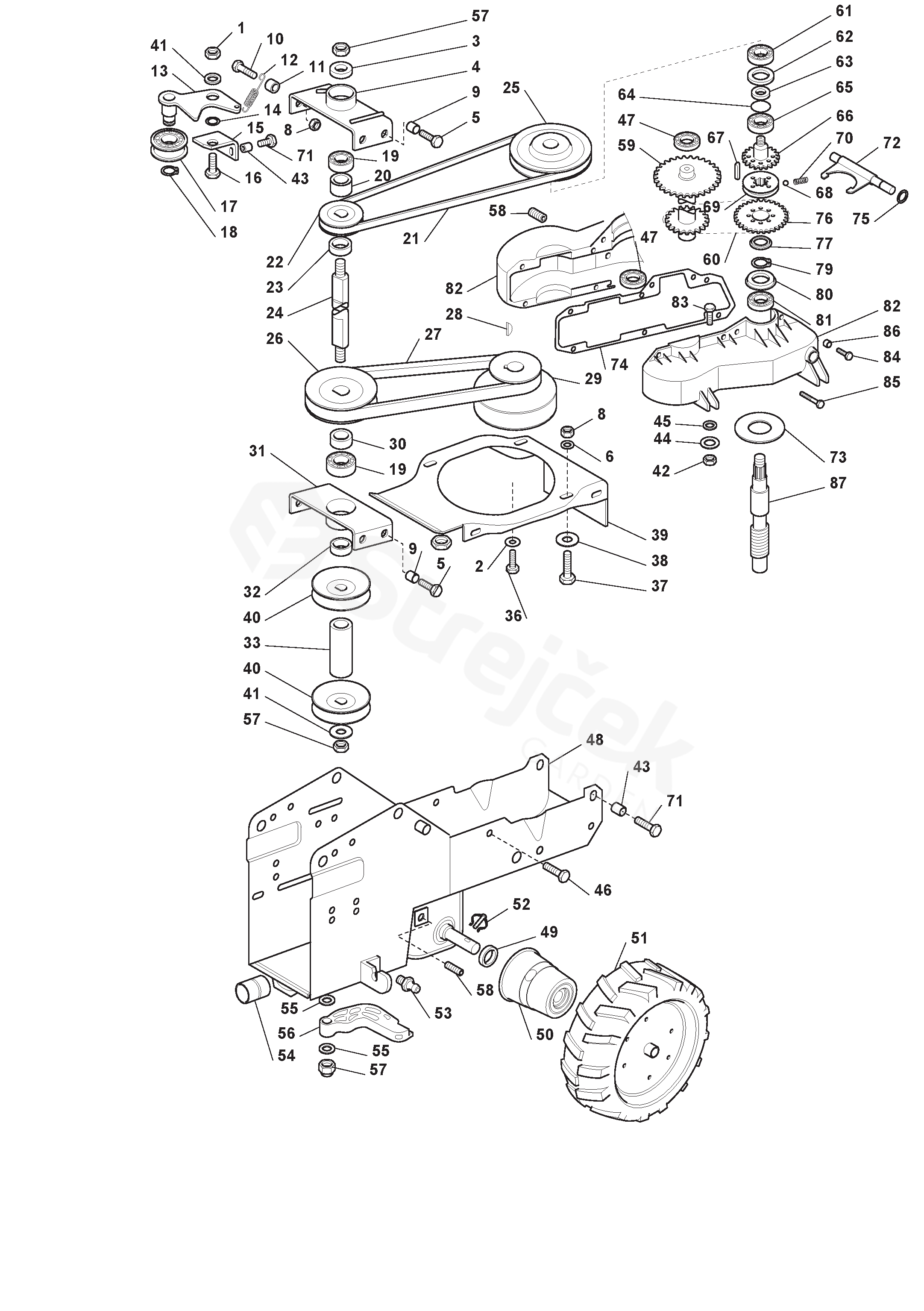

1	Lock Nut	9747-1031-02
2	Washer	9699-0035-02
3	Washer	1483-2085-01
4	Support	118800047/0
5	Screw	9959-0816-16
6	Washer	9699-0028-02
8	Nut	9747-0831-02
9	Spacer	1483-2108-01
10	Screw	9959-0825-16
11	Spacer	118800491/0
12	Spring Rear Cover	118800048/0
13	Tend Arm Strap	118800049/0
14	Bushing	1483-2001-01
15	Support	118800508/0
16	Screw	9997-1025-16
17	Pulley	1483-2004-01
18	Circlip	9650-0012-04
19	Bearing	118800050/0
20	Spacer	118800051/0
21	Belt	118800001/0
22	Pulley	118800052/0
23	Spacer	118800053/0
24	Countershaft	118800054/0
25	Pulley	118800055/0
26	Pulley	1483-2326-01
27	Belt	1483-2352-01
28	Key	112139100/0
29	Pulley	118800056/0
30	Spacer	118800057/0
31	Support	118800058/0
32	Spacer	1483-2203-01
33	Spacer	118800506/0
36	Screw	9987-5225-16
37	Screw	9997-0835-12
38	Washer	9699-0122-02
39	Red Engine Top Cover	118550540/0
40	Pulley	1483-2082-01
41	Washer	9699-0105-02
42	Nut	112292100/0
43	Nut	1483-2190-01
44	Flat washer	9699-0100-02
45	Washer	9683-0025-02
46	Screw	9959-0612-16
47	Bearing	118800059/0
48	Chassis Red	118800502/0
49	Oil seal	1483-2069-01
50	Dust Cover	118800060/0
51	Right Wheel	118800061/0
52	Pin	118800500/0
53	Grease Dispenser	9501-0500-00
54	Bushing	118800499/0
56	Lever	1483-2332-01
58	Cap	1483-2075-01
59	Gear	118800325/0
60	Chain	118800327/0
61	Bearing	118800369/0
62	Snap Ring	118800363/0
63	Spacer	118800321/0
64	Or Ring	118800364/0
65	Bearing	118800372/0
66	Gear	118800322/0
67	Pin	118800380/0
68	Grub Screw	1483-2281-01
69	Selector	118800323/0
70	Spring	1483-2201-01
71	Screw	9959-0616-16
72	Gear Fork	118800063/0
73	Oil seal	118800064/0
74	Oil seal	118800065/0
75	O Ring	1483-2275-01
76	Gear	118800324/0
77	Bushing	118800326/0
79	Seeger	118800356/0
80	Dust Cover	118800320/0
81	Bearing	118800368/0
82	Left housing	118800319/0
83	Screw	9997-0620-16
84	Screw	112760475/0
85	Screw	118800530/0
86	Nut	9747-0531-02
87	Worm	118800507/0
