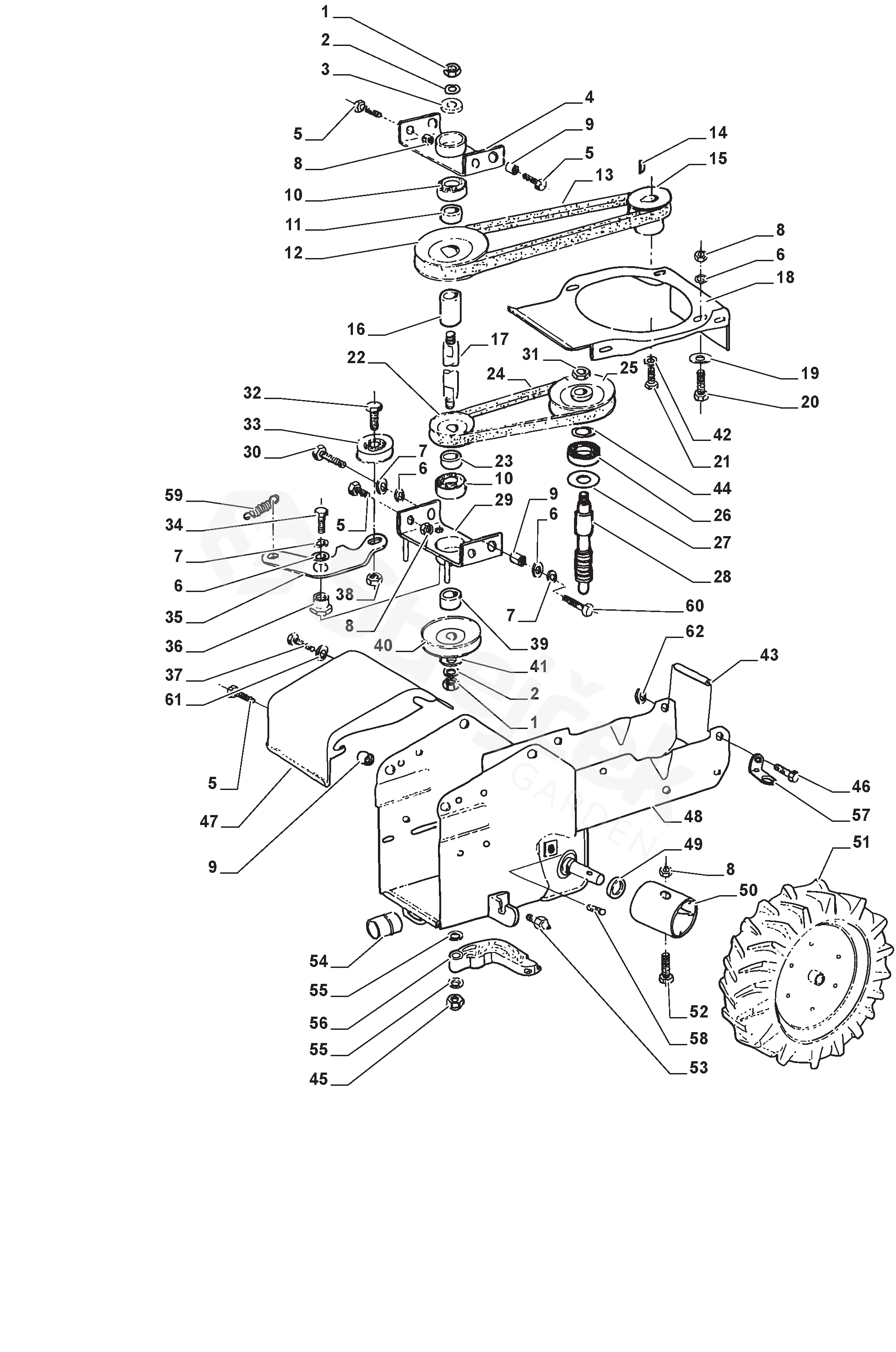

TELLUS 87 B TELLUS 87 B (2013)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TELLUS 87 B (2013)

1	Nut	9799-1031-02
2	Washer	9678-0011-02
3	Washer	1483-2085-01
4	Support	118800058/0
5	Screw	9959-0816-16
6	Washer	9699-0028-02
8	Nut	9747-0831-02
9	Spacer	1483-2108-01
10	Bearing	118800050/0
11	Spacer	118800057/0
12	Pulley	1483-2326-01
13	Belt	1483-2352-01
14	Key	112139100/0
15	Pulley	118800056/0
16	Spacer	118800311/0
17	Shaft	1483-2353-01
18	Protection Cover Red	1483-2346-01
19	Washer	9699-0122-02
20	Screw	9997-0835-12
21	Screw	9987-5225-16
22	Pulley	118800505/0
23	Spacer	118800312/0
24	Belt	1483-2350-01
25	Pulley	1483-2354-01
26	Ball Bearing	1483-2071-01
27	Gasket	1483-2355-01
28	Screw	118800310/0
29	Support	118800316/0
30	Screw	9997-0840-12
31	Nut	9799-1231-02
32	Screw	9997-1230-16
33	Pulley	1483-2004-01
34	Screw	9997-0816-16
35	Lever	1483-2083-01
36	Bushing	118800313/0
37	Screw	9959-0825-16
38	Nut	9747-1231-02
39	Spacer	118800051/0
40	Pulley	1483-2325-01
41	Washer	9699-0105-02
42	Washer	9699-0035-02
43	Chassis	1483-2345-01
44	Spacer	1483-2020-01
45	Lock Nut	9747-1031-02
46	Screw	9997-0620-16
47	Protection Cover Red	1483-2348-01
48	Chassis Red	118800501/0
49	Oil seal	1483-2069-01
50	Protection	1483-2363-01
51	Right Wheel	118800061/0
53	Grease Dispenser	9501-0500-00
54	Bushing	118800499/0
56	Lever	1483-2332-01
57	Support	1483-2021-01
58	Cap	1483-2075-01
59	Spring	1483-2207-01
61	Washer	112523060/0
62	Flat washer	9699-0100-02
