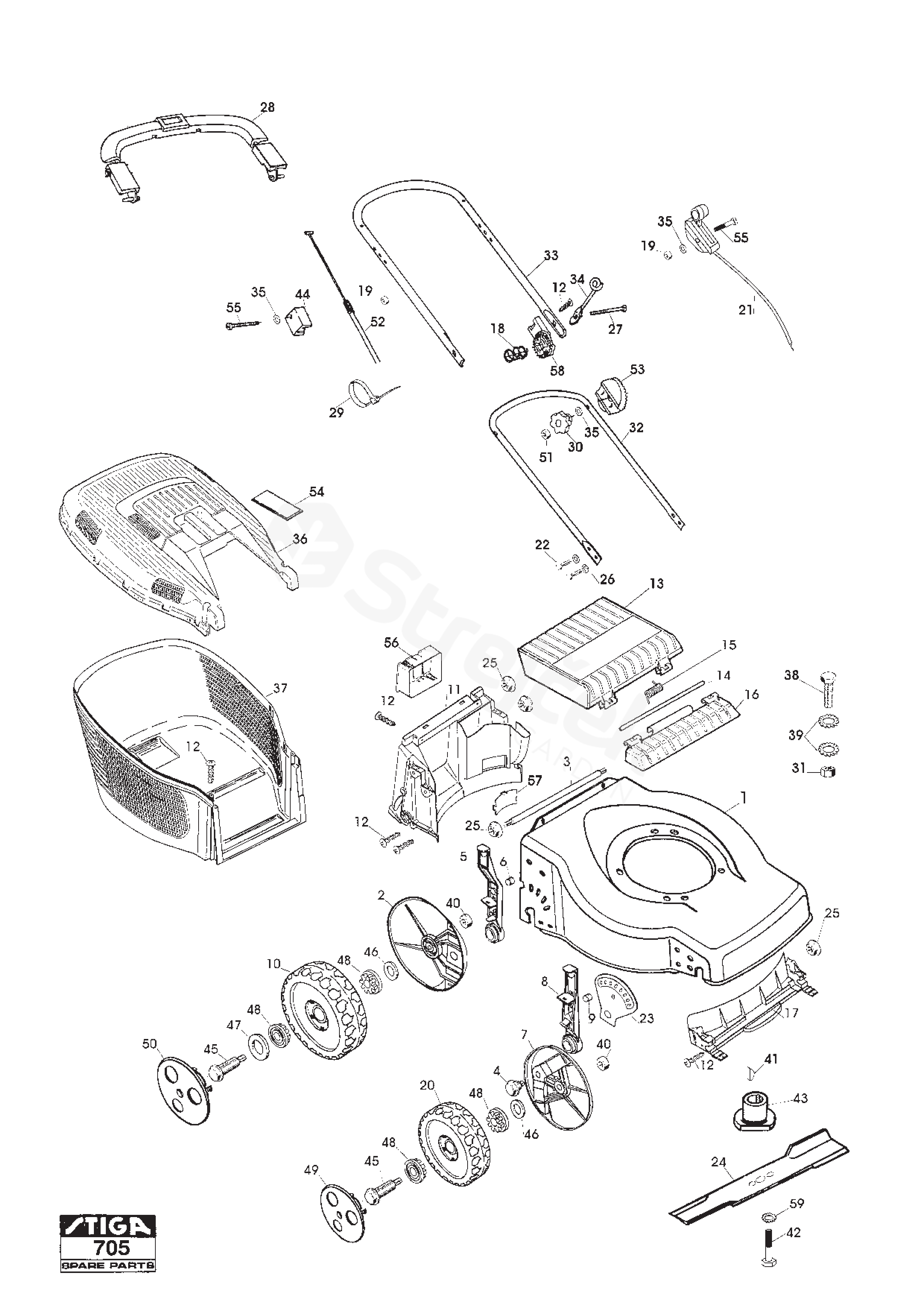

EURO 4 EURO 45 (DK) (1996)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For EURO 45 (DK) (1996)

1	Yellow Deck	1117-1217-01
2	Wheel Cover	1117-1195-01
3	Reinforcement	1117-1219-01
4	Shoulder Bolt	1117-1182-01
5	Lever, Height Adjustment Inkl. pos 6	1117-1229-01
6	Pin	1117-1214-01
7	Wheel Cover	1117-1194-01
8	Lever, Height Adjustment Inkl. pos 9	1117-1228-01
9	Pin	1117-1215-01
10	Wheel	1117-1224-01
11	Baffle-rear	1117-1146-01
12	Screw	9836-9516-12
13	Rear Flap (Yellow)	1117-1156-01
14	Shaft For Rear Flap	1117-1143-01
15	Spring-Rear Flap	1117-1126-01
16	Rear Flap Fixation (Yell)	1117-1155-01
18	Spring	1111-2574-01
19	Nut	9799-0631-02
20	Wheel	1117-1167-01
21	Throttle Cable	1117-1189-01
22	Screw	9997-0820-16
23	Sector	1117-1213-01
24	Blade	1117-1203-01
25	Nut	1117-1131-01
26	Washer	9699-0028-02
27	Screw	9899-3576-12
28	Control Handle (Eng.Brake	1111-2953-01
29	Cable Holder	9579-0008-00
30	Locking Knob	1111-3023-01
31	Nut	9799-0831-02
32	Handle tube-lower	1117-1149-01
33	Handlebar Upper Part	1111-2957-01
34	USE 1117-1392-01	1117-1116-01
35	Washer	9699-0025-02
36	Grass Bag Cover, Yellow Inkl. pos 54	1117-1157-01
37	Lower Grass Bag (Black)	1117-1218-01
38	Screw	9997-0830-16
39	Lock washer	9678-0009-02
40	Nut	9747-0831-02
41	Key	9600-0014-00
42	Screw	9987-5251-12
43	Blade mount	1117-1201-01
44	Cable Holder	1111-2969-01
45	Wheel Bolt	1117-1176-01
46	Washer	9699-0062-02
47	Washer	9699-0037-02
48	Bushing	1117-1193-01
49	Hub Cap	1111-2804-01
50	Hub Cap	1111-2815-01
51	Nut	9795-3531-02
52	Opc Cable	1117-1206-01
53	Handle Holder-Inner	1111-2575-01
54	Cap For Grassbag-Yellow	1117-1135-01
55	Screw	9948-0640-16
56	Battery Holder	1111-2927-01
57	Cap	1117-1148-01
58	Handle Holder-Outer	1111-2955-01
59	Washer	1117-1210-01
