ST S p A
>
Lawn Mower
>
MONARK 4 MONARK 45 (FIN) (1996)
>
Walkbehind
Back to
MONARK 4
MONARK 45 (FIN) (1996)
Walkbehind
MONARK 4
MONARK 45 (FIN) (1996)

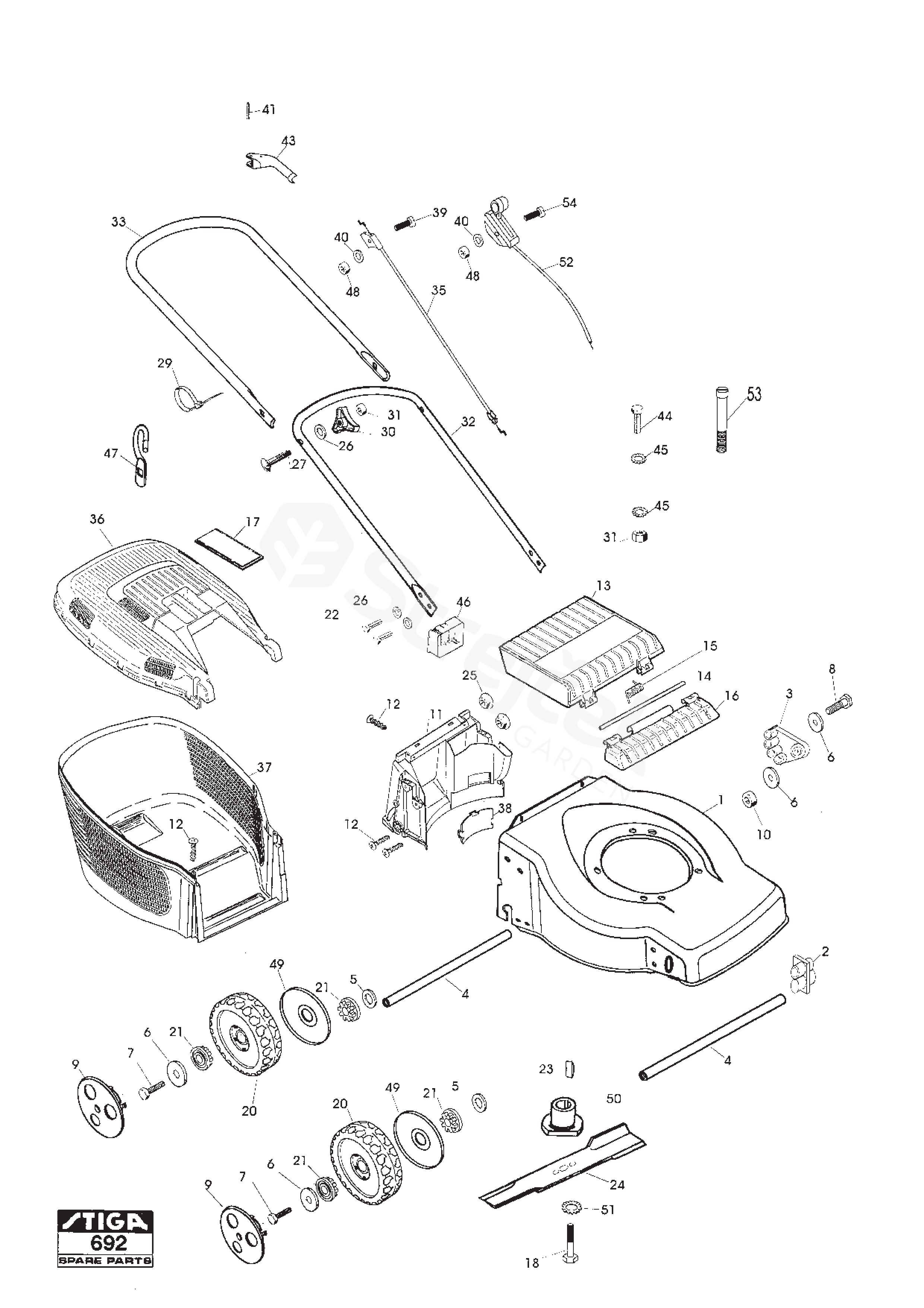

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MONARK 45 (FIN) (1996)
1
Silver Deck
1117-1226-02
2
Wheel Axle Bushing
1117-1208-01
3
Wheel Axle Bushing
1117-1209-01
4
Wheel Shaft
1117-1227-01
5
Washer
9699-0036-02
6
Washer
1117-1175-01
7
Screw
9997-0614-16
8
Screw
9997-0620-16
9
Hub Cap (White)
1111-2804-03
10
Lock Nut
9747-0631-02
11
Baffle-rear
1117-1146-01
12
Screw
9836-9516-12
13
Rear Flap (Blue Ral5003)
1117-1156-03
14
Shaft For Rear Flap
1117-1143-01
15
Spring-Rear Flap
1117-1126-01
16
Rear Flap Holder (Blue Ral5003)
1117-1155-03
17
Cap For Grassbag-Yellow
1117-1135-01
18
Screw
9987-5251-12
20
Wheel
1117-1167-01
21
Bushing
1117-1193-01
22
Screw
9997-0820-16
23
Key
9600-0014-00
24
Blade
1117-1203-01
25
Nut
1117-1131-01
26
Washer
9699-0028-02
27
Screw
9898-0845-12
29
Cable Holder
9579-0008-00
30
Knob
1117-1108-01
31
Nut
9799-0831-02
32
Handle tube-lower
1117-1149-01
33
Handle-upper part
1117-1223-01
35
Opc Cable
1117-1183-01
36
Grassbag cover-blue
Inkl pos 17
1117-1157-03
37
Lower Grass Bag (Black)
1117-1218-01
38
Cap
1117-1148-01
39
Screw
9948-0635-16
40
Washer
9699-0025-02
41
Locating Pin
9595-0258-00
43
Opc Lever
1117-1177-01
44
Screw
9997-0830-16
45
Lock washer
9678-0009-02
46
Battery Holder
1111-2927-01
47
USE 1117-1392-01
1117-1116-01
48
Nut
9799-0631-02
49
Protection, Wheel
1117-1161-01
50
Blade mount
1117-1201-01
51
Washer
1117-1210-01
52
Throttle Control
1117-1188-01
53
Bolt
1117-1179-01
54
Screw
9948-0640-16
