Spare parts > ST S p A > Lawn Mower > MULTICLIP MONARK M46 MULTICLIP MONARK M46 (2000) > Walkbehind
Back to
Walkbehind
MULTICLIP MONARK M46 MULTICLIP MONARK M46 (2000)

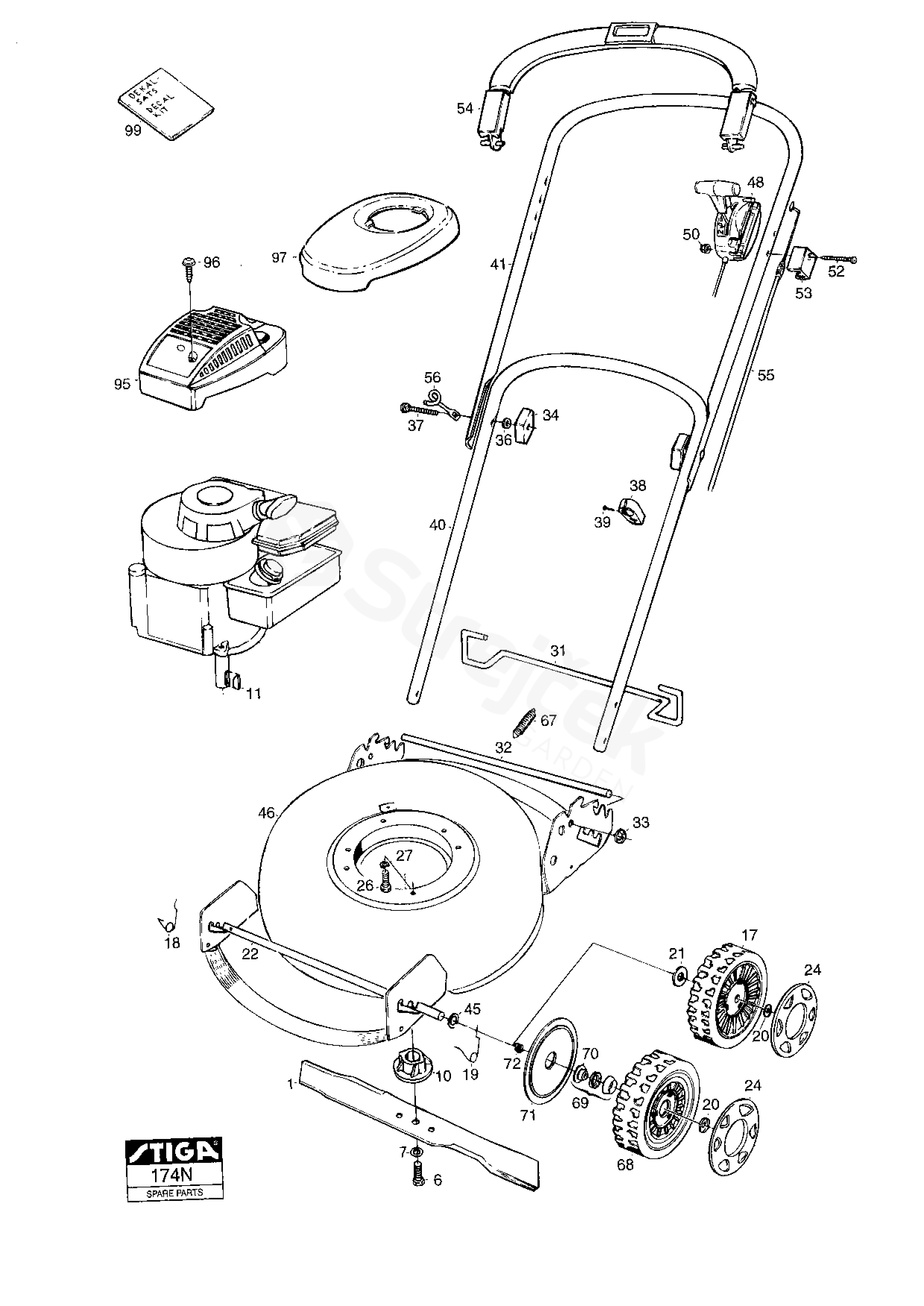

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTICLIP MONARK M46 (2000)
1 Blade 1111-9078-01
6 Screw 9987-5238-12
7 Washer 9696-0011-01
10 Blade Hub 1111-9066-01
11 Key 9600-0014-00
17 Wheel 1111-2656-01
18 Spring 1111-1589-02
19 Spring 1111-1589-01
20 Washer 1111-9042-01
21 Washer 9699-0069-02
22 Wheel Axle 1111-1590-01
24 Hub Cap (White) 1111-2804-03
26 Screw 9955-3732-12
27 Washer 9699-0029-02
31 Handlebar Clamp 1111-3017-01
32 Pivot rod 1111-1532-01
33 Washer 9670-0203-00
34 Handle Bolt Kit (2 Pcs) 1111-9030-02
36 Washer 9699-0025-02
37 Screw 9899-3551-12
38 Cable Holder 1111-2018-01
39 Screw 9836-9216-12
40 Handle-Lower Part 1111-3018-01
41 Handlebar Upper Part 1111-2957-01
45 Washer 1111-1593-01
46 Chassis-red 1111-2982-04
50 Lock Nut 9747-0631-02
52 Screw
L = 40 mm 		9948-0640-16
53 Cable Holder 1111-2969-01
54 Control Handle (Eng.Brake 1111-2953-01
55 Cable, Thread Engine Brake 1111-2968-05
56 Eyelink 1111-3062-01
67 Spring 1111-2375-01
97 Engine Cover 1111-3289-02
99 Label Kit 1111-2893-02
