ST S p A
>
Lawn Mower
>
BT 4700 COMB BT 4700 COMBI (BRICOBI) (2002)
>
Walkbehind
Back to
BT 4700 COMB
BT 4700 COMBI (BRICOBI) (2002)
Walkbehind
BT 4700 COMB
BT 4700 COMBI (BRICOBI) (2002)

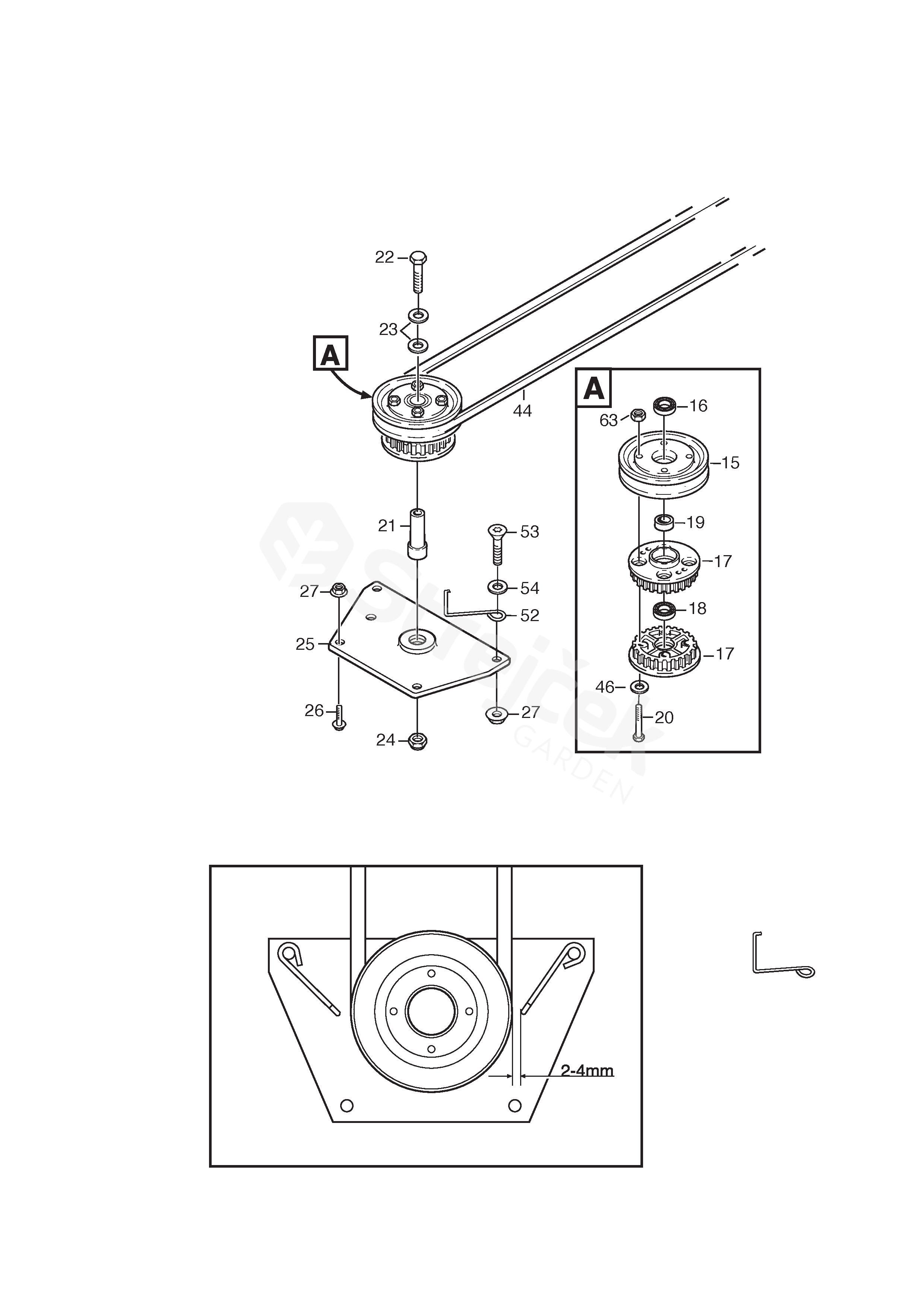

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BT 4700 COMBI (BRICOBI) (2002)
1
Blue Deck
344 602
1117-1308-04
2
Shaft-Backside
344 602
1117-1173-01
3
Locating Pin
344 602
9595-0212-00
4
Wheel Cover
344 602
1117-3256-01
5
Lever, Height Adjustment
344 602
1117-1174-01
6
Wheel
344 602
1111-2663-01
7
Washer
344 602
9699-0037-02
8
Rear Baffle
344 602
1117-3008-01
9
Screw
344 602
9836-9516-12
10
Rear Flap (Red Ral3020)
344 602
1117-1156-09
11
Shaft For Rear Flap
344 602
1117-1143-01
12
Spring-Rear Flap
344 602
1117-1126-01
13
Rear Flap Fixation (????)
344 602
1117-1155-09
14
Front Baffle
344 602
1117-3007-01
15
Washer
344 603
9699-0078-02
16
Screw
344 603
9898-0845-12
17
Front Shaft
344 602
1117-1334-01
18
Nut
344 602
9716-0831-02
19
Connection Rod
344 602
1117-1130-01
20
Wheel
344 602
1111-3163-01
21
Hub Cap-Grey
344 602
1111-2804-06
22
Hub Cap (Grey)
344 602
1111-2815-06
23
Nut
344 602
1117-1131-01
24
Washer
344 602
9699-0028-02
25
Bolt
344 602
1117-1364-01
26
Assy Kit
344 602
1117-3028-01
27
Bushing
344 602
1117-1193-01
28
Washer
344 602
9699-0025-02
29
Cable Holder
344 602
9579-0008-00
30
Knob
344 602
1117-3194-01
31
Nut
344 602
9799-0831-02
32
Nut
344 602
9799-0631-02
33
Handlebar-lower part
344 602
1117-3199-01
34
Handlebar-Upper Part
344 602
1117-3200-01
35
Control Handle (Eng.Brake
344 602
1111-2953-01
36
Screw
40 mm _ 344 602
9898-0835-12
37
Grassbag-Upper (Blue Ral5003)
Inkl. pos 68 _ 344 602
1117-1157-09
38
Clutch Lever
344 602
1111-2954-01
39
Screw
30 mm _ 344 602
9997-0830-16
40
Cable Holder
344 602
1111-2969-01
41
Lock washer
344 602
9678-0009-02
42
Key
344 602
9600-0014-00
43
Blade mount
344 602
1117-1387-01
44
Blade
344 602
1117-3354-01
45
Engine Cover (Grey)
344 602
1111-3289-05
46
Spring washer
344 602
1117-1065-01
47
Screw
344 602
9987-5251-12
48
Screw
344 602
9997-0614-16
49
Washer
344 602
1117-1175-01
50
Spring
344 602
1117-1120-01
51
Pin
344 602
9591-0011-00
52
Circlip
344 602
1117-1083-01
53
Washer
344 602
1111-2830-01
54
Gear Wheel
344 602
1111-3075-01
55
Clutch Cable
Inkl. pos 72 _ 344 602
1117-1200-01
56
Screw
344 602
9865-0816-16
57
Protection, Wheel
344 602
1117-1161-01
58
Grass Collector-Lower Part (Grey)
344 602
1117-1218-02
59
V-Belt
344 602
1117-3017-01
60
Bolt
M8 x 40 _ 344 602
1117-1268-01
61
Washer
344 602
9699-0062-02
62
Belt cover
344 602
1117-1147-01
63
Handle Support, Left
344 602
1117-1340-01
64
Handle Support, Right
344 602
1117-1341-01
65
Battery Holder
344 602
1111-2927-01
66
Ball Bearing
344 602
9549-0053-00
67
Key
344 602
1111-3256-01
68
Cap
344 602
1117-1135-02
69
Pulley
344 602
1117-3018-01
70
Pin
344 602
1111-2382-01
71
Transmission assy
Inkl. pos 69, 70 _ 344 603
1117-3376-01
72
Grommet
344 602
1134-3203-04
73
Opc Cable
Inkl. pos 40 _ 344 602
1117-1205-01
74
Bearing Bush
344 602
1111-1273-01
75
USE 1117-1392-01
344 602
1117-1116-01
76
Mulch Plug (Yellow)
344 602
1117-3001-01
77
Wheel Bolt
344 602
1111-3164-01
78
Screw
344 602
9948-0640-16
79
Screw
344 602
9836-9512-12
