ST S p A
>
Lawn Mower
>
BA 445T COMB BA 445T COMBI (BATKOR) (2003)
>
Walkbehind
Back to
BA 445T COMB
BA 445T COMBI (BATKOR) (2003)
Walkbehind
BA 445T COMB
BA 445T COMBI (BATKOR) (2003)

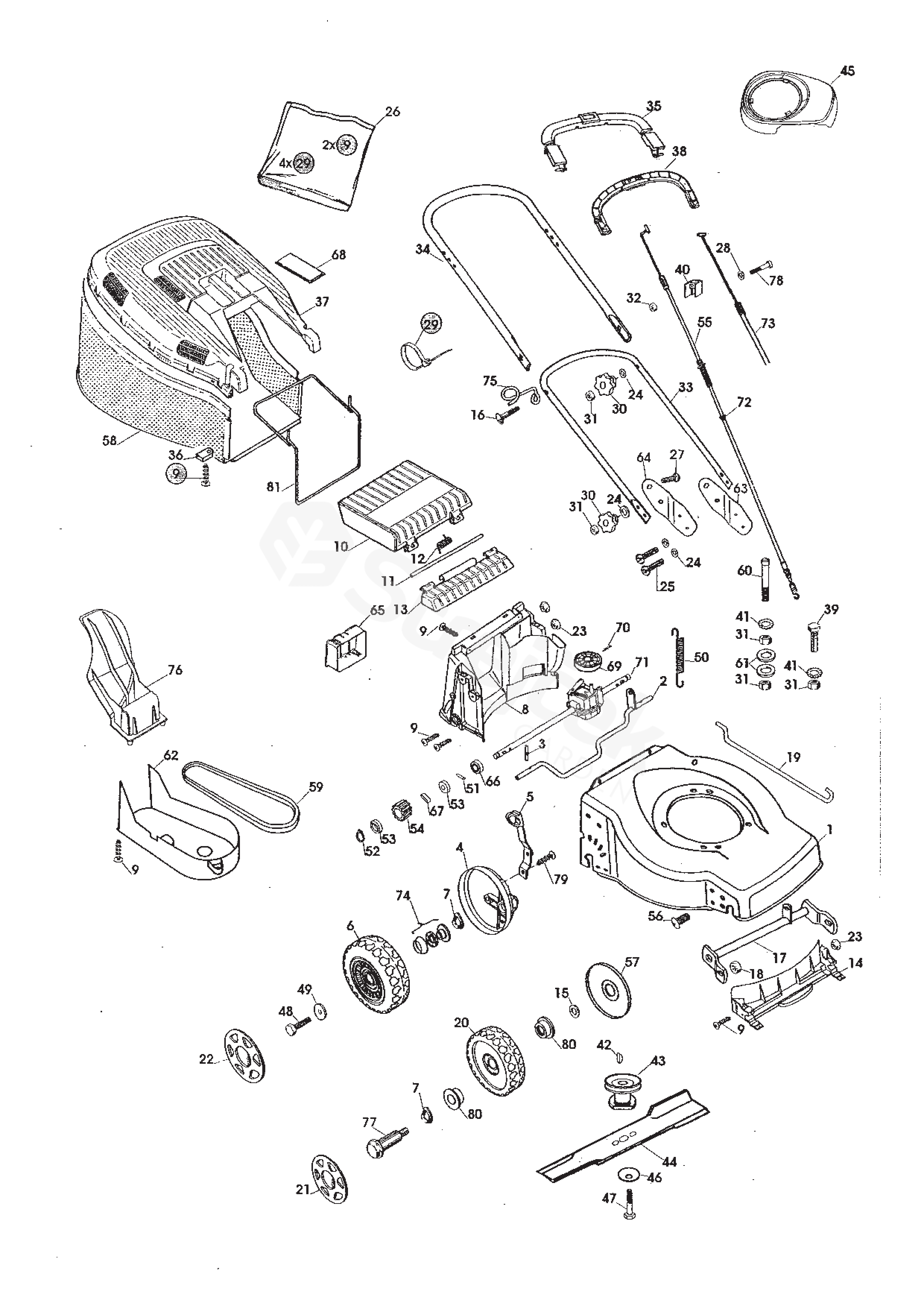

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BA 445T COMBI (BATKOR) (2003)
1
Yellow Deck
344 602
1117-1308-01
2
Shaft-Backside
344 629
1117-1173-01
3
Locating Pin
344 629
9595-0212-00
4
Wheel Cover
344 629
1117-3256-01
5
Lever, Height Adjustment
344 629
1117-1174-01
6
Wheel
Inkl. pos 74 _ 344 629
1111-2665-01
7
Washer
344 629
9694-0003-00
8
Rear Baffle
344 629
1117-3008-01
9
Screw
344 629
9836-9516-12
10
Rear Flap (Black)
344 629
1117-1156-02
11
Shaft For Rear Flap
344 629
1117-1143-01
12
Spring-Rear Flap
344 629
1117-1126-01
13
Rear Flap Holder (Black)
344 629
1117-1155-02
14
Front Baffle
344 629
1117-3007-01
15
Washer
344 629
9699-0078-02
16
Screw
344 629
9898-0845-12
17
Front Shaft
344 629
1117-1334-01
18
Nut
344 629
9716-0831-02
19
Connection Rod
344 629
1117-1130-01
20
Wheel
344 629
1111-3163-01
21
Hub Cap
344 629
1111-2804-01
22
Hub Cap-Grey
344 629
1111-3085-07
23
Nut
344 629
1117-1131-01
24
Washer
344 629
9699-0028-02
25
Bolt
344 629
1117-1364-01
26
Assy Kit
344 629
1117-3028-01
27
Screw
344 629
9898-0835-12
28
Washer
344 629
9699-0025-02
29
Cable Holder
344 629
9579-0008-00
30
Knob
344 629
1117-3194-01
31
Nut
344 629
9799-0831-02
32
Nut
344 629
9799-0631-02
33
Handlebar-lower part
344 629
1117-3199-01
34
Handlebar-Upper Part
344 629
1117-3200-01
35
Control Handle (Eng.Brake
344 629
1111-2953-01
36
Sack Clamp
344 629
1117-1136-01
37
Grassbag-Upper (Black)
Inkl. pos 68 _ 344 629
1117-1157-02
38
Clutch Lever
344 629
1111-2954-01
39
Screw
30 mm _ 344 629
9997-0830-16
40
Cable Holder
344 629
1111-2969-01
41
Lock washer
344 629
9678-0009-02
42
Key
344 629
9600-0014-00
43
Blade mount
344 629
1117-1387-01
44
Blade
344 629
1117-3015-01
45
Engine Cover-Black
344 629
1111-3289-01
46
Spring washer
344 629
1117-1065-01
47
Screw
344 629
9987-5251-12
48
Screw
344 629
9997-0614-16
49
Washer
344 629
1117-1175-01
50
Spring
344 629
1117-1120-01
51
Pin
344 629
9591-0011-00
52
Circlip
344 629
1117-1083-01
53
Washer
344 629
1111-2830-01
54
Gear Wheel
344 629
1111-3075-01
55
Clutch Cable
Inkl. pos 72 _ 344 629
1117-1200-01
56
Screw
344 629
9865-0816-16
57
Protection, Wheel
344 629
1117-1161-01
58
Grass Bag-Lower
344 629
1117-1266-01
59
V-Belt
344 629
1117-3017-01
60
Bolt
M8 x 40 _ 344 629
1117-1268-01
61
Washer
344 629
9699-0062-02
62
Belt cover
344 629
1117-1147-01
63
Handle Support, Left
344 629
1117-1340-01
64
Handle Support, Right
344 629
1117-1341-01
65
Battery Holder
344 629
1111-2927-01
66
Ball Bearing
344 629
9549-0053-00
67
Key
344 629
1111-3256-01
68
Cap
344 629
1117-1135-02
69
Pulley
344 629
1117-3018-01
70
Pin
344 629
1111-2382-01
71
Gear Box
Inkl. pos 69, 70 _ 344 629
1117-3016-01
72
Grommet
344 629
1134-3203-04
73
Opc Cable
Inkl. pos 40 _ 344 629
1117-1205-01
74
Ball Bearing
344 602
1111-3296-01
75
USE 1117-1392-01
344 629
1117-1116-01
76
Mulch Plug (Yellow)
344 629
1117-3001-01
77
Wheel Bolt
344 629
1111-3164-01
78
Screw
344 629
9948-0640-16
79
Screw
344 629
9836-9512-12
81
Frame-Grassbag
344 602
1117-1127-01
