EURO 45S EURO 45SP (ALPEX) (2003) [341803 (B)]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

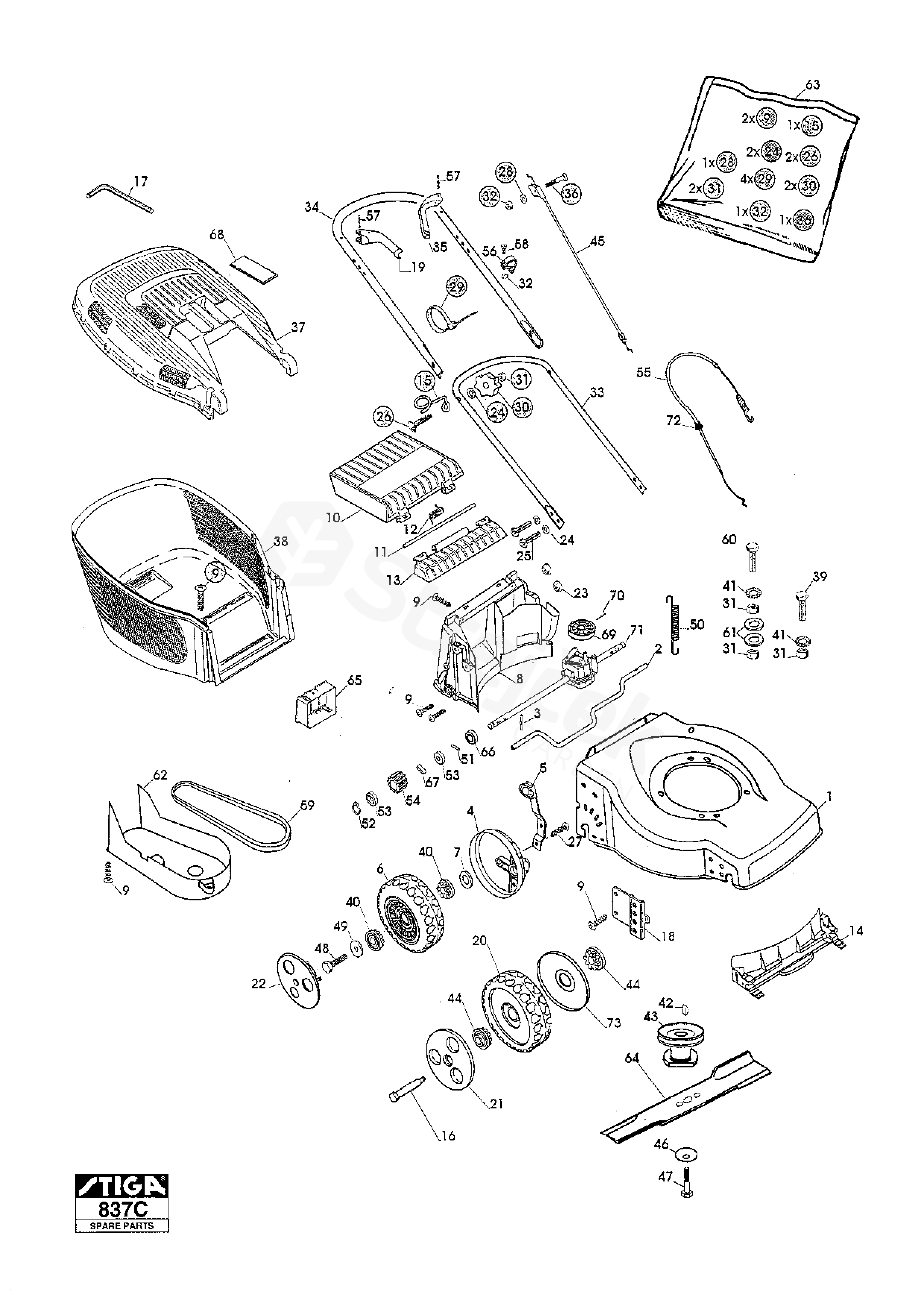

Other parts For EURO 45SP (ALPEX) (2003) [341803 (B)]

1	Yellow Deck 341 879	1117-3262-01
2	Shaft-Backside	1117-1160-01
3	Locating Pin	9595-0212-00
5	Lever, Height Adjustment	1117-1174-01
6	Wheel	1111-2663-01
7	Washer	9699-0037-02
8	Rear Baffle	1117-3008-01
9	Screw	9836-9516-12
11	Shaft For Rear Flap	1117-1143-01
12	Spring-Rear Flap	1117-1126-01
14	Front Baffle	1117-3007-01
15	USE 1117-1392-01	1117-1116-01
16	Wheel Bolt	1117-3223-01
17	Socket Wrench	1117-1355-01
18	Wheel Plate	1117-3009-01
19	Lever, Rear Drive	1117-3222-01
20	Wheel	1111-3163-01
23	Nut	1117-1131-01
24	Washer	9699-0028-02
25	Bolt	1117-1364-01
26	Screw	9898-0845-12
27	Screw	9836-9512-12
28	Washer	9699-0025-02
29	Cable Holder	9579-0008-00
30	Knob	1117-3194-01
31	Nut	9799-0831-02
32	Nut	9799-0631-02
33	Handle tube-lower	1117-1149-01
34	Handle-upper part	1117-1223-01
35	Opc Lever (Red)	1117-3221-01
36	Screw	9948-0640-16
37	Grass Bag Cover, Yellow Inkl. pos 68 _ 341 879	1117-1157-01
38	Lower Grass Bag (Black)	1117-1218-01
39	Screw	9997-0830-16
40	Bearing Bush	1111-1273-01
41	Lock washer	9678-0009-02
42	Key	9600-0014-00
44	Bushing	1117-3012-01
45	Opc Cable	1117-1183-01
46	Spring washer	1117-1065-01
47	Screw	9987-5251-12
48	Screw	9997-0614-16
49	Washer	1117-1175-01
50	Spring	1117-1120-01
51	Pin	9591-0011-00
52	Circlip	1117-1083-01
53	Washer	1111-2830-01
54	Gear Wheel	1111-3075-01
55	Clutch Cable Inkl. pos 72 _ 341 879	1117-1191-01
56	Support	1117-1114-01
57	Locating Pin	9595-0258-00
58	Screw	9865-0616-16
59	V-Belt	1117-3017-01
61	Washer	9699-0062-02
62	Belt cover	1117-1147-01
63	Assy Kit	1117-3030-01
64	Blade 341 802	1117-3354-01
65	Battery Holder	1111-2927-01
67	Key	1111-3256-01
69	Pulley	1117-3018-01
70	Pin	1111-2382-01
71	Gear Box Inkl. pos 69, 70 _ 341 879	1117-3016-01
72	Grommet	1134-3203-04
73	Protection, Wheel	1117-1161-01
