ST S p A
>
Lawn Mower
>
EURO 45S EURO 45SP (ALPEX) (2003) [591803]
>
Walkbehind
Back to
EURO 45S
EURO 45SP (ALPEX) (2003) [591803]
Walkbehind
EURO 45S
EURO 45SP (ALPEX) (2003) [591803]

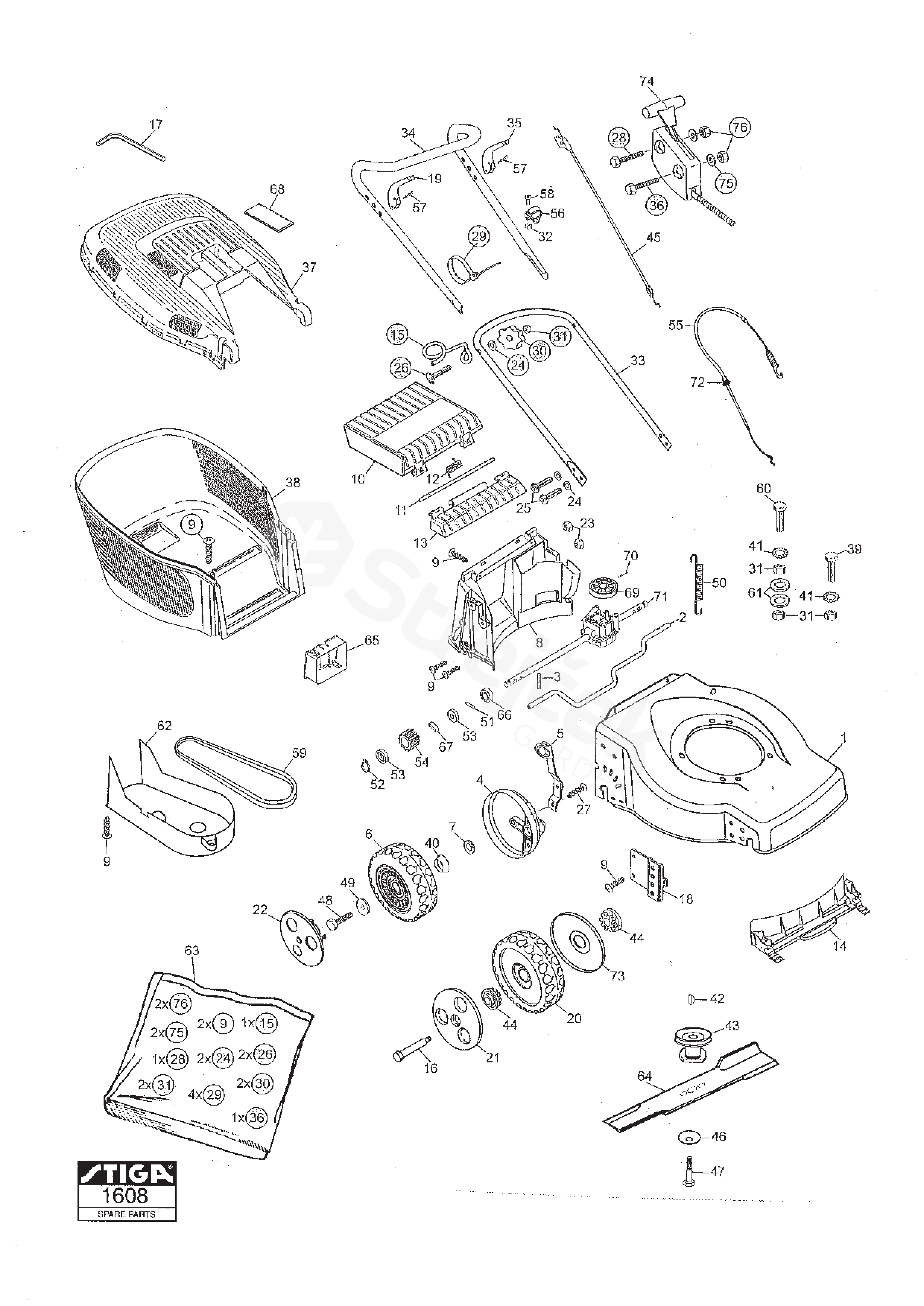

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
EURO 45SP (ALPEX) (2003) [591803]
1
Yellow Deck
591 803
1117-3262-01
2
Shaft-Backside
591 803
1117-1160-01
3
Locating Pin
591 803
9595-0212-00
4
Wheel Cover
591 803
1117-3256-01
5
Lever, Height Adjustment
591 803
1117-1174-01
6
Wheel
591 803
1111-2663-01
7
Washer
591 803
9699-0037-02
8
Rear Baffle
591 803
1117-3008-01
9
Screw
591 803
9836-9516-12
10
Rear Flap (Yellow)
591 803
1117-1156-01
11
Shaft For Rear Flap
591 803
1117-1143-01
12
Spring-Rear Flap
591 803
1117-1126-01
13
Rear Flap Fixation (Yell)
591 803
1117-1155-01
14
Front Baffle
591 803
1117-3007-01
15
USE 1117-1392-01
591 803
1117-1116-01
16
Wheel Bolt
591 803
1117-3223-01
17
Socket Wrench
591 803
1117-1355-01
18
Wheel Plate
591 803
1117-3009-01
19
Lever, Rear Drive
591 803
1117-3222-01
20
Wheel
591 803
1111-3163-01
21
Hub Cap Yellow
591 803
1117-3224-01
22
Hub Cap
591 803
1111-2815-01
23
Nut
591 803
1117-1131-01
24
Washer
591 803
9699-0028-02
25
Bolt
591 803
1117-1364-01
26
Screw
591 803
9898-0855-12
27
Screw
591 803
9836-9512-12
28
Screw
591 803
9997-0550-16
29
Cable Holder
591 803
9579-0008-00
30
Knob
591 803
1117-3194-01
31
Nut
591 803
9799-0831-02
32
Nut
591 803
9799-0631-02
33
Handle tube-lower
591 803
1117-1149-01
34
Handle, Upper Part
591 803
1117-1095-01
35
Opc Lever (Red)
591 803
1117-3221-01
36
Screw
591 803
9997-0560-12
37
Grass Bag Cover, Yellow
Inkl. pos 68 _ 591 803
1117-1157-01
38
Lower Grass Bag (Black)
591 803
1117-1218-01
39
Screw
591 803
9997-0835-12
40
Bearing Bush
591 803
1111-1273-01
41
Lock washer
591 803
9678-0009-02
42
Key
591 803
9600-0014-00
43
Blade mount
591 803
1117-1387-01
44
Bushing
591 803
1117-3012-01
45
Opc Cable
591 803
1117-1183-01
46
Spring washer
591 803
1117-1065-01
47
Screw
591 803
9987-5251-12
48
Screw
591 803
9997-0614-16
49
Washer
591 803
1117-1175-01
50
Spring
591 803
1117-1120-01
51
Pin
591 803
9591-0011-00
52
Circlip
591 803
1117-1083-01
53
Washer
591 803
1111-2830-01
54
Gear Wheel
591 803
1111-3075-01
55
Clutch Cable
Inkl. pos 72 _ 591 803
1117-1191-01
56
Support
591 803
1117-1114-01
57
Locating Pin
591 803
9595-0258-00
58
Screw
591 803
9865-0616-16
59
V-Belt
591 803
1117-3017-01
60
Screw
591 803
9997-0845-12
61
Washer
591 803
9699-0062-02
62
Belt cover
591 803
1117-1147-01
63
Assy Kit
591 803
1117-3195-01
64
Blade
591 803
1117-3354-01
65
Battery Holder
591 803
1111-2927-01
66
Ball Bearing
591 803
9549-0053-00
67
Key
591 803
1111-3256-01
68
Cap For Grassbag-Yellow
591 803
1117-1135-01
69
Pulley
591 803
1117-3018-01
70
Pin
591 803
1111-2382-01
71
Transmission assy
Inkl. pos 69, 70 _ 591 803
1117-3376-01
72
Grommet
591 803
1134-3203-04
73
Protection, Wheel
591 803
1117-1161-01
74
Throttle Control
591 803
1117-3185-01
75
Washer
591 803
9699-0024-02
76
Nut
591 803
9799-0531-02
