Spare parts
>
ST S p A
>
Lawn Mower
>
JP 47 H4 JP 47 H4Z (JARDIPRO) (2003)
>
Walkbehind
Back to
JP 47 H4
JP 47 H4Z (JARDIPRO) (2003)
Walkbehind
JP 47 H4
JP 47 H4Z (JARDIPRO) (2003)

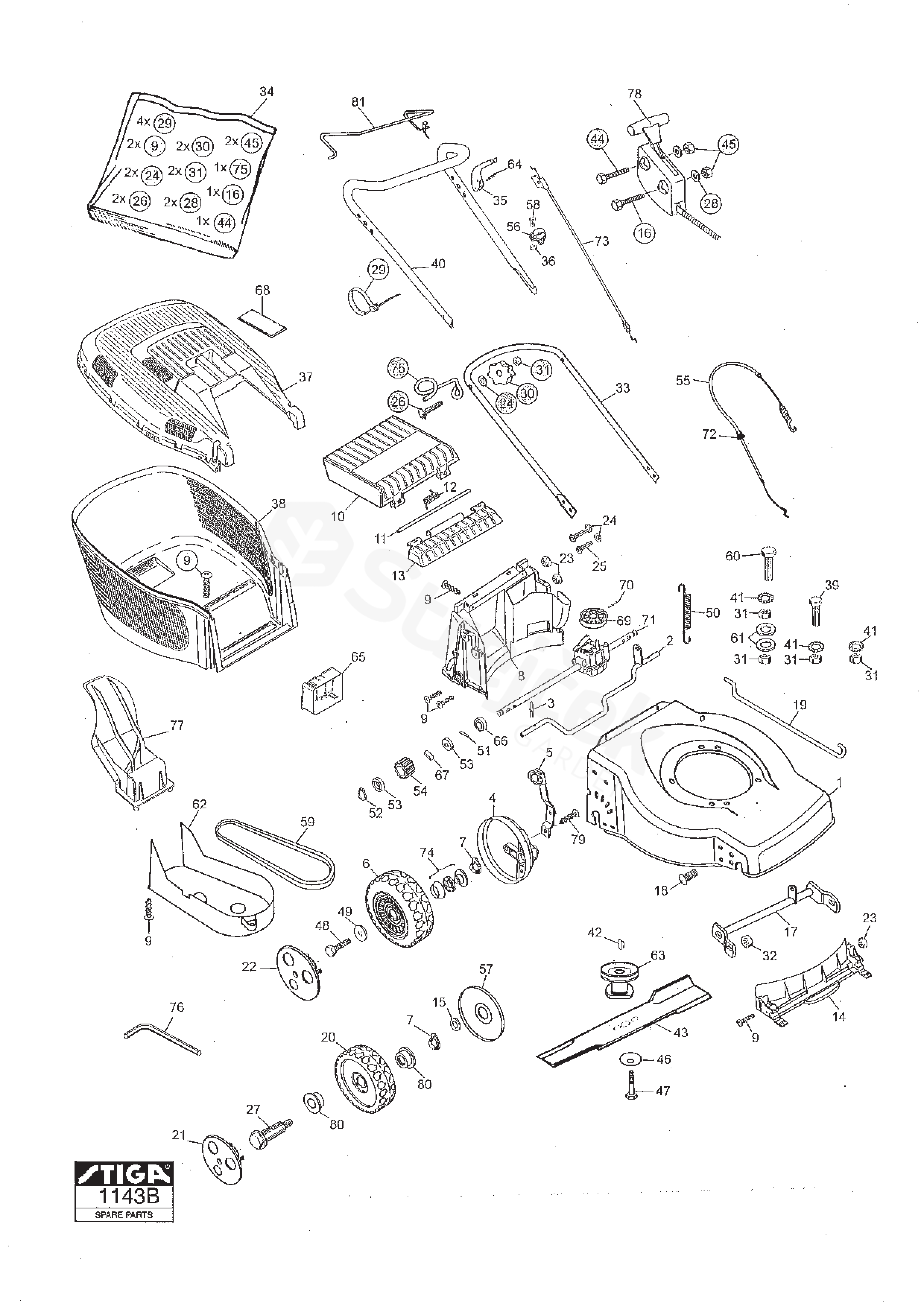

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
JP 47 H4Z (JARDIPRO) (2003)
1
Green Deck
594 603
1117-3263-08
2
Shaft-Backside
594 603
1117-1173-01
3
Locating Pin
594 603
9595-0212-00
4
Wheel Cover
594 603
1117-3256-01
5
Lever, Height Adjustment
594 603
1117-1174-01
6
Wheel
Inkl. pos 74 _ 594 603
1111-2665-01
7
Washer
594 603
9694-0003-00
8
Rear Baffle
594 603
1117-3008-01
9
Screw
594 603
9836-9516-12
10
Rear Flap (Green Ral6032)
594 603
1117-1156-04
11
Shaft For Rear Flap
594 603
1117-1143-01
12
Spring-Rear Flap
594 603
1117-1126-01
13
Rear Flap Fixation (Green Ral6032)
594 603
1117-1155-04
14
Front Baffle
594 603
1117-3007-01
15
Washer
594 603
9699-0078-02
16
Screw
594 603
9997-0560-12
17
Front Shaft
594 603
1117-1334-01
18
Screw
594 603
9865-0816-16
19
Connection Rod
594 603
1117-1130-01
20
Wheel
594 603
1111-3163-01
21
Hub Cap 175 (Grey) 7-11 2
594 603
1111-3084-07
22
Hub Cap-Grey
594 603
1111-3085-07
23
Nut
594 603
1117-1131-01
24
Washer
594 603
9699-0028-02
25
Bolt
594 603
1117-1364-01
26
Screw
594 603
9898-0845-12
27
Wheel Bolt
594 603
1111-3164-01
28
Washer
594 603
9699-0024-02
29
Cable Holder
594 603
9579-0008-00
30
Knob
594 603
1117-3194-01
31
Nut
594 603
9799-0831-02
32
Nut
594 603
9716-0831-02
33
Handle tube-lower
594 603
1117-1149-01
34
Assy Kit
594 603
1117-3195-01
35
Opc Lever (Red)
594 603
1117-3221-01
36
Nut
594 603
9799-0631-02
37
Grassbag-Upper (Green Ral6032)
Inkl. pos 68 _ 594 603
1117-1157-04
38
Lower Grass Bag (Black)
594 603
1117-1218-01
39
Screw
594 603
9997-0835-12
40
Handle, Upper Part
594 603
1117-1095-01
41
Lock washer
594 603
9678-0009-02
42
Key
594 603
9600-0014-00
43
Blade
594 603
1117-3354-01
44
Screw
594 603
9997-0550-16
45
Nut
594 603
9799-0531-02
46
Spring washer
594 603
1117-1065-01
47
Screw
594 603
9987-5251-12
48
Screw
594 603
9997-0614-16
49
Washer
594 603
1117-1175-01
50
Spring
594 603
1117-1120-01
51
Pin
594 603
9591-0011-00
52
Circlip
594 603
1117-1083-01
53
Washer
594 603
1111-2830-01
54
Gear Wheel
594 603
1111-3075-01
55
Clutch Cable
Inkl. pos 72 _ 594 603
1117-1190-01
56
Support
594 603
1117-1114-01
57
Protection, Wheel
594 603
1117-1161-01
58
Screw
594 603
9865-0616-16
59
V-Belt
594 603
1117-3017-01
60
Screw
594 603
9997-0845-12
61
Washer
594 603
9699-0062-02
62
Belt cover
594 603
1117-1147-01
63
Blade mount
594 603
1117-1387-01
64
Locating Pin
594 603
9595-0258-00
65
Battery Holder
594 603
1111-2927-01
66
Ball Bearing
594 603
9549-0053-00
67
Key
594 603
1111-3256-01
68
Cap
594 603
1117-1135-02
69
Pulley
594 603
1117-3018-01
70
Pin
594 603
1111-2382-01
71
Gear Box
Inkl. pos 69, 70 _ 594 603
1117-3016-01
72
Grommet
594 603
1134-3203-04
73
Opc Cable
594 603
1117-1183-01
74
Ball Bearing
594 603
1111-3296-01
75
USE 1117-1392-01
594 603
1117-1116-01
76
Socket Wrench
594 603
1117-1355-01
77
Mulch Plug (Yellow)
594 603
1117-3001-01
78
Throttle Control
594 603
1117-3185-01
79
Screw
594 603
9836-9512-12
80
Ball Bearing
594 603
9549-0053-00
81
Lever
594 603
1117-1374-01
