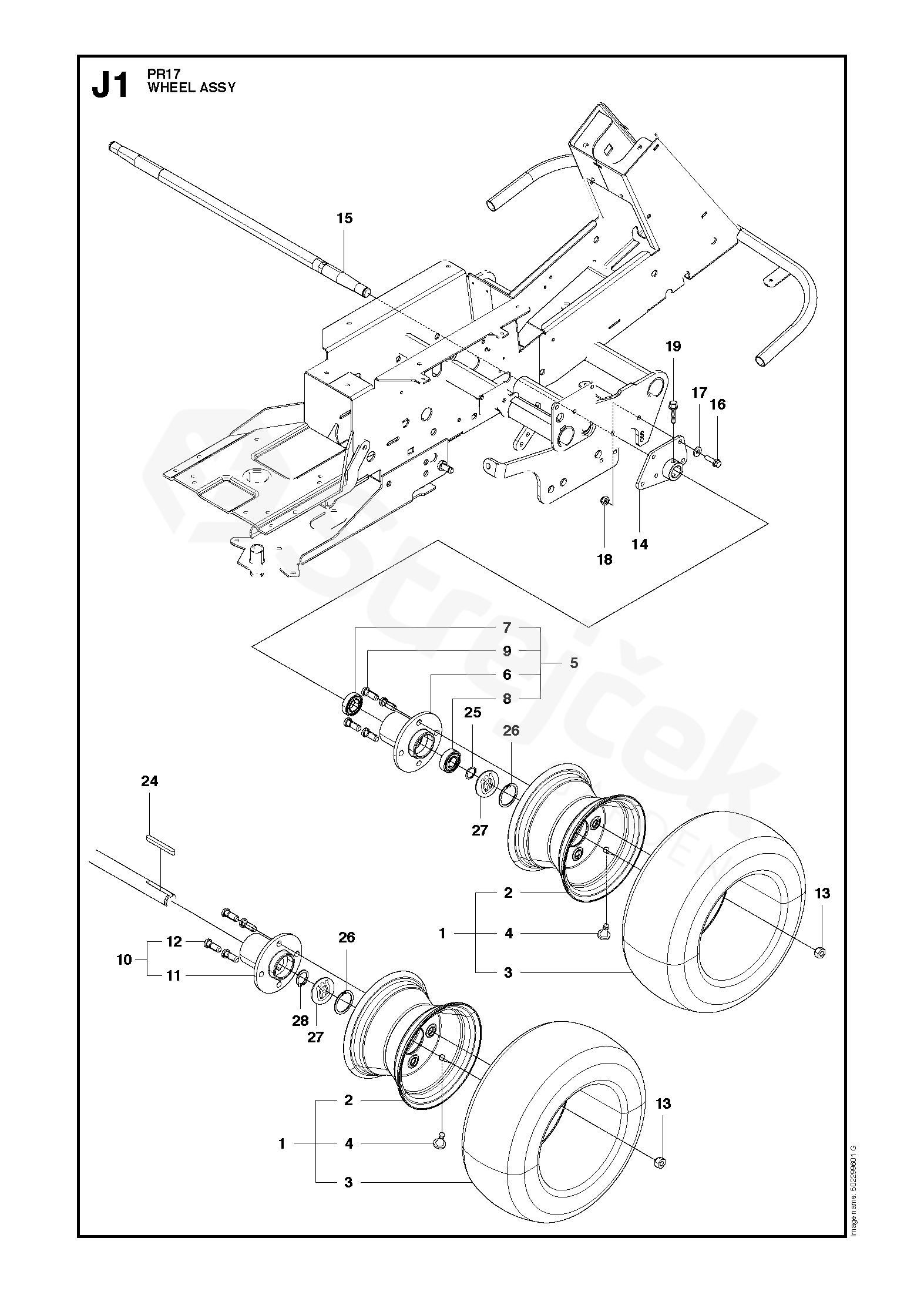

Spare parts > Husqvarna > RIDERS > PR17 PR17, 966772601, 2012-02 > WHEELS & TIRES
Back to
WHEELS & TIRES
PR17 PR17, 966772601, 2012-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PR17, 966772601, 2012-02
1 WHEEL ASSY 504630001
2 RIM 506867801
3 VALVE ASSY 506574301
4 TYRE 535460001
5 HUB ASSY 506864701
6 HUB 506890101
7 BALL BEARING 738210504
8 BALL BEARING 738220419
9 BOLT 506890201
10 HUB ASSY 504638001
11 SLEEVE 504736201
12 BOLT 506890201
13 WHEEL NUT 506865001
14 BRACKET 504619801
15 FRONT AXLE 505453001
16 SCREW EHHFM 506570105
17 PODLOŽKA 734116401
18 LOCK NUT 732211801
19 SCREW EHHFT 725245961
24 KLÍN 506555901
25 CIRCLIP 735312200
26 CIRCLIP 735314110
27 COVER WASHER 577591501
28 CIRCLIP 574458801
