Spare parts > ST S p A > Lawn Mower > KS 463718/BS KS 463718/BS (2018) > Deck
Back to

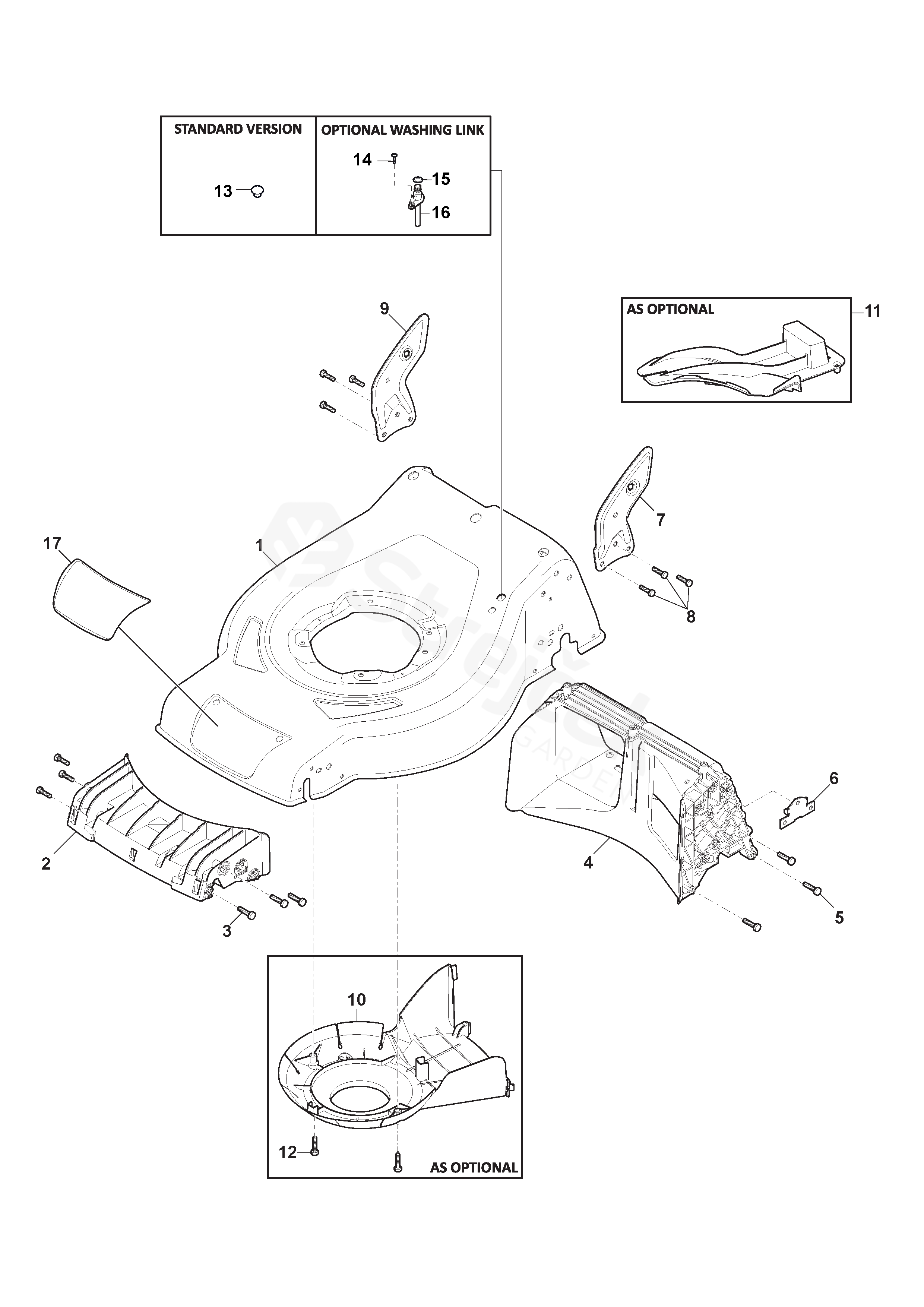

Deck
KS 463718/BS KS 463718/BS (2018)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For KS 463718/BS (2018)
1 Red Deck
To replace the old chassis is necessary to order also pos.17 		381004929/0
2 Front Conveyor Assy 322108301/2
3 Screw 112728699/0
4 Rear Conveyor Assy 322108302/0
6 Plate 322545213/0
7 Left Bracket 381005139/0
8 Screw 112727801/0
9 Right Bracket 381005137/0
10 Belt Protection
As Optional 		322060242/1
11 Mulching Deflector
As Optional 		322140239/1
12 Screw
As Optional 		112728531/0
13 Cap 322820077/1
14 Screw 112728450/0
15 Or Ring 119035000/0
16 Washing Connection 322034002/0
17 Insert
Black - without Mask 		322055605/0
