ST S p A
>
Lawn Mower
>
STARCLIPPER 45 S STARCLIPPER 45 S (2004)
>
Walkbehind
Back to
STARCLIPPER 45 S
STARCLIPPER 45 S (2004)
Walkbehind
STARCLIPPER 45 S
STARCLIPPER 45 S (2004)

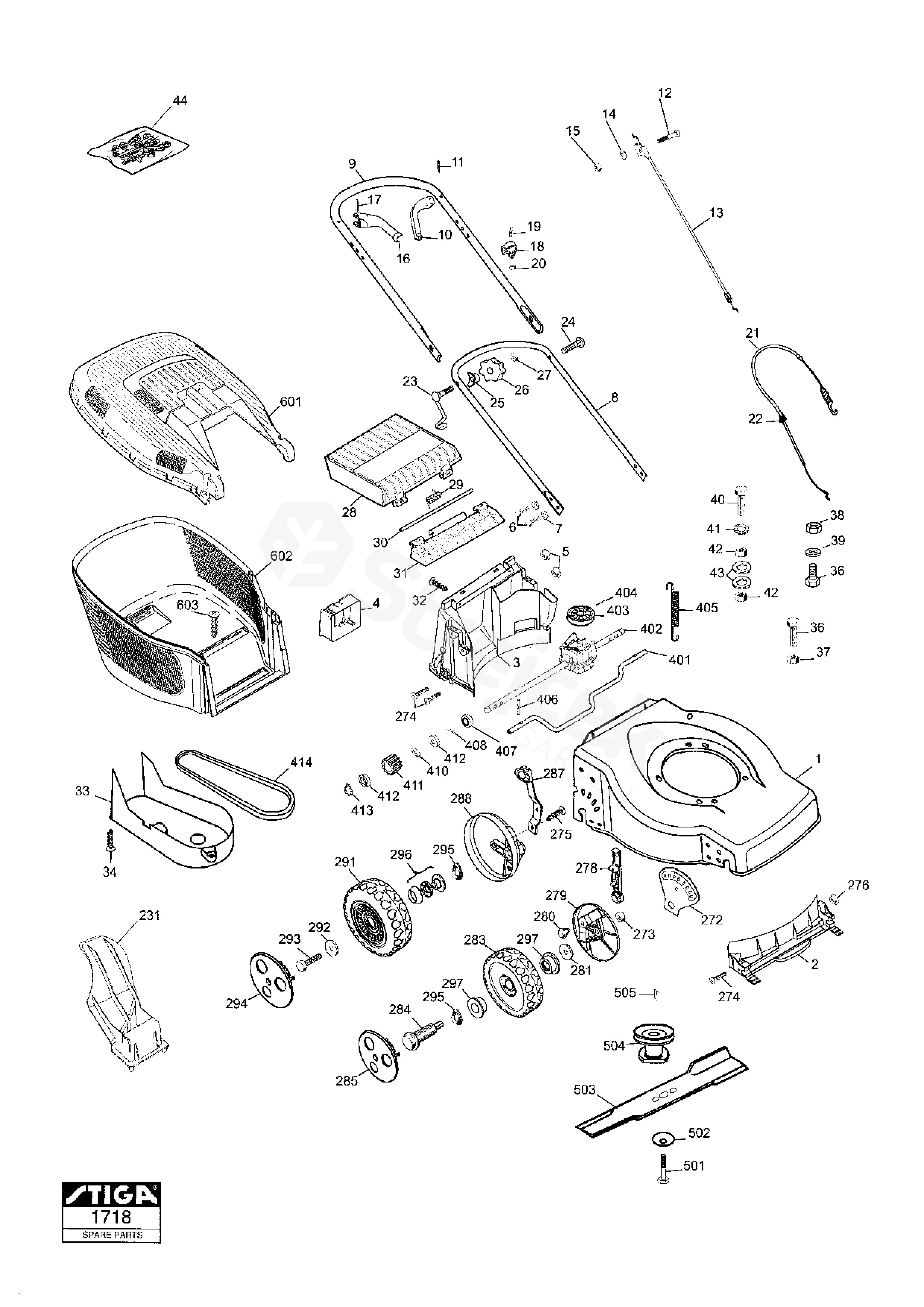

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
STARCLIPPER 45 S (2004)
1
Red Deck
1117-3263-02
2
Front Baffle
1117-3007-01
3
Rear Baffle
1117-3008-01
4
Battery Holder
1111-2927-01
6
Bolt
1117-1364-01
8
Handle-Lower
1136-1411-01
9
Handle-Upper
1136-1413-01
10
Opc Lever (Red)
1117-3221-01
11
Locating Pin
9595-0258-00
12
Screw
9997-0635-12
13
Opc Cable
1136-1405-01
14
Washer
9699-0025-02
15
Nut
9799-0631-02
16
Lever, Rear Drive
1117-3222-01
18
Support
1117-1114-01
19
Screw
9865-0616-16
21
Clutch Cable
1136-1404-01
22
Fair Led
1136-0629-01
23
Screw
1136-0747-01
24
Screw
1136-0620-01
25
Washer
1136-0693-01
26
Knob
1117-3194-01
27
Nut
9799-0831-02
28
Rear Flap (Black)
1117-1156-02
29
Spring-Rear Flap
1117-1126-01
30
Shaft For Rear Flap
1117-1143-01
31
Rear Flap Holder (Black)
1117-1155-02
33
Belt cover
1117-1147-01
36
Screw
9997-0830-16
37
Nut
9739-0831-22
39
Washer
9699-0028-02
40
Bolt
1117-1268-01
41
Lock washer
9678-0009-02
44
Assy Kit
1136-1415-01
272
Sector
1117-1213-01
273
Nut
9716-0831-02
274
Screw
9836-9516-12
275
Screw
9836-9512-12
276
Nut
1117-1131-01
278
Lever, Height Adjustment
1117-1228-01
279
Wheel Plate
1117-1376-01
280
Shoulder Bolt
1117-1182-01
281
Washer
9699-0062-02
283
Wheel
1111-3163-01
284
Wheel Bolt
1111-3164-01
285
Hub Cap (White)
1111-2804-03
287
Lever, Height Adjustment
1117-1174-01
288
Wheel Cover
1117-3256-01
291
Wheel
1111-2663-01
292
Washer
9699-0085-02
293
Screw
1136-1397-01
294
Hub Cap (White)
1111-2815-03
295
Washer
9694-0003-00
296
Ball Bearing
1111-3296-01
297
Ball Bearing
9549-0053-00
401
Shaft-Backside
1117-1160-01
402
Transmission assy
1136-1408-01
403
Pulley
1117-3018-01
404
Pin
1111-2382-01
405
Spring
1117-1120-01
406
Locating Pin
9595-0212-00
408
Pin
9591-0011-00
410
Key
1111-3256-01
411
Gear Wheel
1111-3075-01
412
Washer
1111-2830-01
413
Circlip
1117-1083-01
414
V-Belt
1117-3017-01
501
Screw
1136-0616-01
502
Spring washer
1117-1065-01
503
Blade
1117-3354-01
504
Blade mount
1117-1387-01
505
Key
9600-0014-00
601
Grassbag-Upper (Black)
1117-1157-02
602
Lower Grass Bag (Black)
1117-1218-01
