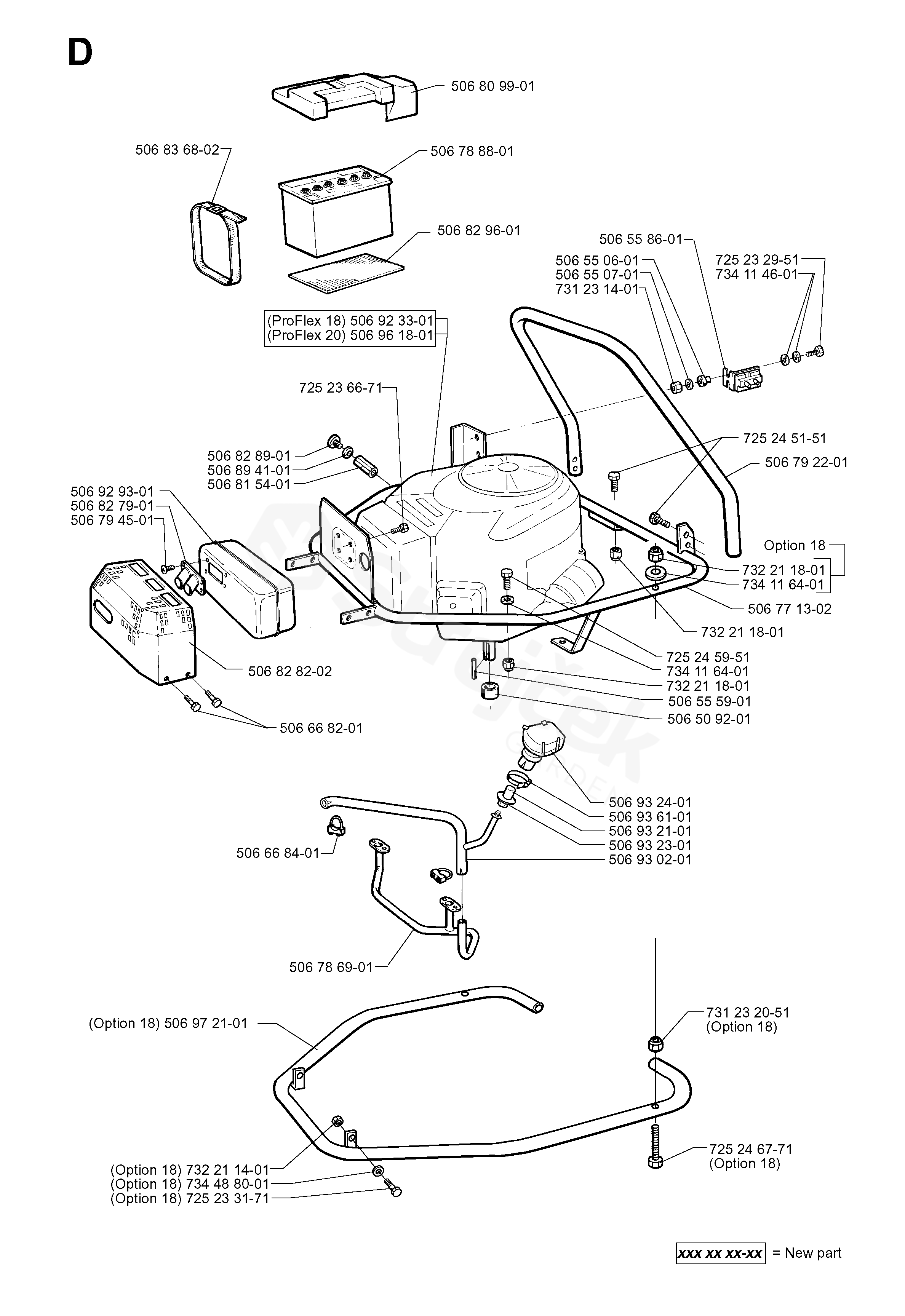

Spare parts - Partlist - PROFLEX 18 PROFLEX 18, 1998-10 - ENGINE

Everything for your machines

PROFLEX 18 PROFLEX 18, 1998-10

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PROFLEX 18, 1998-10

506509201	ROZPĚRNÉ POUZDRO	506509201
506550601	PLUG	506550601
506550701	INSULATING WASHER	506550701
506555901	KLÍN	506555901
506558601	RELAY	506558601
506668201	SCREW	506668201
506668401	CLAMP ASSY	506668401
506771302	RÖRBÅGAR KPL.	506771302
506786901	GRENRÖR KPL.	506786901
506788801	BATTERY	506788801
506792201	TARGABÅGE KPL.	506792201
506794501	SCREW	506794501
506809901	BATTERY COVER	506809901
506815401	OLJEAVTAPPNINGSRÖR	506815401
506827901	DEFLECTOR	506827901
506828202	BRÄNNSKYDD KPL CAT	506828202
506828901	PLUG	506828901
506829601	BATTERY MAT	506829601
506836802	BELT	506836802
506894101	WASHER	506894101
506923301	MOTOR ASSY PF 18 PROFLEX 18	506923301
506929301	MUFFLER	506929301
506930201	EXHAUST PIPE	506930201
506932101	HOSE	506932101
506932301	VALVE	506932301
506932401	FILTER	506932401
506936101	CLIP	506936101
506961801	MOTOR ASSY PF 20 PROFLEX 20	506961801
506972101	HAND GUARD ASSY OPTION 18 OPTION 18	506972101
725232951	SCREW	725232951
725233171	SCREW EHHM OPTION 18	725233171
725236671	SCREW EHHM	725236671
725245151	SCREW	725245151
725245951	SCREW EHHM	725245951
725246771	SCREW EHHM OPTION 18	725246771
731231401	HEXAGON NUT	731231401
731232051	HEXAGON NUT OPTION 18	731232051
732211401	LOCK NUT OPTION 18	732211401
732211801	LOCK NUT OPTION 18	732211801
734114601	PODLOŽKA	734114601
734116401	PODLOŽKA OPTION 18	734116401
734488001	PODLOŽKA OPTION 18	734488001
