Spare parts > Husqvarna > RIDERS > R418 TS AWD R418 TS AWD, 967292001, 2015-04 > TRANSMISSION
Back to

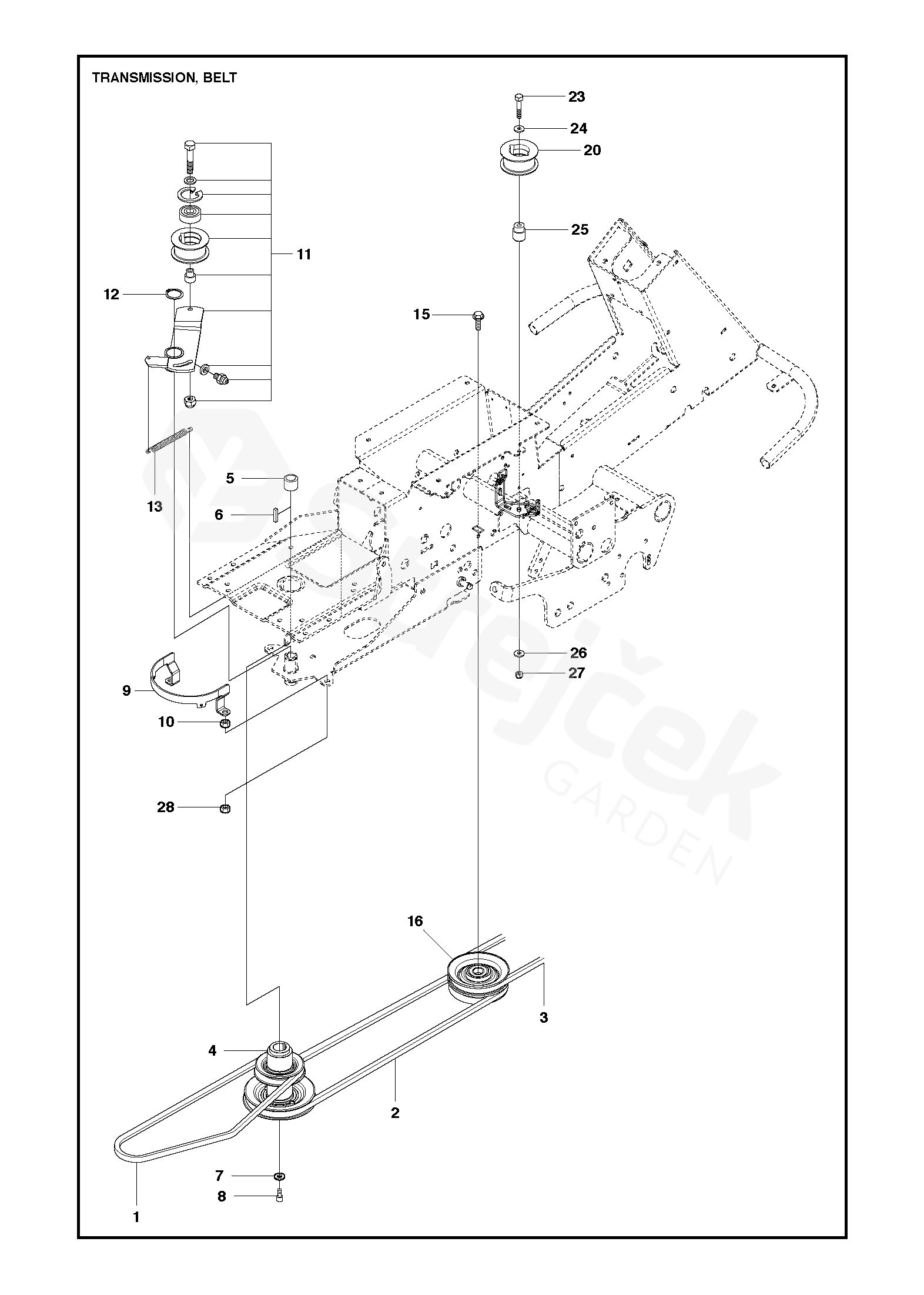

TRANSMISSION
R418 TS AWD R418 TS AWD, 967292001, 2015-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R418 TS AWD, 967292001, 2015-04
1 BELT 577326601
2 BELT 502614901
3 BELT 544113301
4 PULLEY 535482401
5 ROZPĚRNÉ POUZDRO 506509201
6 KLÍN 506555901
7 PODLOŽKA 506597501
8 SCREW UNC 506556002
9 BELT GUIDE 587425201
10 MATICE 732212051
11 BELT TENSIONER ASSY 535484402
12 CIRCLIP 735312600
13 PRUŽINA 506665601
15 SCREW EHHFM 506675402
16 PULLEY 581916302
20 BELT TENSIONER WHEEL ASSY 505153901
23 SCREW EHHM 725246151
24 PODLOŽKA 734116441
25 BUSHING 544002901
26 PODLOŽKA 734116401
27 LOCK NUT 732211801
28 SCREW EHHM 725249371
