Spare parts > ST S p A > Lawn Mower > BA 534 TR BA 534 TR (2002) > Handle, Upper Part
Back to

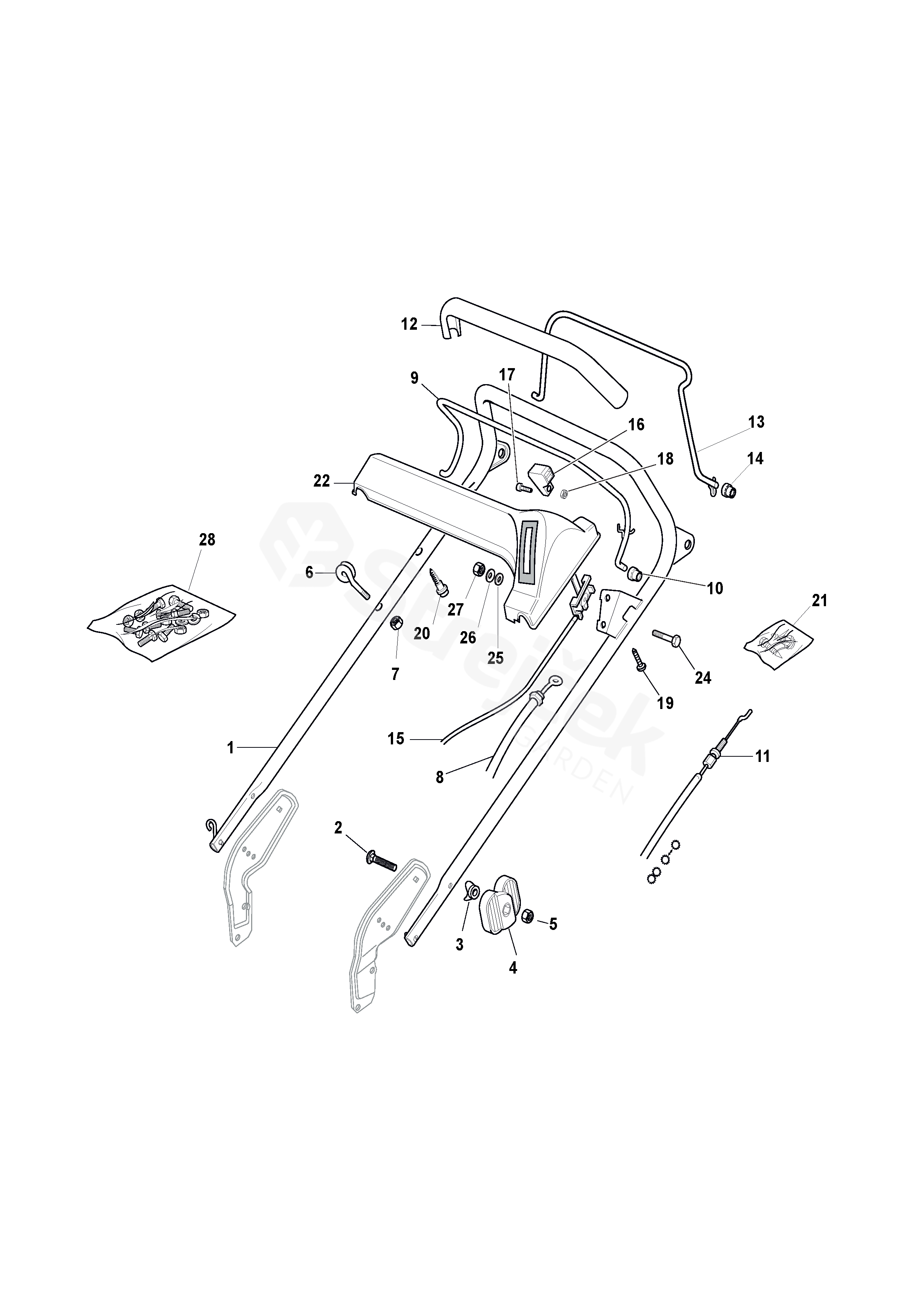

Handle, Upper Part
BA 534 TR BA 534 TR (2002)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For BA 534 TR (2002)
1 Upper Handle
Only for Models with B&S IS 		381006869/1
2 Screw 112819120/0
3 Washer 122671651/0
4 Yellow Knob 322399804/1
5 Nut 112293200/0
6 Spring 122430309/0
7 Nut 112154330/0
8 Cable, Thread Engine Brake
Honda / GGP Engine 		181000616/1
9 Lever, Engine Brake 181003291/2
10 Bushing 122041966/0
11 Cable Rear Drive
(General Transmission) 		381000669/0
12 Handgrip Black 122291050/0
13 Driving Lever 181003288/1
14 Bushing 322041965/1
15 Throttle Cable
ST./Honda/Tecumseh Engine 		181007092/0
16 Black Knob 122399801/0
17 Screw 112726388/0
18 Nut 112290800/0
19 Screw 112728460/0
20 Screw 122943006/0
21 Outfit, Screws 381008499/1
22 Red Dashboard 422120150/0
23 Throttle Label
Honda Engine 		114356692/0
24 Screw 112788910/0
25 Washer 112523020/0
26 Grower 112581500/0
27 Nut 112291000/0
28 Outfit, Screws 381008610/0
