Spare parts > Husqvarna > RIDERS > R422 Ts AWD R422 Ts AWD, 966772901, 2011-11 > TRANSMISSION
Back to

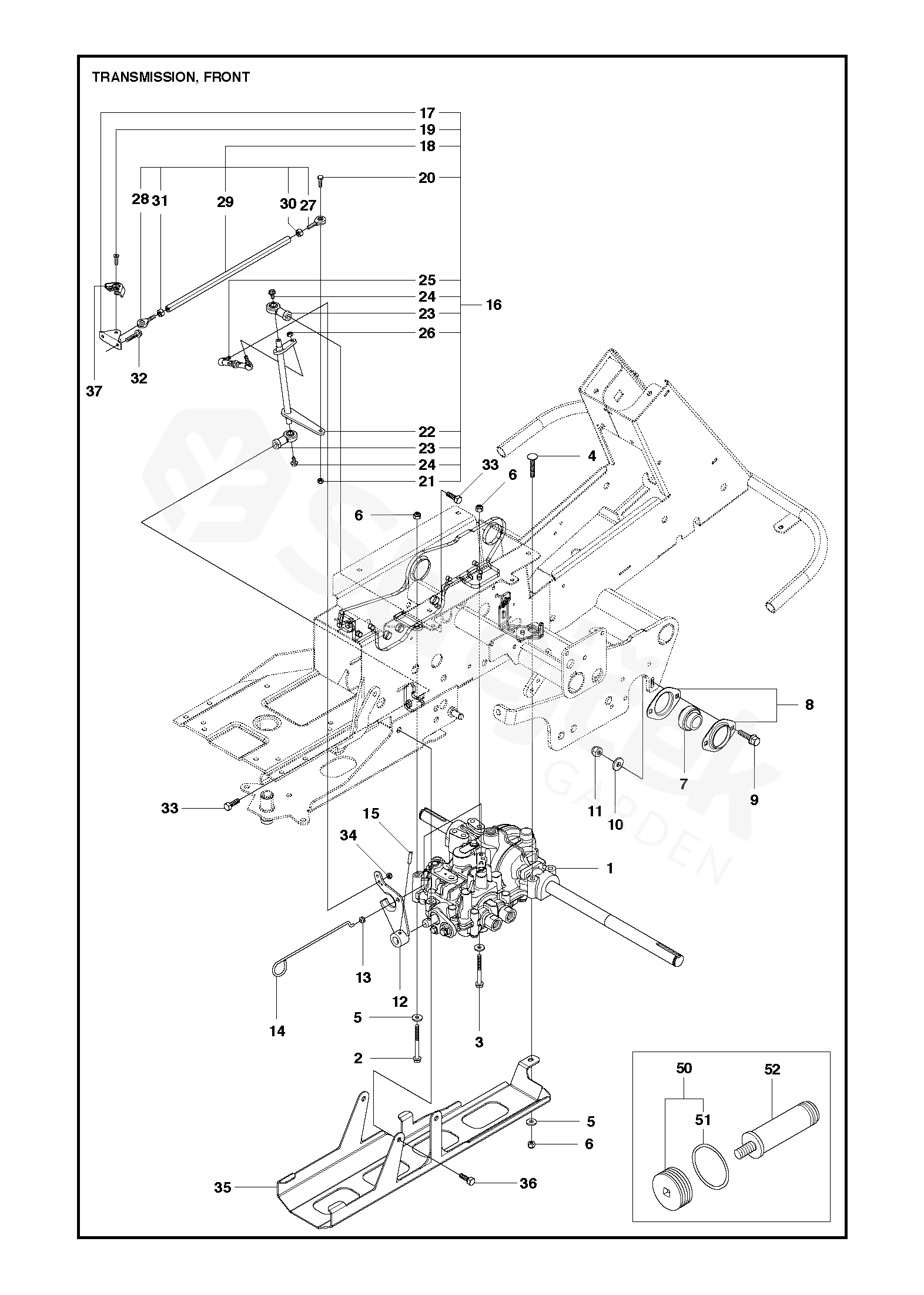

TRANSMISSION
R422 Ts AWD R422 Ts AWD, 966772901, 2011-11
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R422 Ts AWD, 966772901, 2011-11
1 TRANSMISSION 577532001
2 SCREW EHHM 725246751
3 SCREW EHHM 725246451
4 SCREW EHHM 535423803
5 PODLOŽKA 734116401
6 LOCK NUT 732211801
7 BEARING 544008902
8 BEARING HOUSING 544009002
9 SCREW EHHFM 506570105
10 PODLOŽKA 734116401
11 LOCK NUT 732211801
12 LEVER 578291901
13 BUSHING 503735801
14 ARM 535499701
15 ČEP PRUŽINY 721434701
16 LINK ASSY 544841503
17 BRACKET 535492802
18 ROD 544456701
19 SCREW 544841701
20 SCREW EHHM 725237071
21 HEXAGON LOCKING NUT 732251601
22 LEVER 535497402
23 ROD END 506951701
24 SCREW EHHFM 535475212
25 ADJUSTMENT ROD 544441901
26 HEXAGON LOCKING NUT 732251601
27 ROD END 535486601
28 ROD END 535486602
29 ROD 535486503
30 HEXAGON NUT 731231601
31 HEXAGON NUT 503221018
32 HEXAGONAL SCREW M6X12 725236651
33 SCREW EHHM 725249371
34 LOCK NUT 732211601
35 SKID PLATE 544845601
36 SCREW EHHFM 506570104
37 COVER 585001501
50 KIT 574515101
51 O-RING 574515201
52 FILTER 535402819
