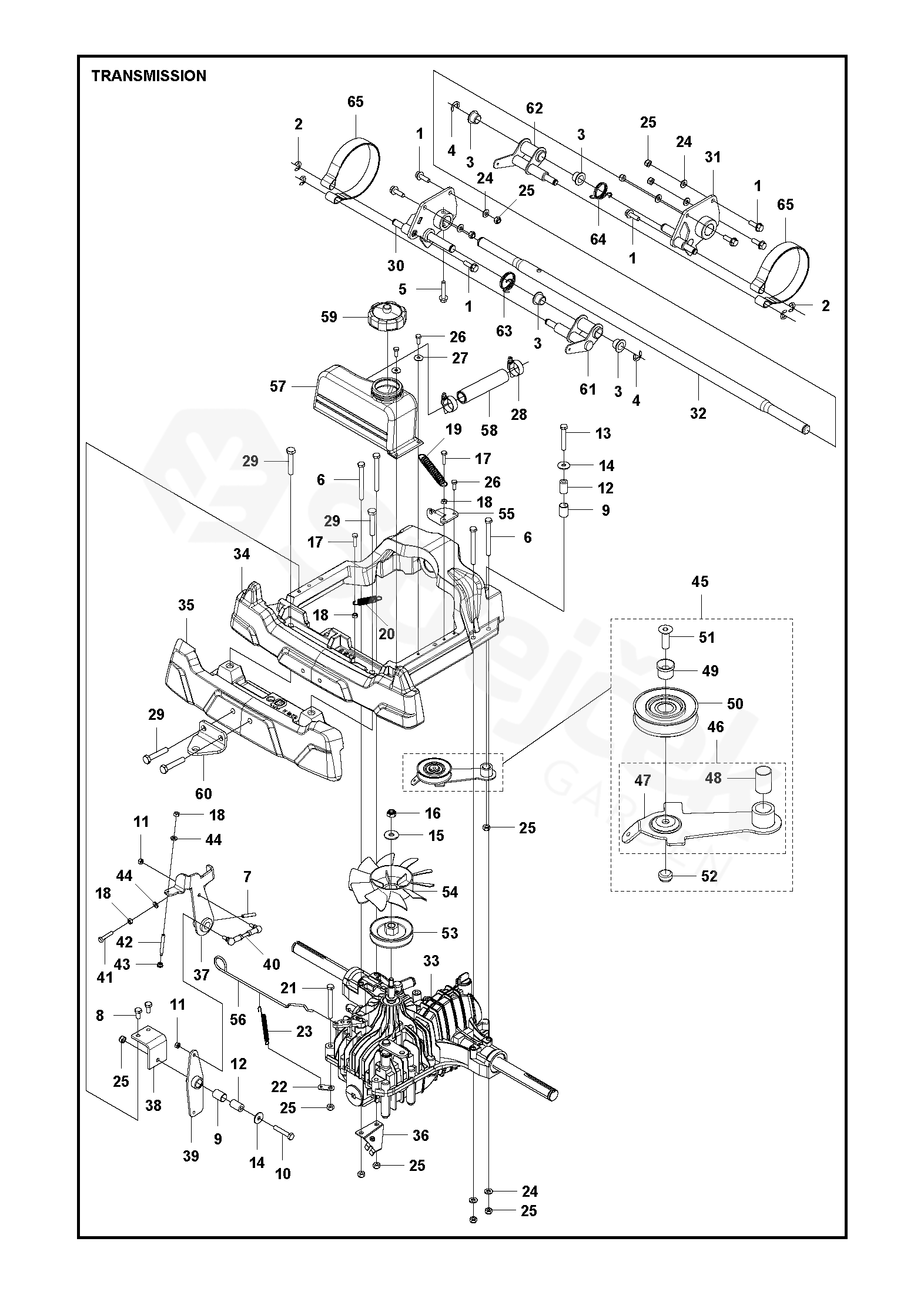

RC 318T RC 318T, 967628701

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For RC 318T, 967628701

1	SCREW EHHFM	506570105
2	E-CLIP	735311520
3	BEARING	584871302
4	E-CLIP	735311820
5	SCREW EHHFT	725245961
6	SCREW EHHM	504628201
7	ČEP PRUŽINY	721434701
8	SCREW	725244951
9	BUSHING	506986103
10	SCREW EHHM	725246051
11	HEXAGON LOCKING NUT	732251601
12	PIPE	506992001
13	SCREW EHHM	725246251
14	PODLOŽKA	734116441
15	PODLOŽKA	734117441
16	MATICE	732212051
17	SCREW EHHM	725237271
18	HEXAGON NUT	731231601
19	PRUŽINA	506542501
20	DRAW SPRING	506535603
21	SCREW	725246651
22	ČLÁNEK	506599301
23	PRUŽINA	506834301
24	PODLOŽKA	734116401
25	LOCK NUT	732211801
26	SCREW EHHM	725236871
27	PODLOŽKA	734115441
28	HADICOVÁ SVĚRKA	505443601
29	SCREW EHHM	725250271
30	LIST	582565701
31	LIST	582565702
32	HŘÍDEL KOLA	589032601
33	PŘEVODOVKA	501114101
34	FRAME ASSY	501750801
35	PROTIZÁVAŽÍ	582051101
36	BRACKET	506991501
37	PÁKA	582817401
38	LEVER	506992101
39	PÁKA	582859301
40	ADJUSTMENT ROD	506992201
41	SCREW EHHM	725237471
42	SCREW	589404001
43	PAD	589403301
44	PODLOŽKA	503230405
45	BELT TENSIONER ASSY	506993001
46	BELT TENSIONER ASSY	535406301
47	BELT TENSIONER ASSY	506993101
48	BUSHING	506986103
49	POUZDRO	506993301
50	BELT TENSIONER WHEEL	506947001
51	SCREW IHCSFM	725645301
52	LOCK NUT	732211801
53	PULLEY	506991401
54	FAN	506948101
55	BRACKET	506992801
56	ARM	505490101
57	EXPANSION TANK	535458101
58	HADICE	535458301
59	TANK CAP ASSY	506673301
60	HITCH	506889901
61	DRŽÁK	582527501
62	DRŽÁK	582527502
63	PRUŽINA	582762701
64	PRUŽINA	582762702
65	PÁSEK BRZDY	582402901
