Spare parts > Husqvarna > RIDERS > R111 B RIDER 111 B, 965996885, 2010-07 > MOWER DECK / CUTTING DECK
Back to

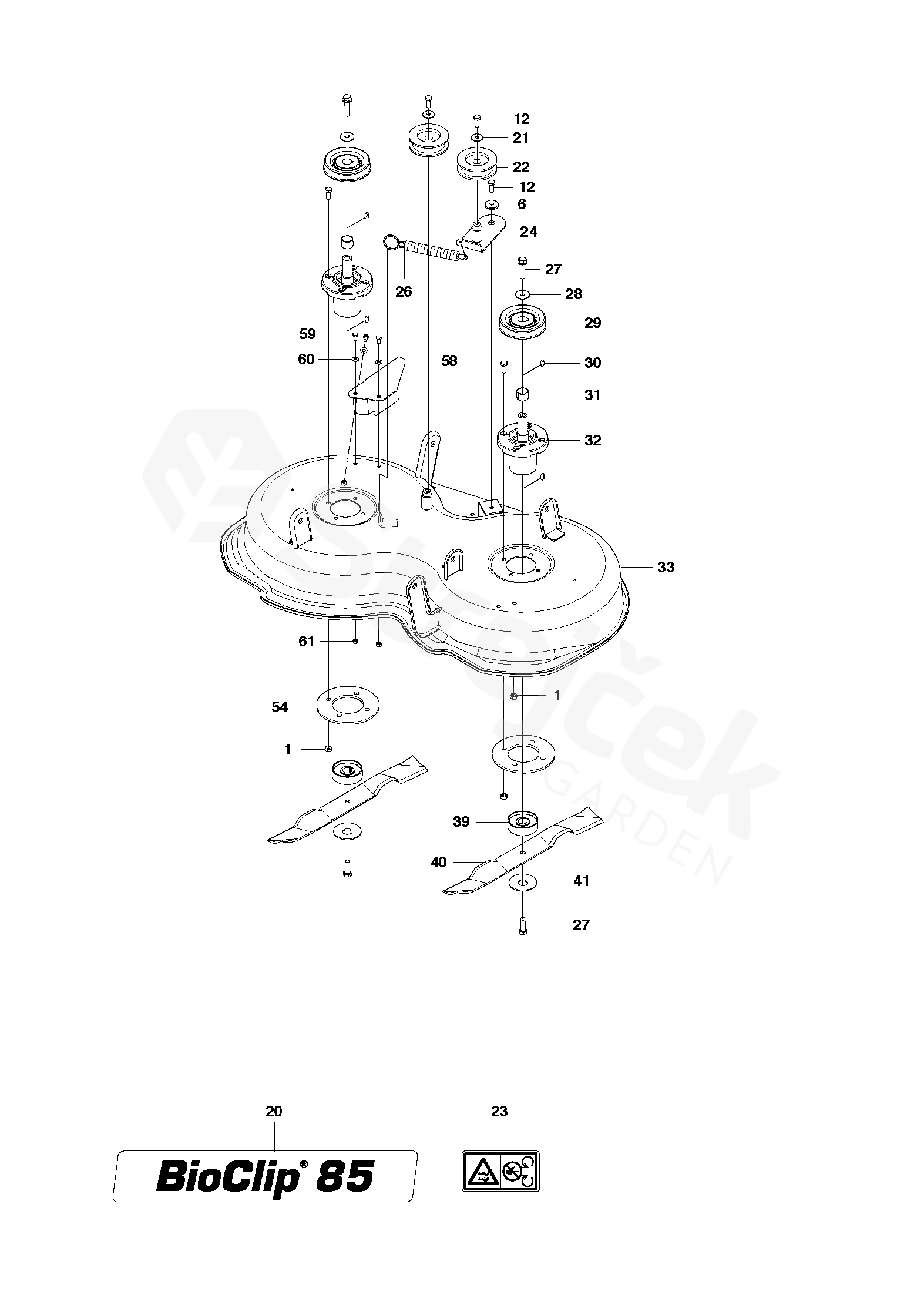

MOWER DECK / CUTTING DECK
R111 B RIDER 111 B, 965996885, 2010-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RIDER 111 B, 965996885, 2010-07
1 LOCK NUT 732211801
6 PODLOŽKA 506918702
12 SCREW EHHM 725245371
20 DECAL 574849701
21 PODLOŽKA 506918702
22 BELT TENSIONER WHEEL 506793202
23 DECAL 574510001
24 BELT TENSIONER 573969501
26 SPRING 584298801
27 SCREW 544400501
28 PODLOŽKA 734117771
29 PULLEY 574460701
30 PARALELNÍ KLÍN 506533501
31 TUBE 573966501
32 BEARING HOUSING ASSY 573968601
33 CUTTING DECK 522450001
39 ADAPTER 573966101
40 BLADE 522449501
41 KNIFE PLATE 506792301
54 WASHER 575553301
58 SHEET 576209001
59 SCREW EHHM 725236671
60 SPRING 734115601
61 LOCK NUT 732211601
