Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
RIDERS
>
RC 320Ts AWD RC 320Ts AWD, 967628801
>
AUGER
Back to
RC 320Ts AWD
RC 320Ts AWD, 967628801

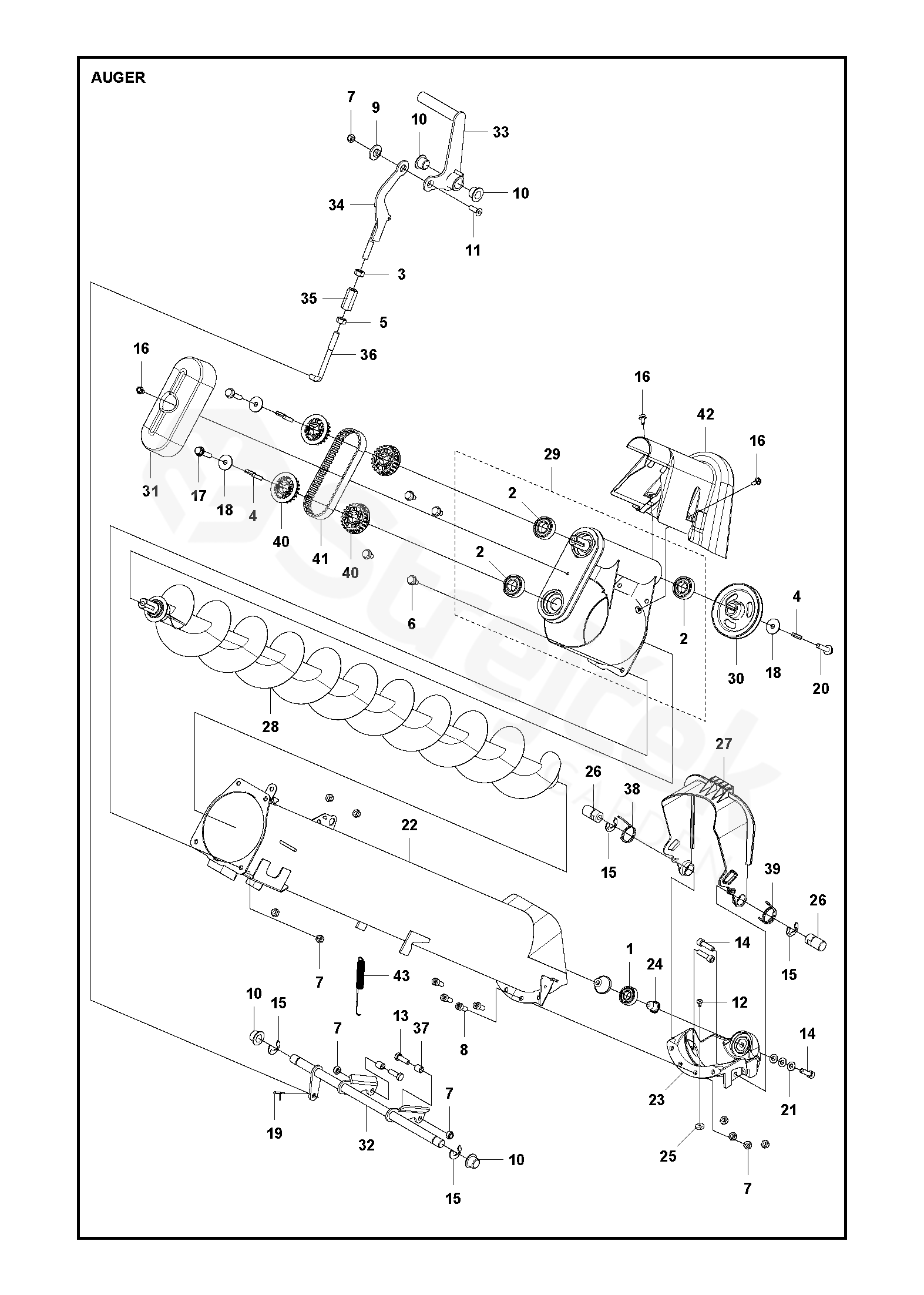

AUGER
RC 320Ts AWD
RC 320Ts AWD, 967628801
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
RC 320Ts AWD, 967628801
1
BALL BEARING
738220219
2
BALL BEARING
582508101
3
MATICE
506897601
4
PARALELNÍ KLÍN
506533503
5
HEXAGON NUT
731232051
6
SCREW EHHFM
506570103
7
LOCK NUT
732211801
8
SCREW IHSCM
725545101
9
PODLOŽKA
574874101
10
BEARING
584871302
11
SCREW IHCSFM
725645301
12
SCREW ITXPANTT
502435201
13
SCREW EHHM
725245351
14
SCREW IHSCM
725545501
15
E-CLIP
735312220
16
SCREW EHHFM
535475212
17
SCREW
582508501
18
BELT COVER
544221601
19
SPLIT PIN
721618301
20
SCREW EHHFM
506570106
21
PODLOŽKA
734116401
22
TRUBKA
588972301
23
OPĚRNÁ MISKA
588687401
24
POUZDRO
588973101
25
POUZDRO
588973301
26
POUZDRO
588973201
27
CAP
589258301
28
AUGER
590029901
29
AUGER
590038501
30
PULLEY ASSY
588831401
31
LID
589258401
32
HŘÍDE, MONTÁŽNÍ SESTAVA
589196701
33
LEVER ASSY
589196401
34
LINK ASSY
589195901
35
ADJUSTMENT ROD
544451501
36
ROD
589197101
37
TRUBKA
589283501
38
PRUŽINA
501082101
39
PRUŽINA
501082102
40
PULLEY
501090901
41
BELT
589973701
42
COVER
501099101
43
PRUŽINA
582000001
