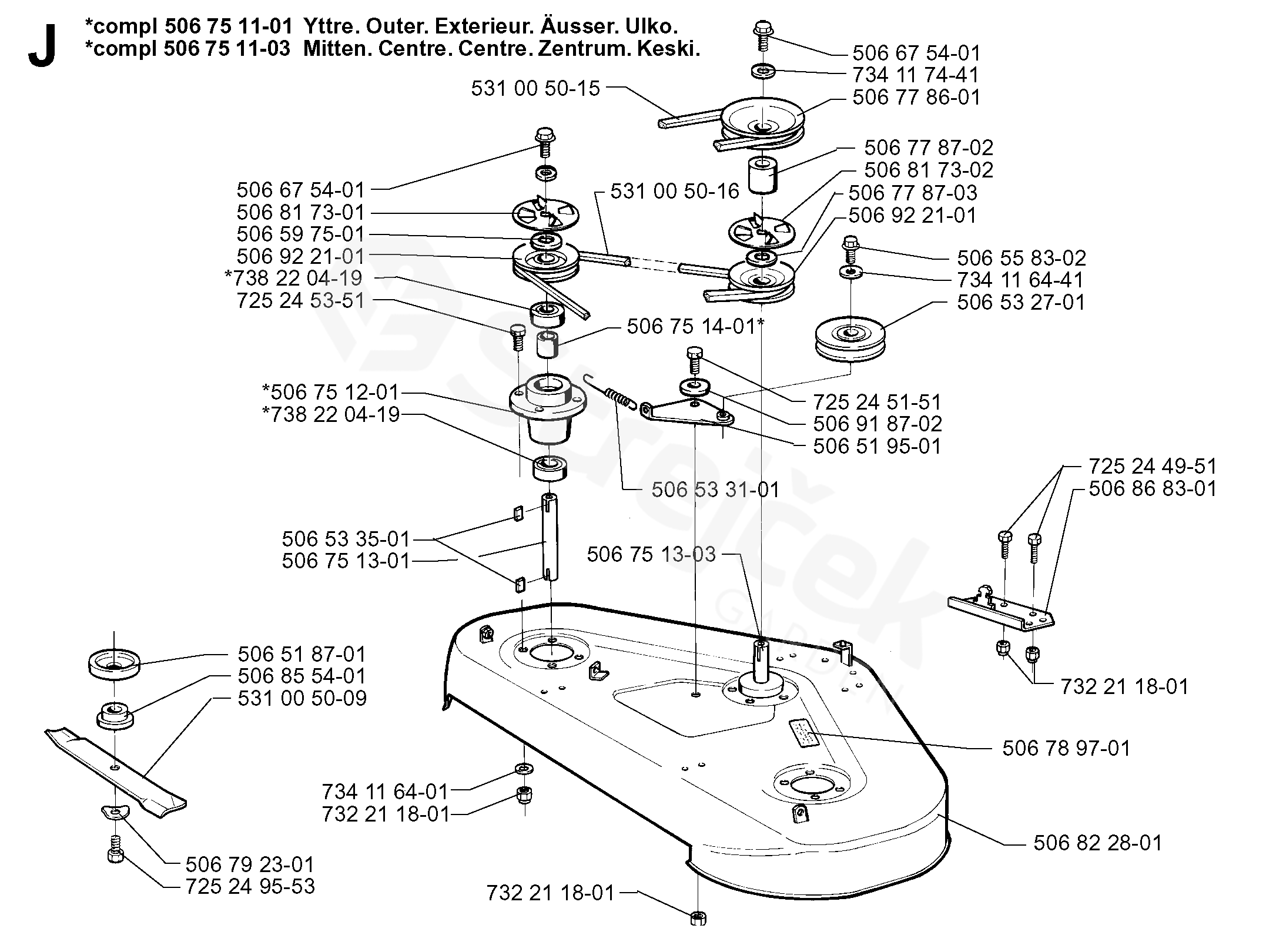

Spare parts - Partlist - RIDER 1030 RIDER 1030 BIOCLIP, 1997-05 - 48"/122CM CUTTING DECK

Everything for your machines

RIDER 1030 RIDER 1030 BIOCLIP, 1997-05

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For RIDER 1030 BIOCLIP, 1997-05

506518701	DUST COVER	506518701
506519501	ARM New 50 mm	506519501
506532701	PULLEY	506532701
506533101	PRUŽINA	506533101
506533501	PARALELNÍ KLÍN	506533501
506558302	SCREW EHHFT	506558302
506597501	PODLOŽKA	506597501
506675401	SCREW EHHFM	506675401
506751101	BLADE HOUSING ASSY YTTRE.	506751101
506751103	BLADE HOUSING ASSY MITTEN. MITTEN.	506751103
506751201	BEARING HOUSING	506751201
506751301	SHAFT	506751301
506751303	SHAFT	506751303
506751401	SPACER	506751401
506778601	PULLEY	506778601
506778702	SPACER	506778702
506778703	SPACER	506778703
506789701	LABEL	506789701
506792301	KNIFE PLATE	506792301
506817301	FAN	506817301
506817302	FAN	506817302
506822801	DECK SHELL ASSY	506822801
506855401	BLADE BRACKET	506855401
506868301	BRACKET	506868301
506918702	PODLOŽKA	506918702
506922101	PULLEY	506922101
531005009	BLADE	531005009
531005015	BELT	531005015
531005016	BELT	531005016
725244951	SCREW	725244951
725245151	SCREW	725245151
725245351	SCREW EHHM	725245351
725249553	SCREW EHHM	725249553
732211801	LOCK NUT	732211801
734116401	PODLOŽKA	734116401
734116441	PODLOŽKA	734116441
734117441	PODLOŽKA	734117441
738220419	BALL BEARING	738220419
