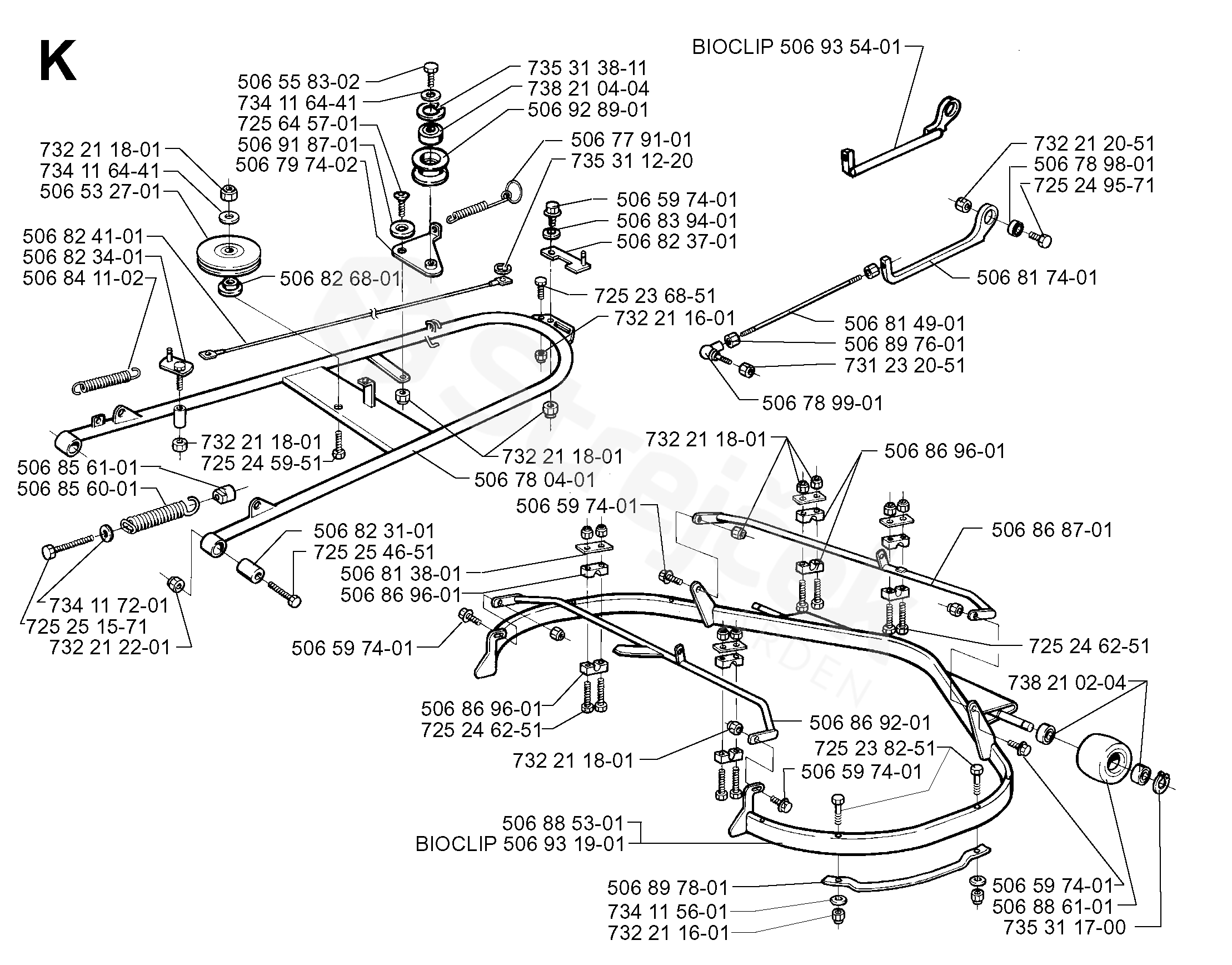

Spare parts - Partlist - RIDER 1030 RIDER 1030 BIOCLIP, 1997-05 - FRAME

Everything for your machines

RIDER 1030 RIDER 1030 BIOCLIP, 1997-05

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For RIDER 1030 BIOCLIP, 1997-05

506532701	PULLEY	506532701
506558302	SCREW EHHFT	506558302
506597401	SCREW EHHFM	506597401
506779101	SPRING	506779101
506780401	FRAME	506780401
506789801	LEDLAGER DIN648G10-D	506789801
506789901	VINKELLÄNK DIN 71802	506789901
506797402	SPÄNNARM KPL	506797402
506813801	REINFORCING PLATE	506813801
506814901	ROD	506814901
506817401	LÄNKSTÅNG	506817401
506823101	BUSHING	506823101
506823401	HITCH	506823401
506823701	CATCH	506823701
506824101	WIRE ASSY	506824101
506826801	BUSHING	506826801
506839401	PRUŽNÁ PODLOŽKA	506839401
506841102	SPRING	506841102
506856001	SPRING	506856001
506856101	NUT	506856101
506868701	FRONT CROSS TUBE ASS	506868701
506869201	REAR CROSS TUBES ASS	506869201
506869601	BEARING	506869601
506885301	HAND GUARD ASSY	506885301
506886101	WHEEL	506886101
506897601	MATICE	506897601
506897801	SKYDDSRÖR	506897801
506918701	WASHER	506918701
506928901	PULLEY	506928901
506931901	PROTECTIVE TUBING BIO 103 BIOCLIP	506931901
506935401	LÄNKSTÅNG KPL. BIOCLIP BIOCLIP	506935401
725236851	SCREW	725236851
725238251	SCREW EHHM	725238251
725245951	SCREW EHHM	725245951
725246251	SCREW EHHM	725246251
725249571	SCREW EHHM	725249571
725251571	SCREW EHHM	725251571
725254651	SCREW EHHM	725254651
725645701	SCREW IHCSFM	725645701
731232051	HEXAGON NUT	731232051
732211601	LOCK NUT	732211601
732211801	LOCK NUT	732211801
732212051	MATICE	732212051
732212201	MATICE	732212201
734115601	SPRING	734115601
734116441	PODLOŽKA	734116441
734117201	HEXAGON NUT	734117201
735311220	E-CLIP	735311220
735311700	CIRCLIP	735311700
735313811	CIRCLIP	735313811
738210204	BALL BEARING	738210204
738210404	BALL BEARING	738210404
