ST S p A
>
Lawn Mower
>

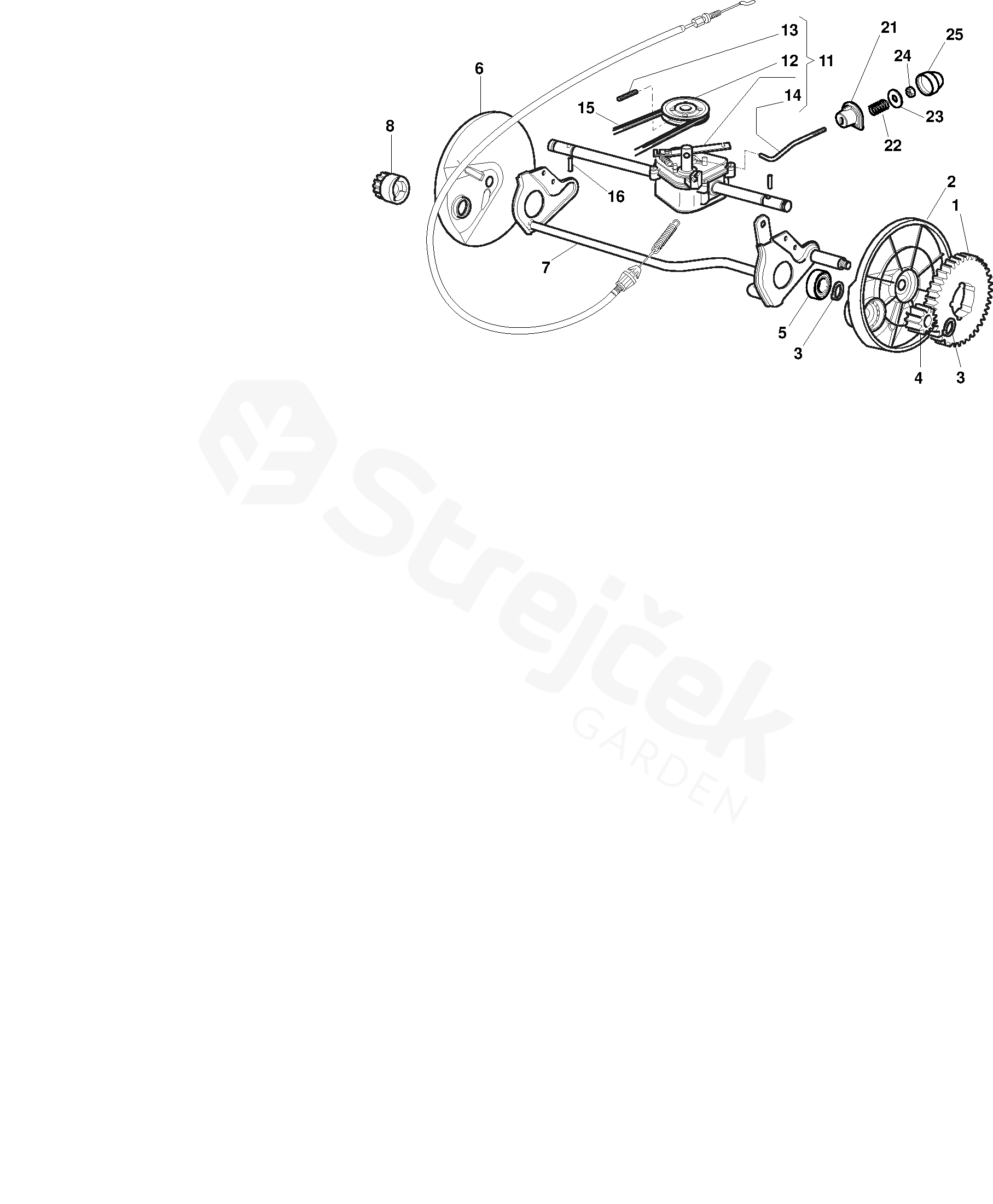

TOP CLASS RL 534 TR TOP CLASS RL 534 TR (2007)
>
Transmission
Back to
TOP CLASS RL 534 TR
TOP CLASS RL 534 TR (2007)
Transmission
TOP CLASS RL 534 TR
TOP CLASS RL 534 TR (2007)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TOP CLASS RL 534 TR (2007)
1
Ring Gear
122120105/1
2
Left Wheel Protection
122600093/0
3
Seeger
112608600/0
4
Left pinion
122570120/1
5
Bearing
119216035/0
6
Right Wheel Protection
122600092/0
7
Rear Wheel Axle
381000147/0
8
Right Pinion
122570110/1
11
Gear Box
(France Reducteurs)
181003059/2
12
Pulley
122601909/0
13
Elastic Pin
ø5X32
112645705/0
14
Adjustment Rod
(General Transmission)
122033283/0
15
Belt
135063902/0
16
Pin
122753000/0
21
Bushing
122041957/1
22
Spring
122450063/0
23
Washer
322680009/0
24
Nut
112154510/0
25
Hub Cover
122110230/0
