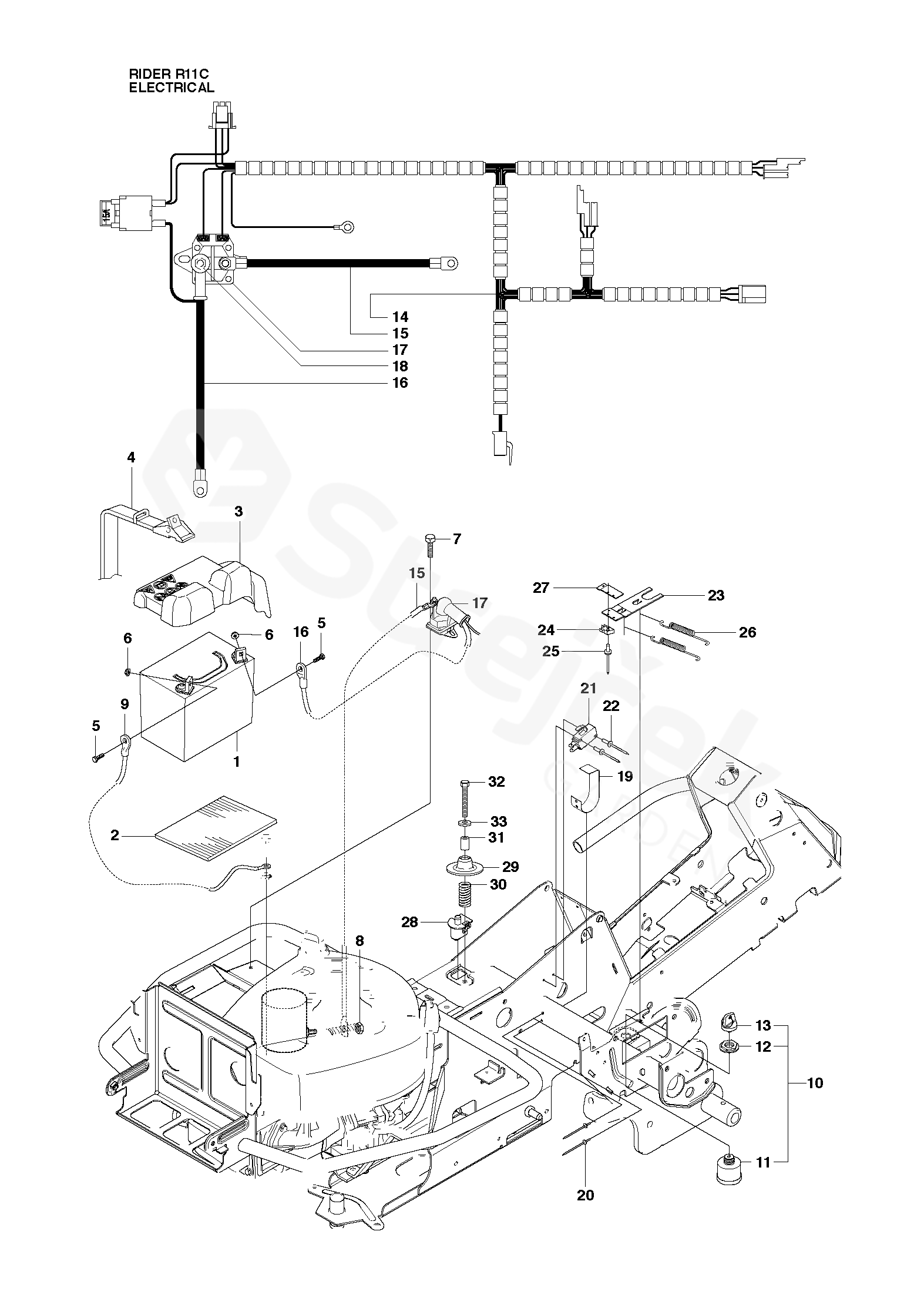

Spare parts > Husqvarna > RIDERS > RIDER 11 C RIDER 11 C, 965094201, 2010-07 > ELECTRICAL
Back to
ELECTRICAL
RIDER 11 C RIDER 11 C, 965094201, 2010-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RIDER 11 C, 965094201, 2010-07
1 BATTERY 510138501
2 BATTERY MAT 535441101
3 COVER 510026901
4 BELT 506836802
5 SCREW EHHM 522622101
6 NUT 522624301
7 SCREW EHHFT 725236461
8 MATICE 506899801
9 CABLE 576183801
10 IGNITION SWITCH 544442101
11 IGNITION SWITCH 544442201
12 MATICE 544442301
13 IGNITION KEY 544442401
14 WIRING 544926001
15 CABLE 544928601
16 CABLE 544926104
17 RELAY 544439801
18 MATICE 506899801
19 PLATE SPRING 506909301
20 BLIND RIVET 722783902
21 SWITCH 574316001
22 NÝT 544440701
23 BRACKET 506909402
24 SWITCH 535469101
25 NÝT 544440701
26 PRUŽINA 506834301
27 ADAPTER 504711601
28 SWITCH 506909601
29 SPRING WASHER 506909701
30 SPRING 544441201
31 SPACING TUBE 506909902
32 SCREW EHHM 725246051
33 PODLOŽKA 734116401
