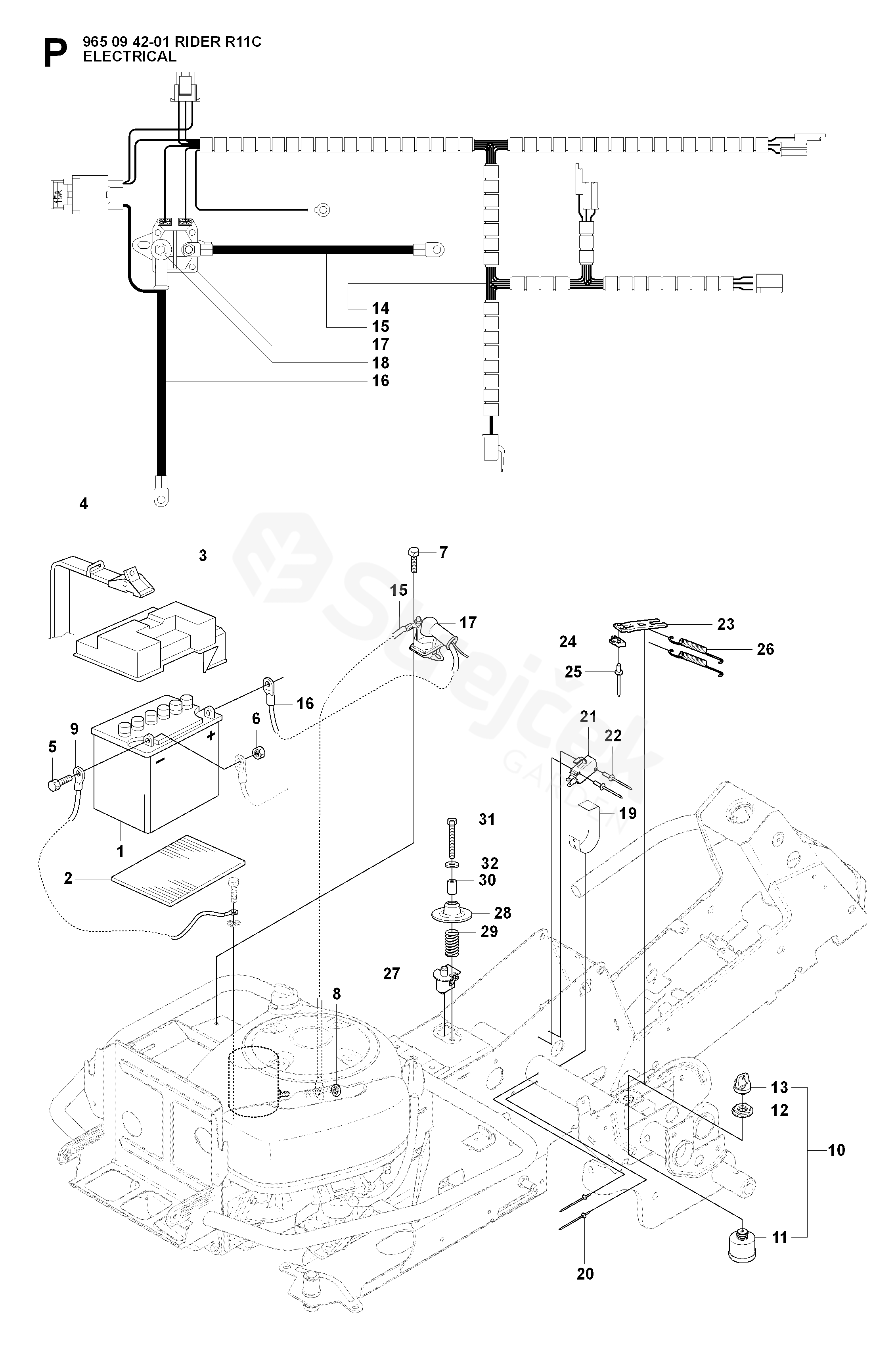

Spare parts > Husqvarna > RIDERS > RIDER 11 C RIDER 11 C, 965094201, 2007-01 > ELECTRICAL
Back to
ELECTRICAL
RIDER 11 C RIDER 11 C, 965094201, 2007-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RIDER 11 C, 965094201, 2007-01
1 BATTERY 506788801
2 BATTERY MAT 535441101
3 BATTERY COVER 506809901
4 BELT 506836802
5 SCREW EHHM 725237071
6 HEXAGON NUT 731231601
7 SCREW EHHFT 725236461
8 MATICE 506899801
9 CABLE 544967601
10 IGNITION SWITCH 544442101
11 IGNITION SWITCH 544442201
12 MATICE 544442301
13 IGNITION KEY 544442401
14 WIRING 544926001
15 CABLE 544928601
16 CABLE 544926101
17 RELAY 544439801
18 MATICE 506899801
19 PLATE SPRING 506909301
20 BLIND RIVET 722783902
21 SWITCH 535469101
22 NÝT 544440701
23 BRACKET 506909401
24 SWITCH 535469101
25 NÝT 544440701
26 PRUŽINA 506834301
27 SWITCH 506909601
28 SPRING WASHER 506909701
29 SPRING 544441201
30 SPACING TUBE 506909902
31 SCREW EHHM 725246051
32 PODLOŽKA 734116401
