Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
RIDERS
>
RIDER 1200 RIDER 1200, 1997-05
>

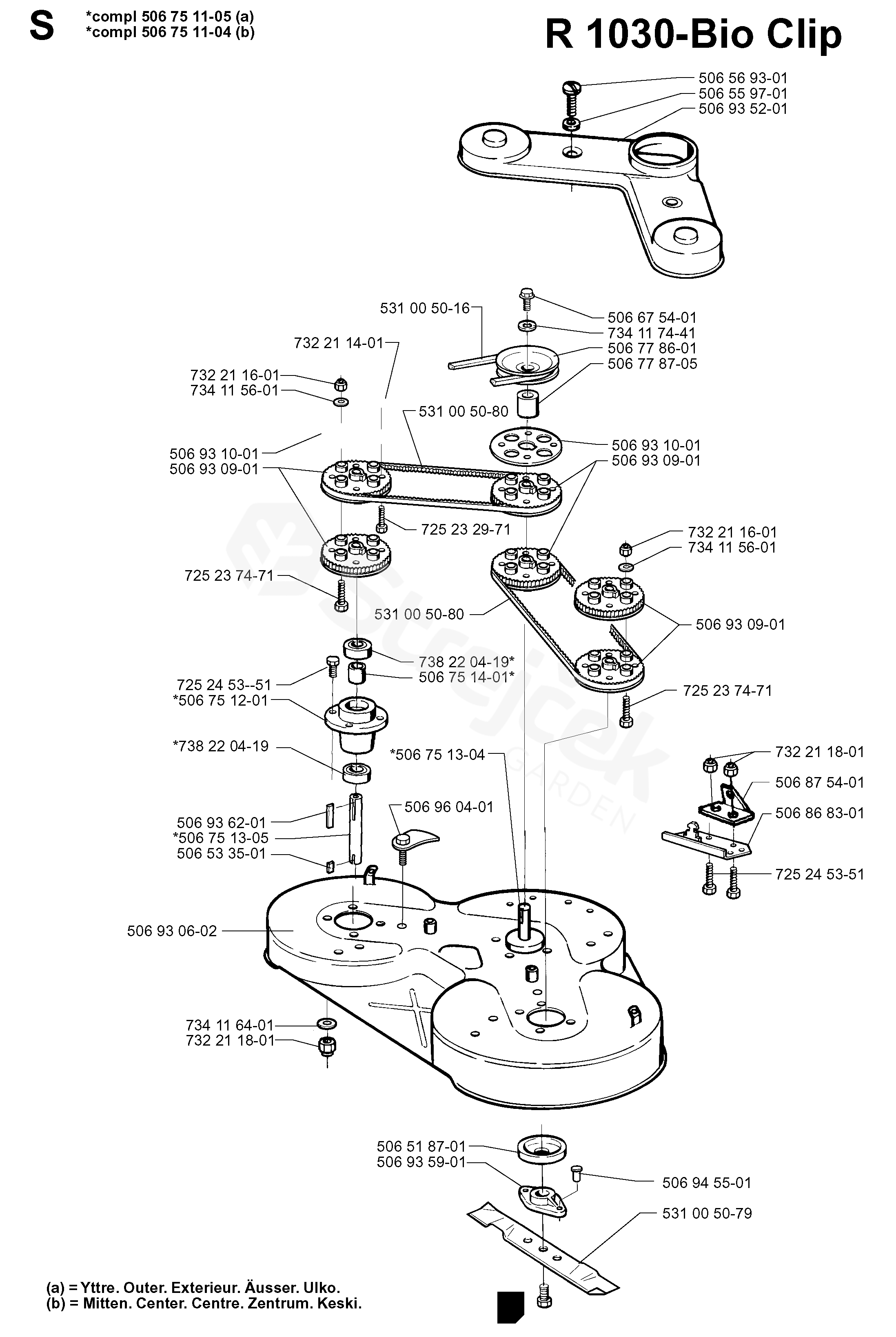

103CM CUTTING DECK
Back to
RIDER 1200
RIDER 1200, 1997-05
103CM CUTTING DECK
RIDER 1200
RIDER 1200, 1997-05
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
RIDER 1200, 1997-05
506518701
DUST COVER
506518701
506533501
PARALELNÍ KLÍN
506533501
506559701
WASHER
506559701
506569301
SCREW
506569301
506675401
SCREW EHHFM
506675401
506751104
BLADE HOUSING ASSY
MITTEN.
506751104
506751105
BLADE HOUSING ASSY (A) = YTTRE.
YTTRE.
506751105
506751201
BEARING HOUSING
506751201
506751304
SHAFT
506751304
506751305
SHAFT
506751305
506751401
SPACER
506751401
506778601
PULLEY
506778601
506778705
SPACER
506778705
506868301
BRACKET
506868301
506875401
BRACKET
506875401
506930602
DECK SHELL ASSY
506930602
506930901
KUGGREMSKIVA
506930901
506931001
FLANGE
506931001
506935201
KUGGREMKÅPA
506935201
506935901
BRACKET
506935901
506936201
WEDGE
506936201
506945501
PIN RETAINING SCREW
506945501
506960401
ECCENTRIC
506960401
531005016
BELT
531005016
531005079
BLADE
531005079
531005080
BELT
531005080
725232971
SCREW EHHM
725232971
725237471
SCREW EHHM
725237471
725245351
SCREW EHHM
725245351
732211401
LOCK NUT
732211401
732211601
LOCK NUT
732211601
732211801
LOCK NUT
732211801
734115601
SPRING
734115601
734116401
PODLOŽKA
734116401
734117441
PODLOŽKA
734117441
738220419
BALL BEARING
738220419
