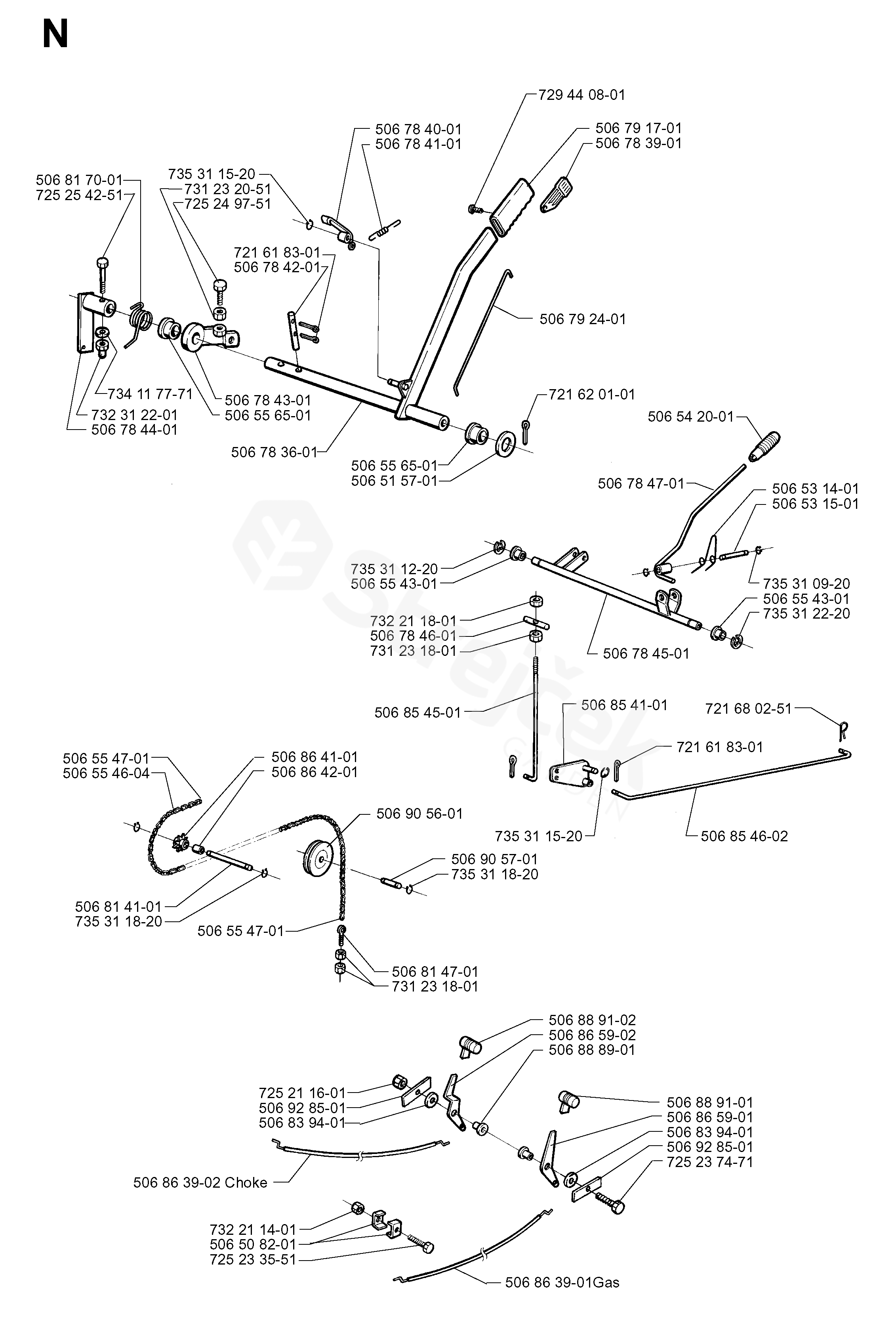

Spare parts > Husqvarna > RIDERS > RIDER 1200 RIDER 1200, 1997-05 > CONTROLS
Back to
CONTROLS
RIDER 1200 RIDER 1200, 1997-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RIDER 1200, 1997-05
506508201 CLIP 506508201
506515701 WASHER 506515701
506531401 SPRING 506531401
506531501 SHAFT 506531501
506542001 HANDLE 506542001
506554301 BEARING 506554301
506554604 CHAIN 506554604
506554701 LINKAGE 506554701
506556501 BEARING 506556501
506783601 LIFT LEVER CMPL 506783601
506783901 BUTTON 506783901
506784001 HITCH 506784001
506784101 SPRING 506784101
506784201 PEN 506784201
506784301 LINK ASSY 506784301
506784401 LIFTING ARM 506784401
506784501 REGLAGEARM KPL. 506784501
506784601 PEN 506784601
506784701 REGLERSPAK KPL. 506784701
506791701 HANDLE 506791701
506792401 THREAD 506792401
506814101 AXLE 506814101
506814701 SCREW 506814701
506817001 SPRING 506817001
506839401 PRUŽNÁ PODLOŽKA 506839401
506854101 LINK ASSY 506854101
506854501 HEIGHT ROD 506854501
506854602 HEIGHT ROD 506854602
506863901 THROTTLE CABLE ASSY
GAS 		506863901
506863902 CHOKEWIRE KPL. CHOKE
CHOKE 		506863902
506864101 KEDJEHJUL KPL. 506864101
506864201 BRONSBUSSNING 506864201
506865901 CONTROL 506865901
506865902 CONTROL 506865902
506888901 BUSHING 506888901
506889101 KNOB 506889101
506889102 KNOB 506889102
506905601 OFFSET PULLEY 506905601
506905701 SHAFT 506905701
506928501 LOCKWASHER 506928501
721618301 SPLIT PIN 721618301
721620101 SPLIT PIN 721620101
721680251 SPRING COTTER 721680251
725211601 725211601
725233551 SCREW EHHM 725233551
725237471 SCREW EHHM 725237471
725249751 SCREW 725249751
725254251 SCREW EHHM 725254251
729440801 SCREW SLCSRT 729440801
731231801 HEXAGON LOCKING NUT 731231801
731232051 HEXAGON NUT 731232051
732211401 LOCK NUT 732211401
732211801 LOCK NUT 732211801
732312201 CAP NUT 732312201
734117771 PODLOŽKA 734117771
735310920 E-CLIP 735310920
735311220 E-CLIP 735311220
735311520 E-CLIP 735311520
735311820 E-CLIP 735311820
735312220 E-CLIP 735312220
