ST S p A
>
Lawn Mower
>
HE 33 HE 33 (2007)
>
Electric Walkbehind
Back to
HE 33
HE 33 (2007)
Electric Walkbehind
HE 33
HE 33 (2007)

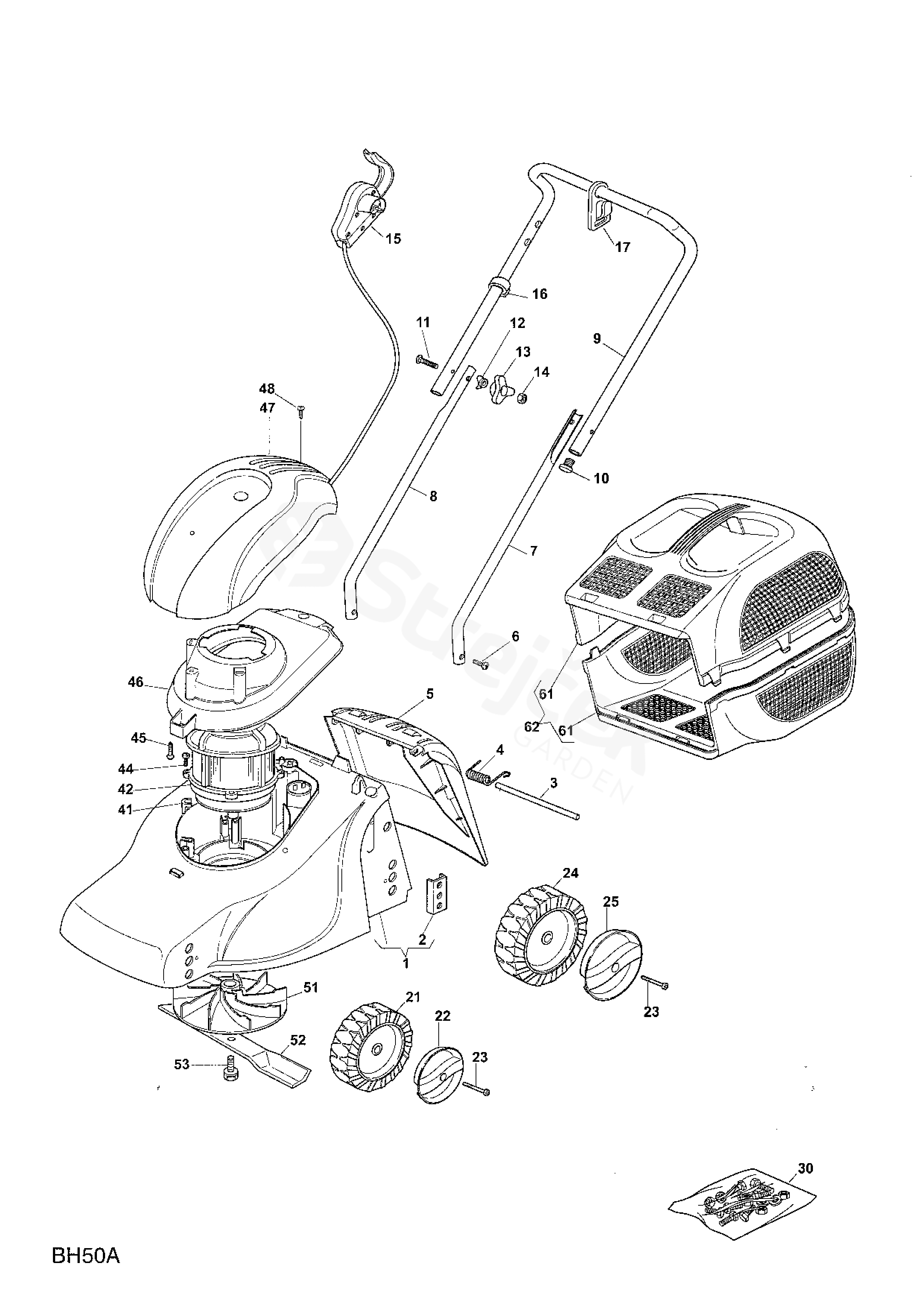

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
HE 33 (2007)
1
Red Deck
Inkl. pos 2 _ HE33
381001560/0
2
Support, Wheel
HE33
322785087/1
3
Pin
HE33
122512530/0
4
Spring
HE33
122450250/0
5
Stone Guard, Black
HE33
322600055/1
6
Screw
HE33
112728450/0
7
Left Lower Handle
HE33
381006940/1
8
Right Handle, Lower Part
HE33
381006939/1
9
Handle, Upper Part
HE33
381006941/4
10
Polyethylene Push Road D=20inch
HE33
118566112/0
11
Screw
HE33
112819120/0
12
Washer
HE33
122680006/1
13
Black Knob
HE33
122399900/0
14
Nut
HE33
112293200/0
15
Dead Hand Switch CE
HE33
381600500/1
16
Clamp
HE33
122192000/1
17
Fairlead
HE33
322195101/4
21
Wheel
HE33
122686083/0
22
Hub Cap Red
HE33
322110437/0
23
Pin
HE33
122524337/0
24
Wheel
HE33
122686085/0
25
Hub Cap Red
HE33
322110450/0
30
Outfit, Screws
HE33
381008669/0
41
Spacer
HE33
122167700/0
42
Electric Motor 1100W
LEO _ HE33
118563650/0
44
Screw
HE33
12735410/0
45
Screw
HE33
112728450/0
46
Support, Cover
HE33
322055050/2
47
Cover, Black
HE33
122055049/1
48
Screw
HE33
112728680/0
51
Hub Fan
HE33
122465602/0
52
Blade Standard
HE33
181004141/0
53
Screw
HE33
381004352/0
61
Grass-Box, Upper/Lower Part
HE33 - For complete grass-box, order 2pcs
122486048/0
62
Rigid Grassbox
Inkl. pos 61 _ HE33
97350000/0
