Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER 220 AC 220 AC, 2013-06 > CHARGING STATION
Back to

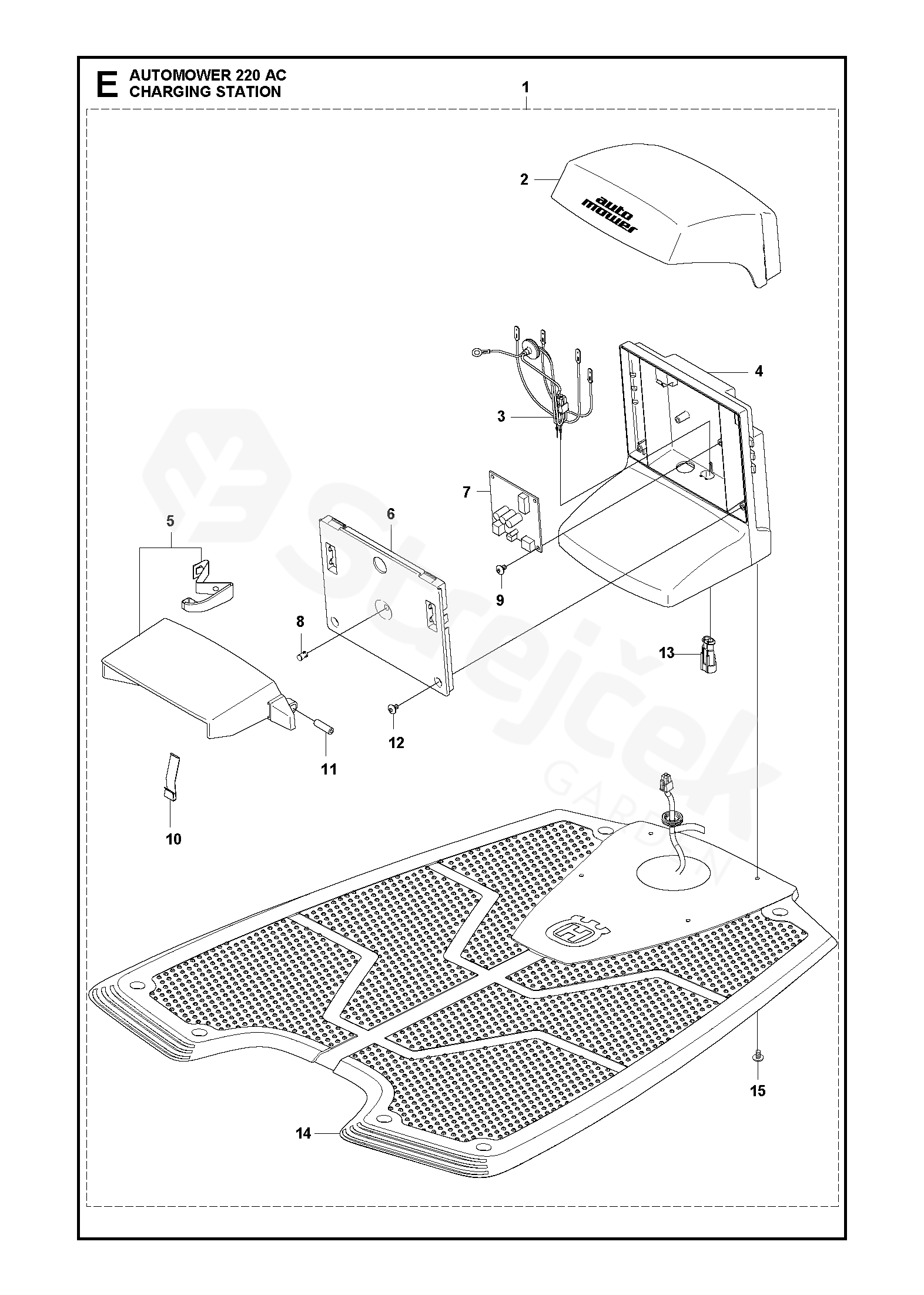

CHARGING STATION
AUTOMOWER 220 AC 220 AC, 2013-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 220 AC, 2013-06
1 CHARGING STATION
(CH) 		574902004
2 COVER 535124702
3 WIRING ASSY
(CH) 		544983810
4 BODY 574827501
5 CONSOLE ASSY 510059702
6 HUB CAP 535124401
7 PRINTED CIRCUIT ASSY
(CH) 		578788601
8 DIODE LENS 535128702
9 SCREW 575543310
10 SPRING PLATE 535128601
11 PEN 535125001
12 SCREW 575543314
13 CONTACT HOUSING 535128501
14 CHARGING PLATE 575231601
15 SCREW 575543314
