Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER 315 AUTOMOWER 315, 2017-01 > CENTER CONSOL
Back to

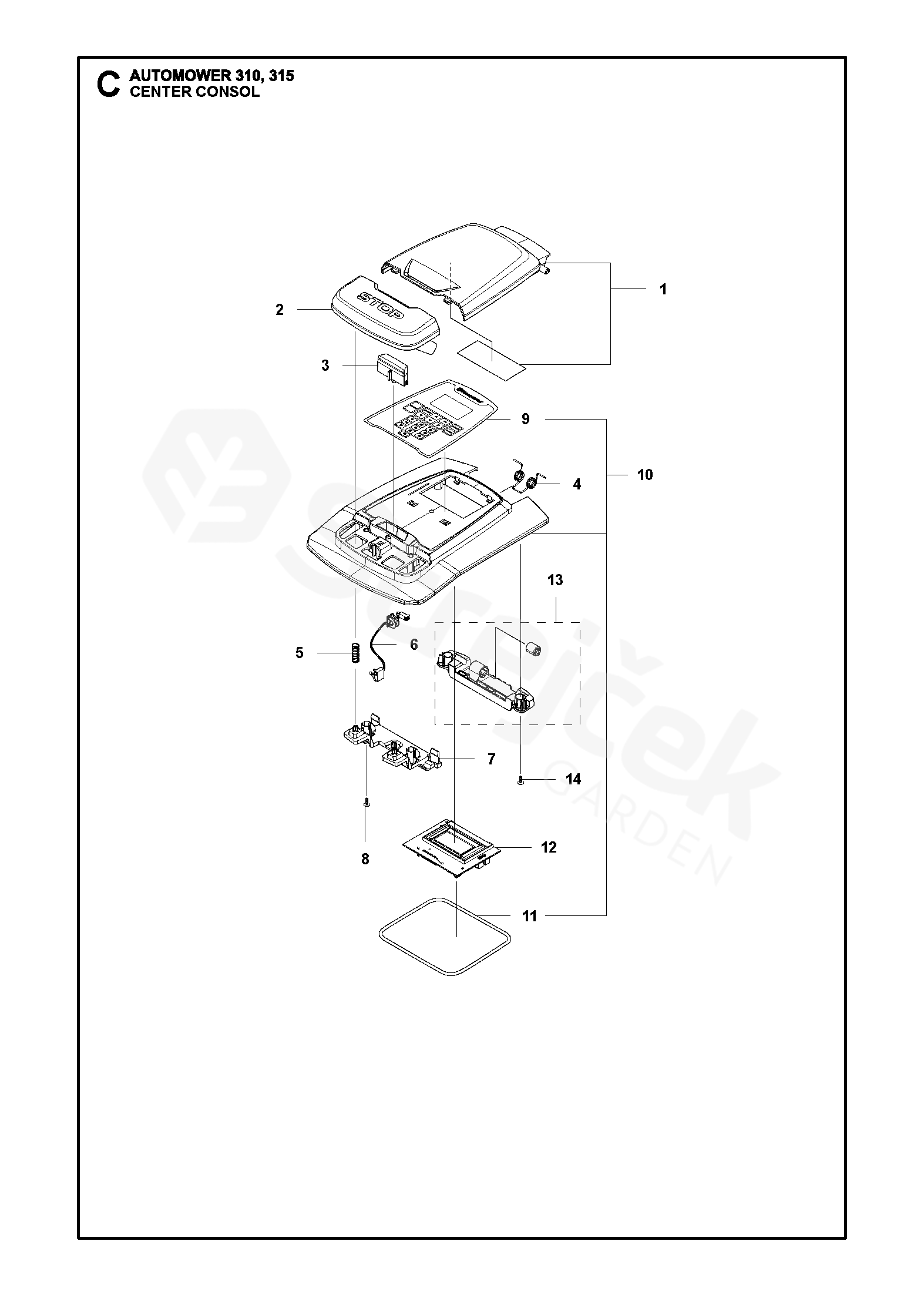

CENTER CONSOL
AUTOMOWER 315 AUTOMOWER 315, 2017-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AUTOMOWER 315, 2017-01
1 HATCH KIT
Hatch KIT 		587651301
2 BUTTON
Stop Button 		585275601
3 LOCK
Lock 		585275901
4 TORSION SPRING
Torsion Spring 		585255401
5 SPRING
Spring 		576242201
6 SWITCH
Switch 		574480302
7 SUPPORT
Support Rear 		585275701
8 SCREW
Screw 		575543314
9 KEYBOARD "Keyboard 2.8"" Display 315"
"Keyboard 2.8"" Display 315" 		584974601
10 COVER KIT "2.8"" Display 315"
"Cover KIT 2.8"" Display 315" 		587449002
11 SEALING STRIP
Sealing Strip (1 pcs, ¯5 mm) 		574874708
12 PRINTED CIRCUIT ASSY "MMI 2.8"" Display 315"
"PCBA MMI 2.8"" Display 315" 		588641801
13 SUPPORT KIT
Support KIT 		501106101
14 SCREW
Screw 		575543314
