Spare parts > ST S p A > Lawn Mower > VARIOLUX 460 VARIOLUX 460 (2009) > Electric Motor/Blade
Back to

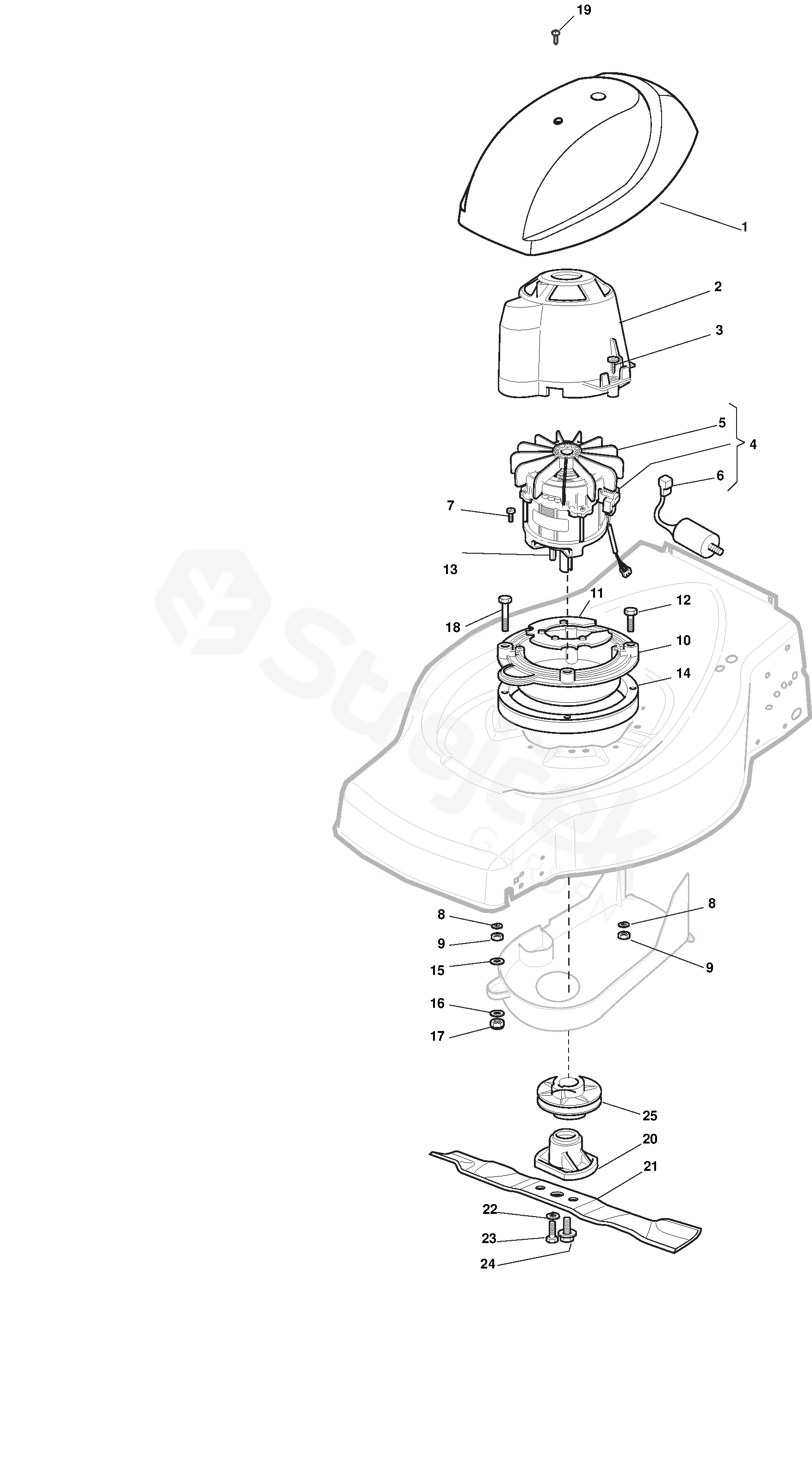

Electric Motor/Blade
VARIOLUX 460 VARIOLUX 460 (2009)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VARIOLUX 460 (2009)
1 Cover, Black 122055058/0
2 Cover Support
From 01-September-2013 		322785210/0
3 Screw 112728710/0
4 Electric Motor 1800W
230V (1800W);From 01-September-2009 		118563641/0
5 Fan Motor Atb 118740054/0
6 Condenser 118222039/0
7 Screw 112735410/0
8 Grower 112583500/0
9 Nut 112293200/0
10 Flange
From 01-September-2007 		122207211/3
11 Ventilation Screen
From 01-September-2007 		122720360/1
12 Screw 112691800/0
13 Key 112139440/0
14 Spacer
From 01-September-2006 		322170960/1
15 Washer
To 31-August-2006 		122671653/0
16 Washer 112521350/0
17 Nut 112155000/0
18 Screw 112692000/0
19 Screw 112728680/0
20 Hub
From 01-September-2007 		122463186/2
21 Mulching Blade
From 01-September-2007 		181004365/3
22 Grower 112583500/0
23 Screw 112793102/0
24 Screw
From 01-September-2010 		381004352/1
25 Pulley
From 01-September-2015 		322601911/2
