Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER SOLAR HYBRID SOLAR HYBRID , 2012-01 > CHASSIS UPPER
Back to

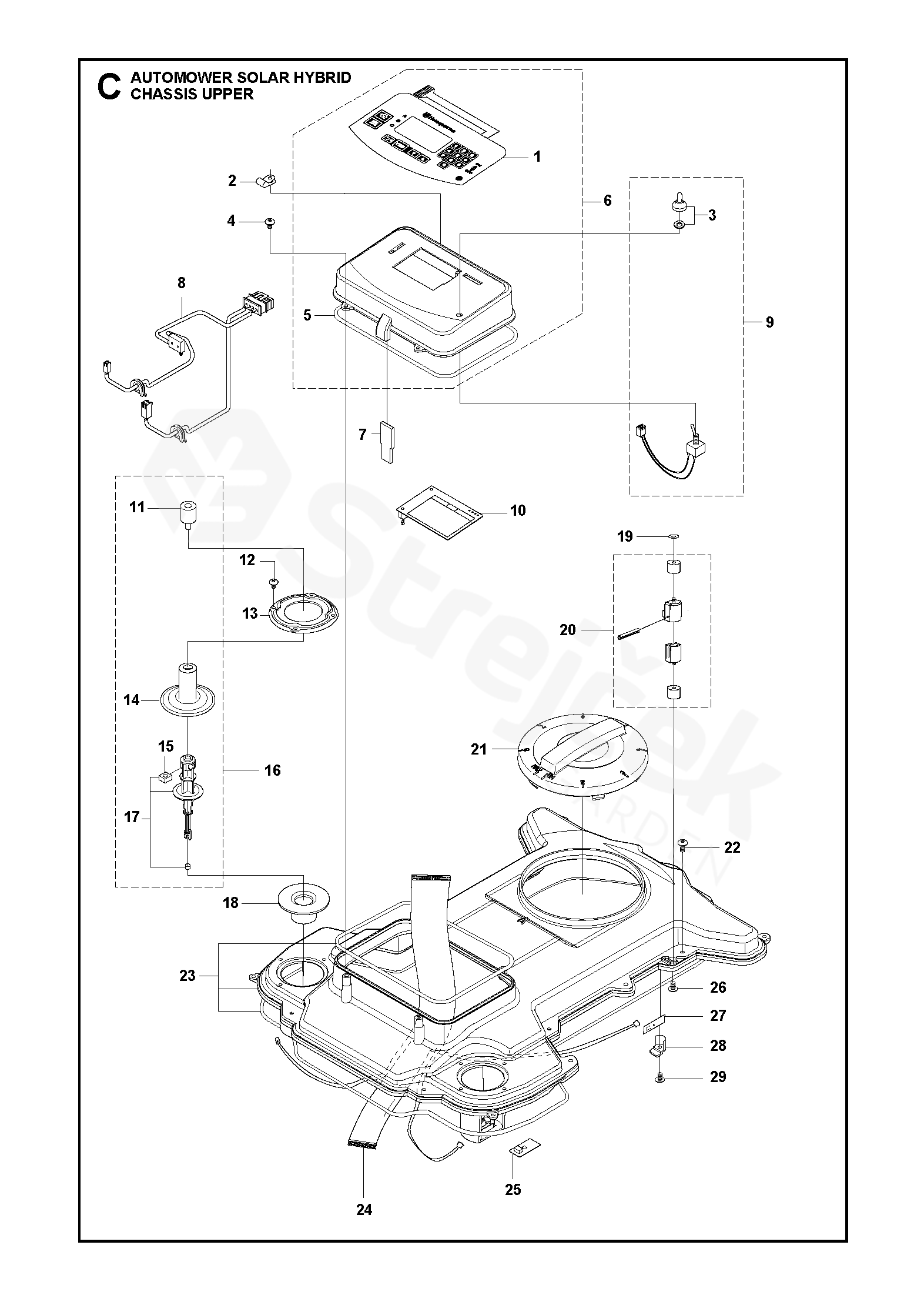

CHASSIS UPPER
AUTOMOWER SOLAR HYBRID SOLAR HYBRID , 2012-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SOLAR HYBRID , 2012-01
1 KEYBOARD 544900101
2 CABLE CLAMP 577527201
3 HUB CAP 535101701
4 SCREW ITXPANT 574450101
5 SEALING STRIP 575986301
6 DISPLAY COVER 575944204
7 FILTER 535144701
8 CABLE 505457903
9 MAIN SWITCH 535123901
10 DISPLAY 540060303
11 DAMPER 577670601
12 SCREW 575543314
13 RING FASTENER 505174301
14 RUBBER GAITERS 506495301
15 ANTIVIBRATION ELEMENT 503226601
16 COLUMN 577598403
17 COLUMN 579248801
18 DEFLECTION LIMITER 535143201
19 LOCKWASHER 510747000
20 SENSOR 544141501
21 STEERING WHEEL 535122201
22 SCREW ITXPANT 574450101
23 CHASSIS 575943801
24 WIRING 544126901
25 PRINTED CIRCUIT ASSY 578789001
26 SCREW 535076002
27 PRINTED CIRCUIT ASSY 578789001
28 BRACKET 535127901
29 SCREW 575543314
