Spare parts > ST S p A > Lawn Mower > CAL 480 TR CAL 480 TR (2006) > Electric Motor/Blade
Back to

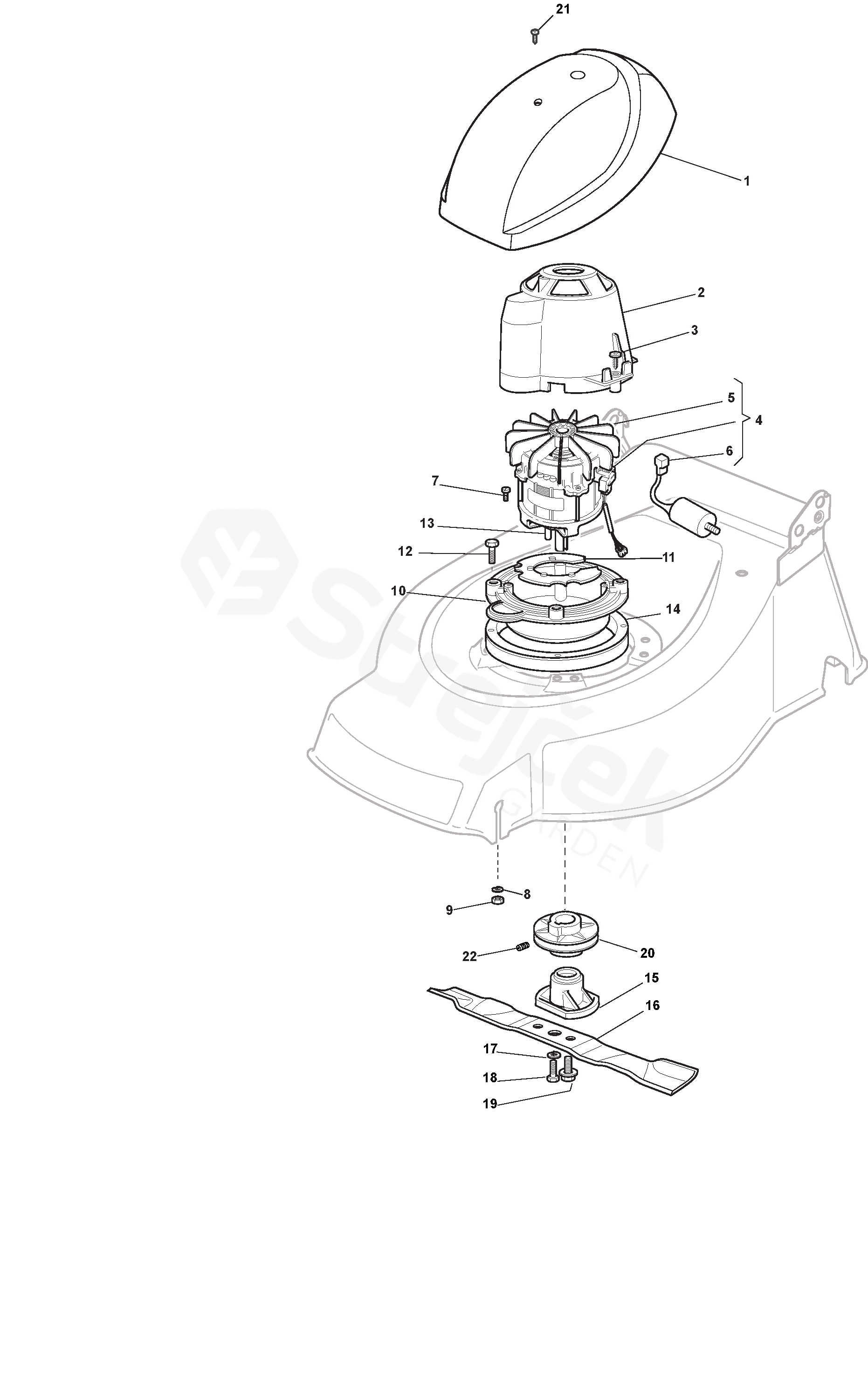

Electric Motor/Blade
CAL 480 TR CAL 480 TR (2006)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CAL 480 TR (2006)
1 Cover, Black 122055058/0
2 Cover Support 322785210/0
3 Screw 112728710/0
4 Motor Imbei
230V (1800W) 		118563070/1
5 Fan 118740049/0
6 Condenser 118222039/0
7 Screw 112735410/0
9 Nut 112293200/0
10 Flange 122207211/3
11 Ventilation Screen 122720360/1
12 Screw 112691800/0
13 Key 112139440/0
14 Spacer 322170960/1
15 Hub 122463186/2
16 Left Mulching, Blade 181004346/3
17 Grower 112583500/0
18 Screw 112793101/0
19 Screw 381004352/0
20 Pulley 122601911/0
21 Screw 112728680/0
22 Grub Screw 112713801/0
