ST S p A
>
Front mowers
>
MOWER DECK 95 COMBI MOWER DECK 95 COMBI (2008) [13-2963-92]
>

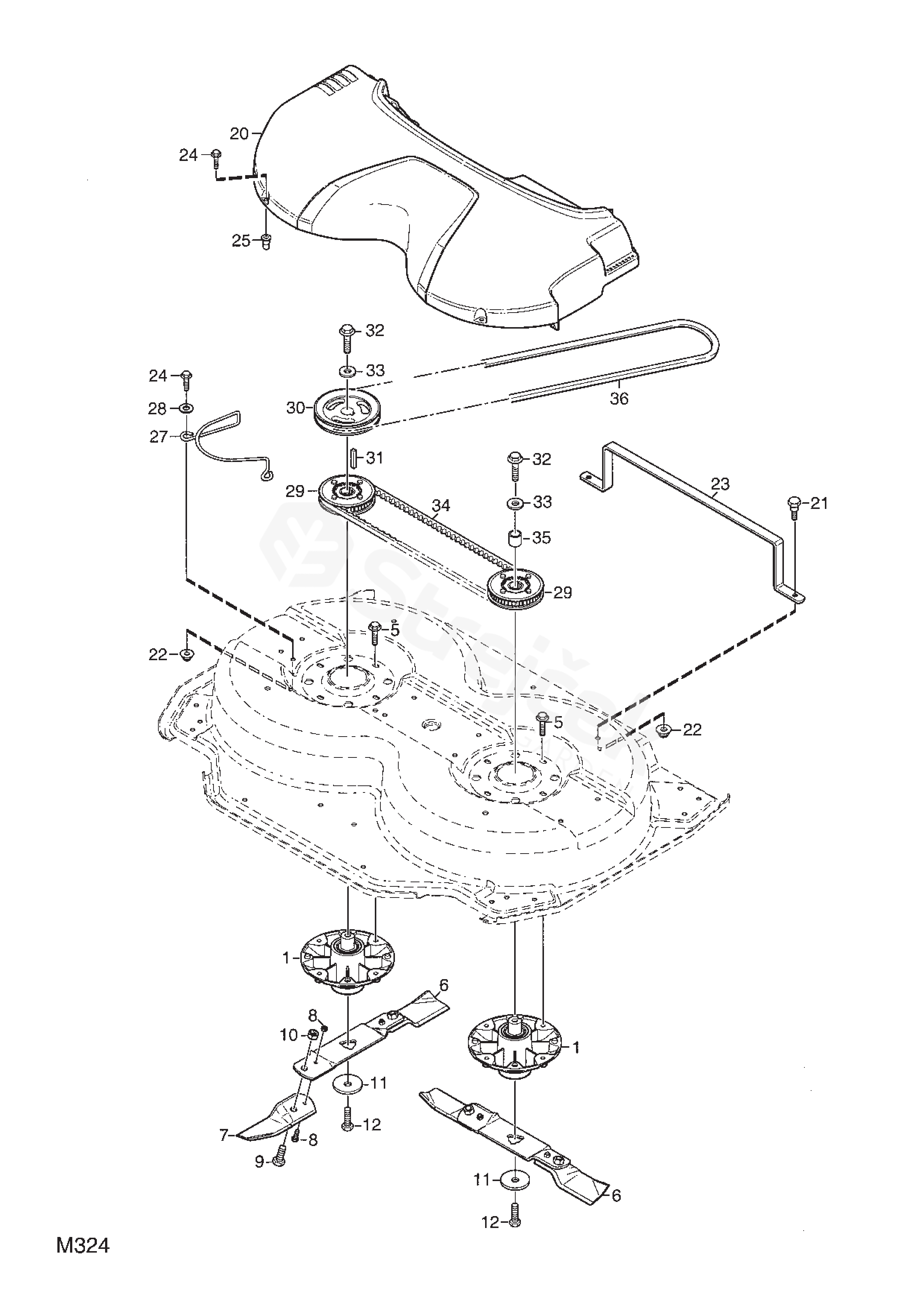

Mower Deck 95 Combi Transmission
Back to
MOWER DECK 95 COMBI
MOWER DECK 95 COMBI (2008) [13-2963-92]
Mower Deck 95 Combi Transmission
MOWER DECK 95 COMBI
MOWER DECK 95 COMBI (2008) [13-2963-92]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MOWER DECK 95 COMBI (2008) [13-2963-92]
1
Bearing Box Assy
1134-5831-01
6
Blade Assy (95C)
Pos 7 incl.
1134-6240-02
7
Blade Kit Assy
Pos 8 - 10 incl.
1134-9119-01
8
Shear Bolt Kit
1134-9054-01
9
Bolt
7/16" UNF
1134-6311-01
10
Nut
7/16" UNF
1134-6312-01
11
Washer
1134-6211-01
12
Screw
9997-1060-12
20
Transmission Cover-Black
1134-6280-02
21
Shoulder screw
1134-0240-01
22
Nut
9739-0831-22
23
Support
1134-6423-01
24
Screw
9945-0825-16
25
Nut
1134-5595-01
27
Belt Guide
1134-6429-01
28
Washer
9699-0090-02
29
Toothed Pulley Assy
1134-6287-01
30
Belt Pulley
Ø = 161 mm
1134-6202-01
31
Key
9600-0168-01
33
Washer
1134-5406-01
34
Toothed Belt
9585-0162-01
35
Spacer
1134-5400-04
36
Drive Belt
9585-0127-01
