Spare parts > ST S p A > Front mowers > DECK RM125H COMBI DECK RM125H COMBI (2010) [13-7822-22] > Transmission
Back to

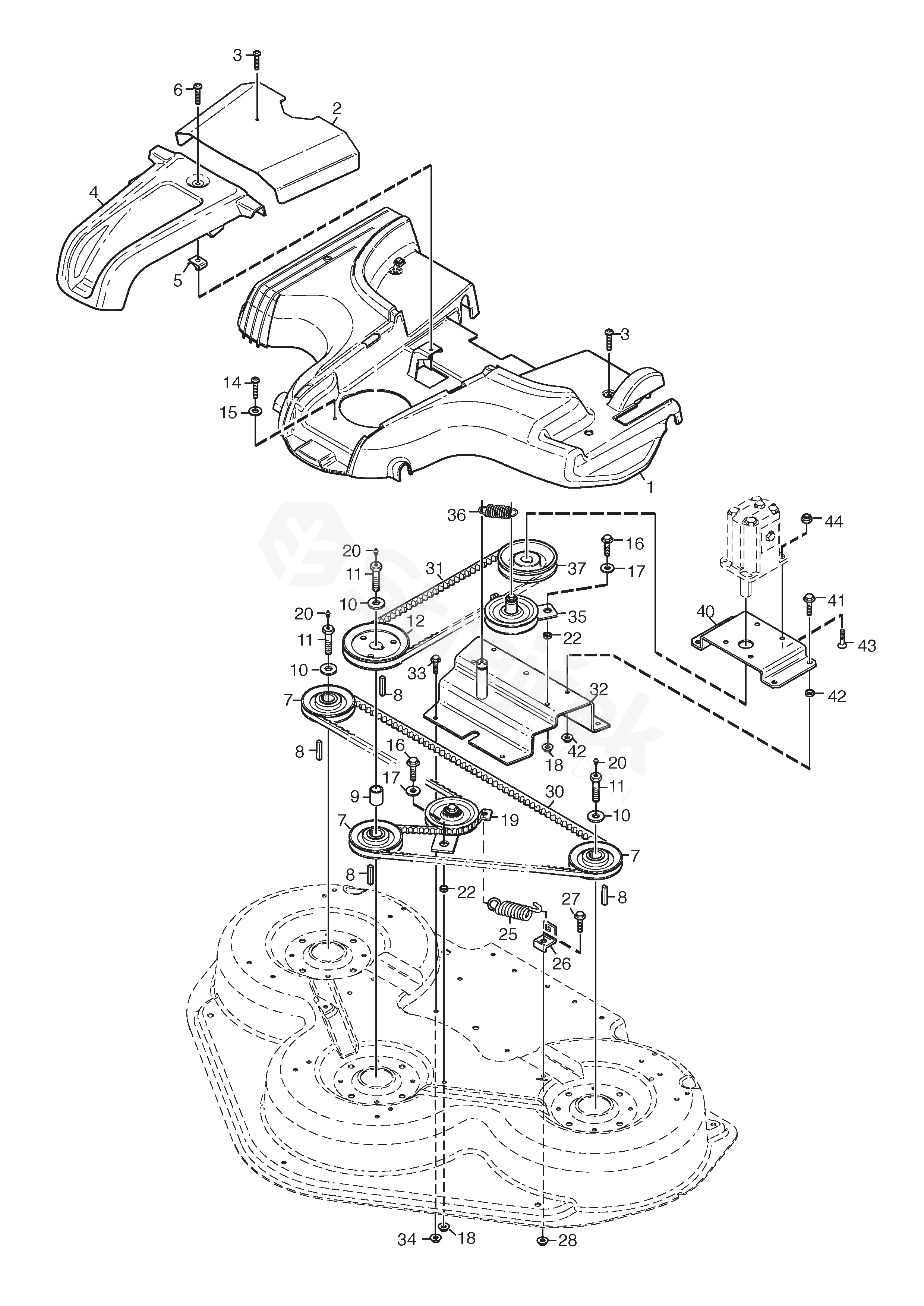

Transmission
DECK RM125H COMBI DECK RM125H COMBI (2010) [13-7822-22]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DECK RM125H COMBI (2010) [13-7822-22]
1 Transmission Cover 1134-7596-01
2 Transmission Cover 1134-7870-01
3 Screw 9893-0616-16
4 Cover 1134-5987-01
5 Clips 1134-4176-01
6 Screw 9893-0616-16
7 Belt Pulley 1134-5404-01
8 Key
6 x 6 x 25 mm 		9600-0171-01
9 Spacer
L = 20 mm 		1134-5400-03
10 Washer 1134-5406-01
11 Screw 1134-7517-01
12 Belt Pulley
Ø = 150 mm 		1134-7813-01
14 Screw 9893-0616-16
15 Washer 9699-0060-02
16 Screw 9959-0816-16
17 Washer 9699-0109-02
18 Nut 9739-0831-22
19 Tension Roller Assy 1134-7611-01
20 Grease Dispenser 9501-0500-00
22 Spacer 1134-7618-01
25 Spring 1134-0327-00
26 Spring 1134-5415-01
27 Screw 9959-0816-16
28 Nut 9739-0831-22
30 Drive Belt
9585-0142-01 		1134-9087-01
31 V-Belt 9585-0186-01
32 Plate Assy 1134-7868-01
33 Screw 9959-0820-16
34 Nut 9739-0831-22
35 Tension Roller 1134-7610-01
36 Spring 1134-7619-01
37 Belt Pulley 1134-7871-01
40 Engine Bracket 1134-7869-01
41 Screw 9945-0825-16
42 Spacer 1134-7618-01
43 Screw 9924-0830-16
44 Nut 9747-0831-02
